Technical Data Sheet
●	Stop Band Frequency	1980～2010MHz
●	Stop Band Attenuation	≥50dB
●	Pass Band Frequency	DC～1950MHz & 2040～5700MHz
●	Pass Band Insertion Loss	≤1.3dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 ohms
●	Power Handling	≤50W
●	Connectors	SMA-Female
●	Surface Finish	Black Paint
●	Net Weight	0.33 KG

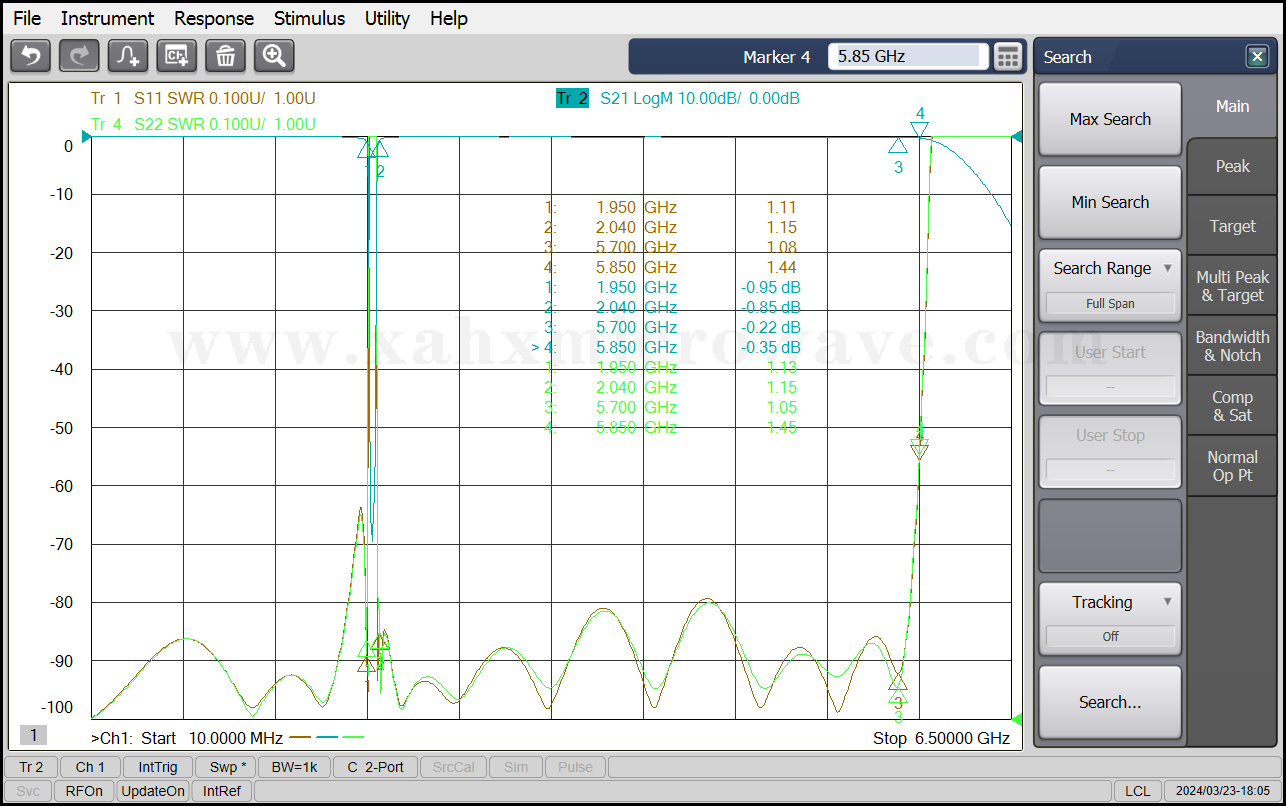

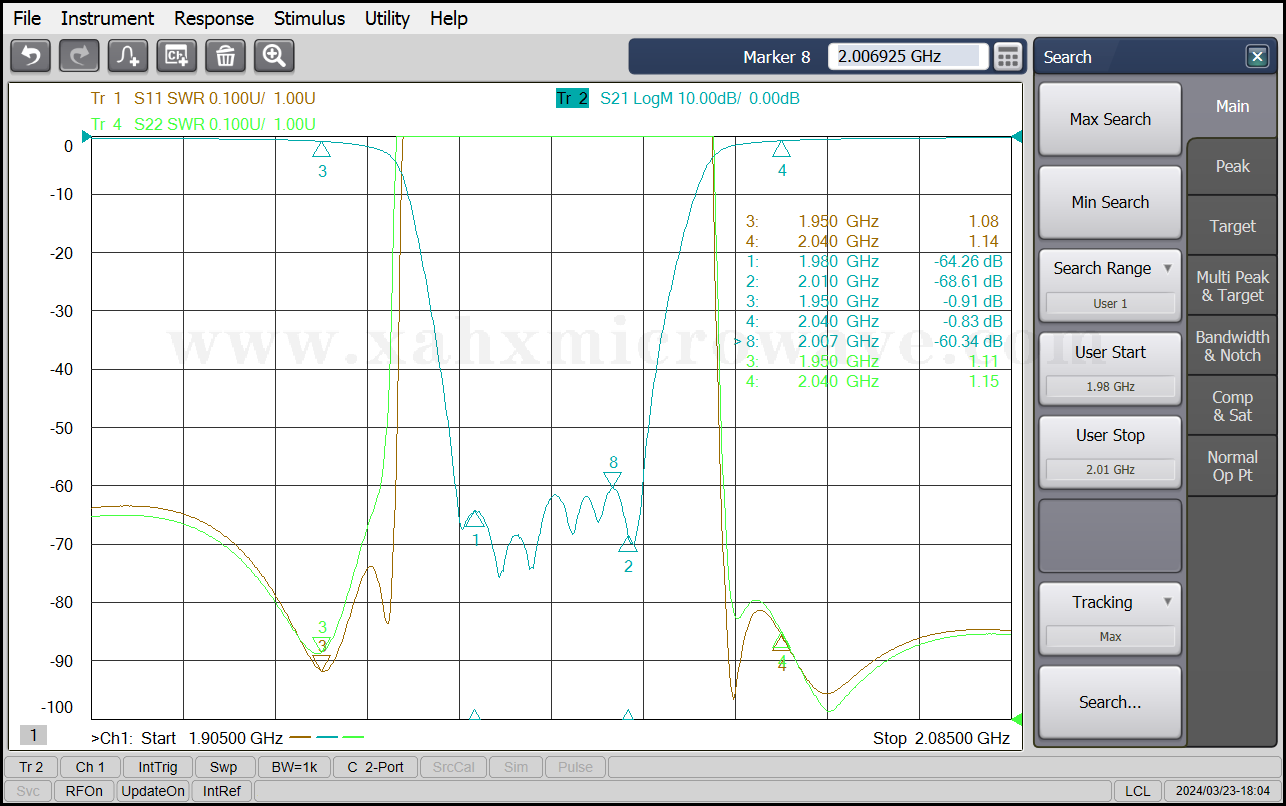

Test Curve
