Technical Data Sheet
●	Stop Band Frequency	824 ~ 930MHz
●	Stop Band Attenuation	≥50dB
●	Pass Band Frequency	DC ~ 774MHz , 980 ~ 2500MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.5:1 @ 350 ~ 774MHz , 980 ~ 2500MHz
		≤1.8:1 @ DC ~ 350MHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

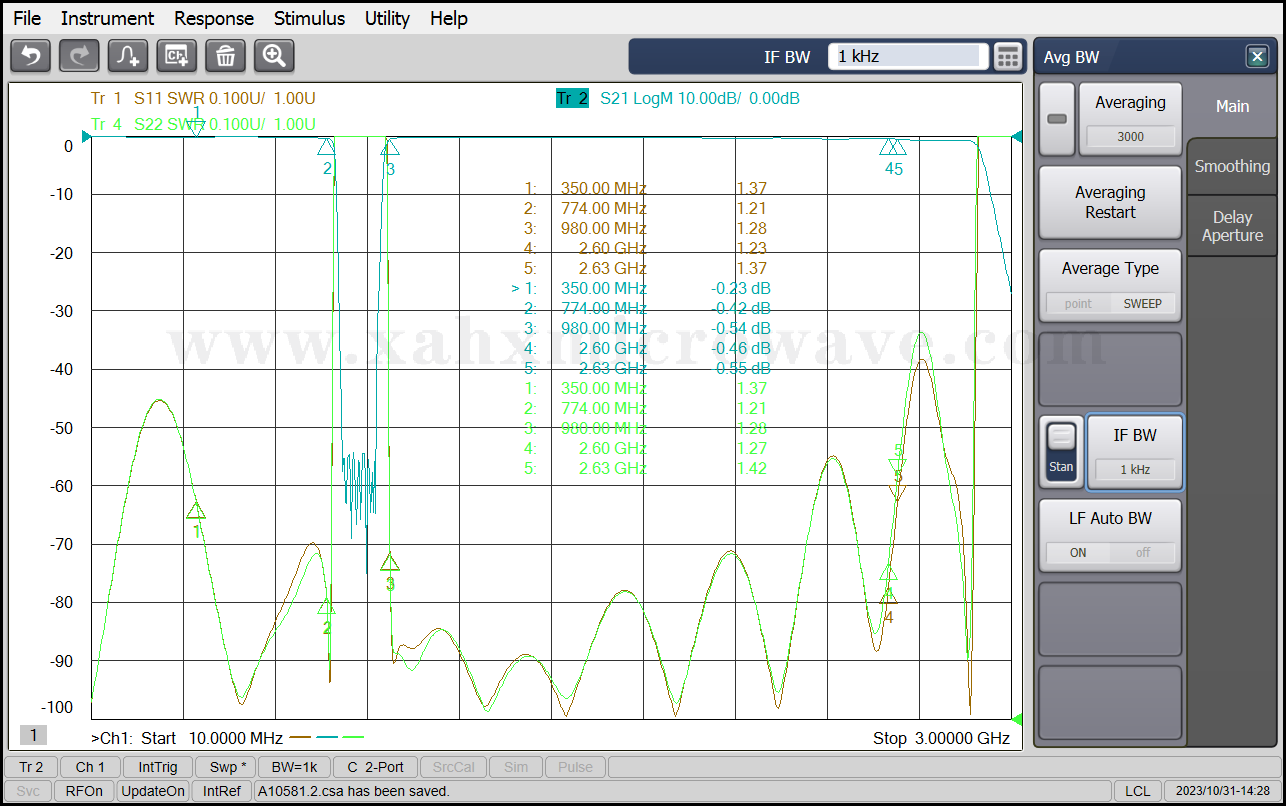

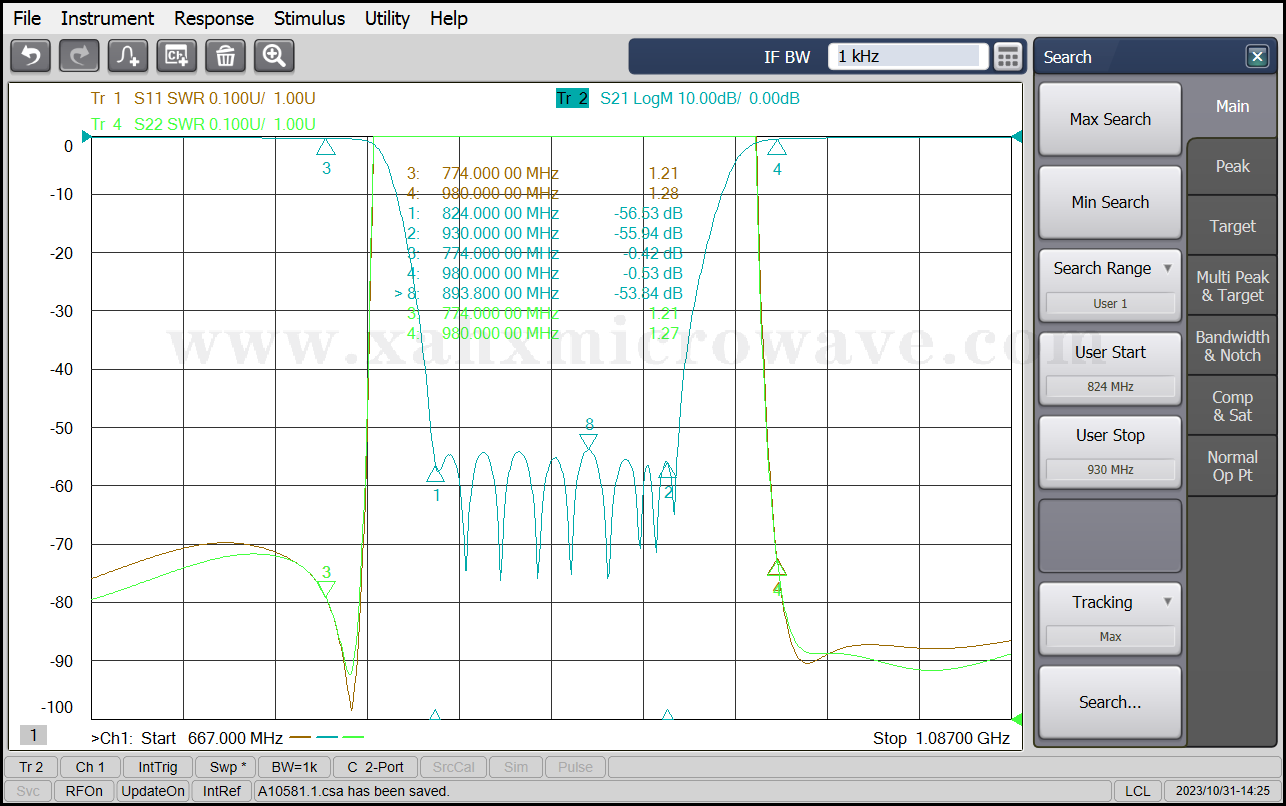

Test Curve
