Technical Data Sheet
●	Stop Band Frequency	4400 ~ 5150MHz
●	Stop Band Attenuation	≥50dB
●	Pass Band Frequency	DC ~ 4100MHz , 5400 ~ 10500MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.7:1
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-10℃ ~ +50℃

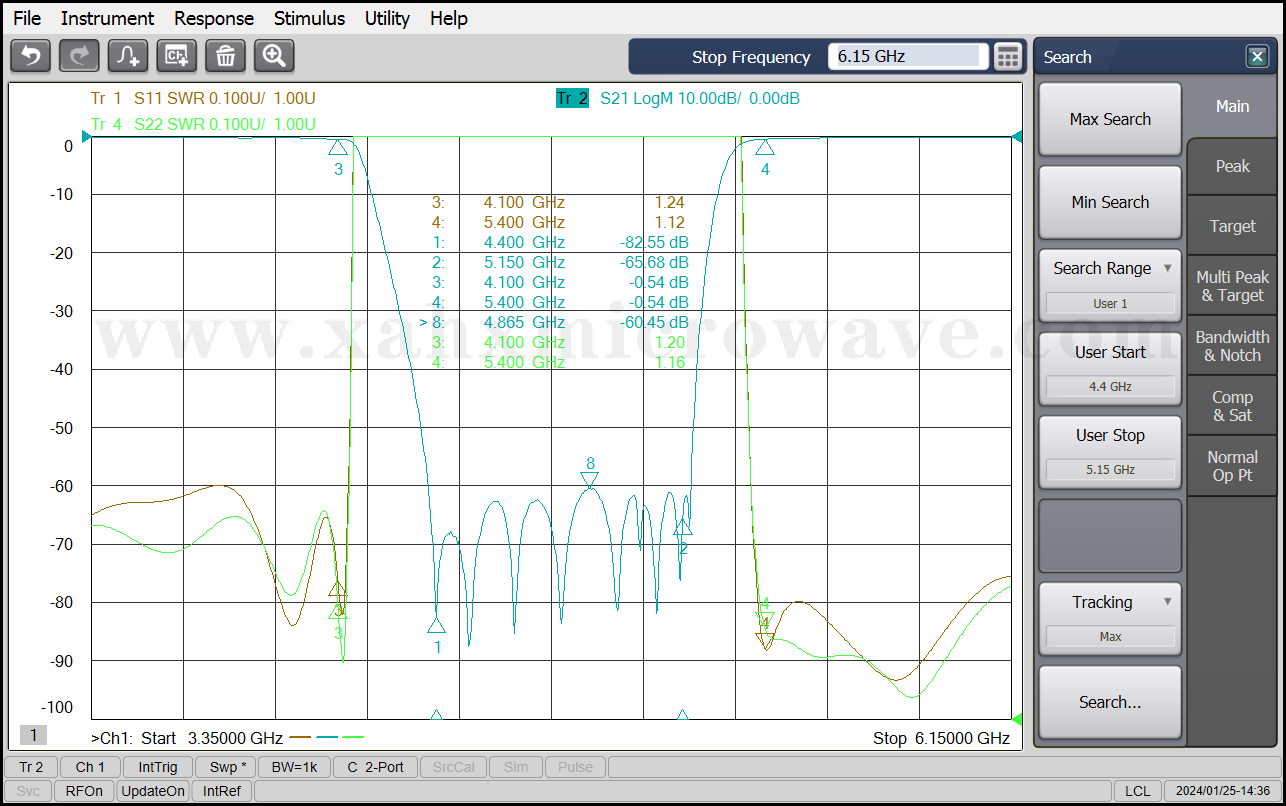

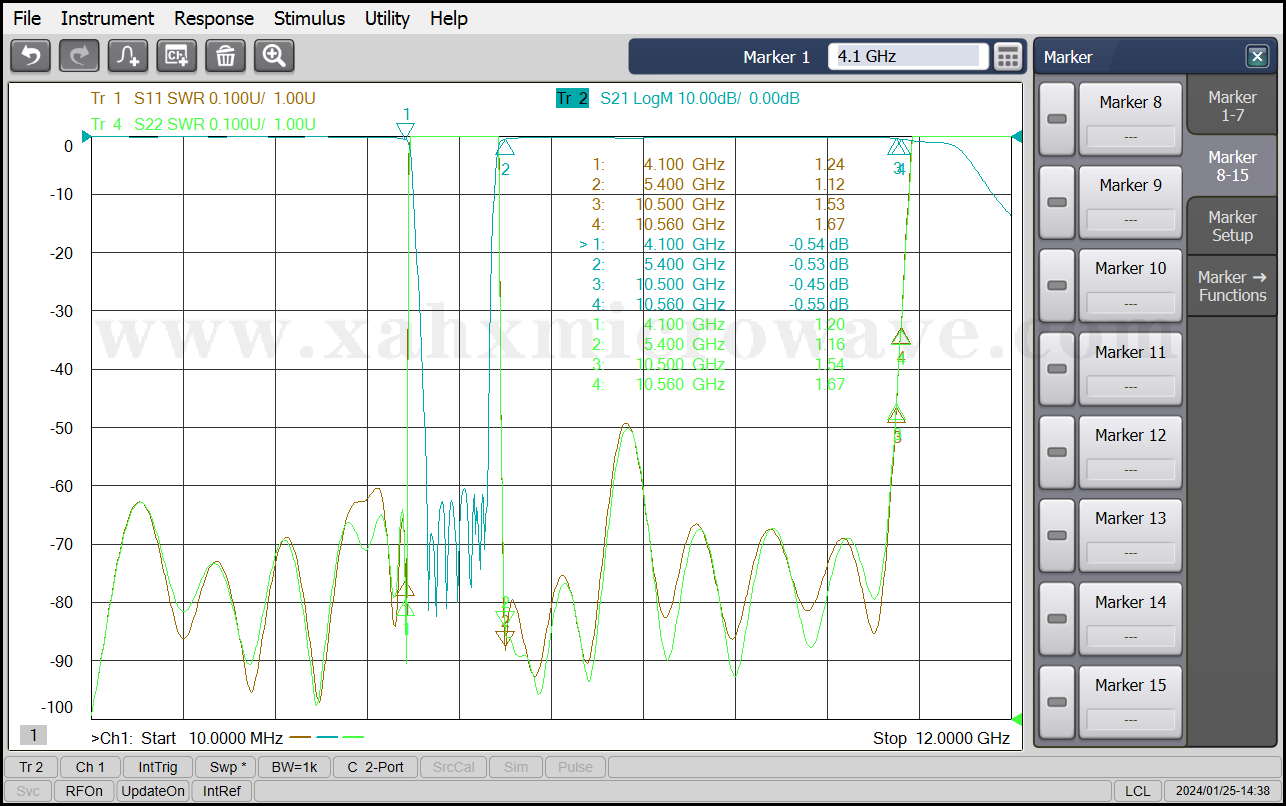

Test Curve
