Technical Data Sheet
●	Stop Band Center Frequency	5700MHz
●	Stop Band Frequency	5670 ~ 5730MHz
●	Stop Band Attenuation	≥55dB
●	Pass Band Frequency	DC ~ 5550MHz , 5850 ~ 11600MHz
●	Pass Band Insertion Loss	≤1.8dB
●	Pass Band VSWR	≤1.7:1
●	Impedance	50 Ohms
●	Power Handling	50W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

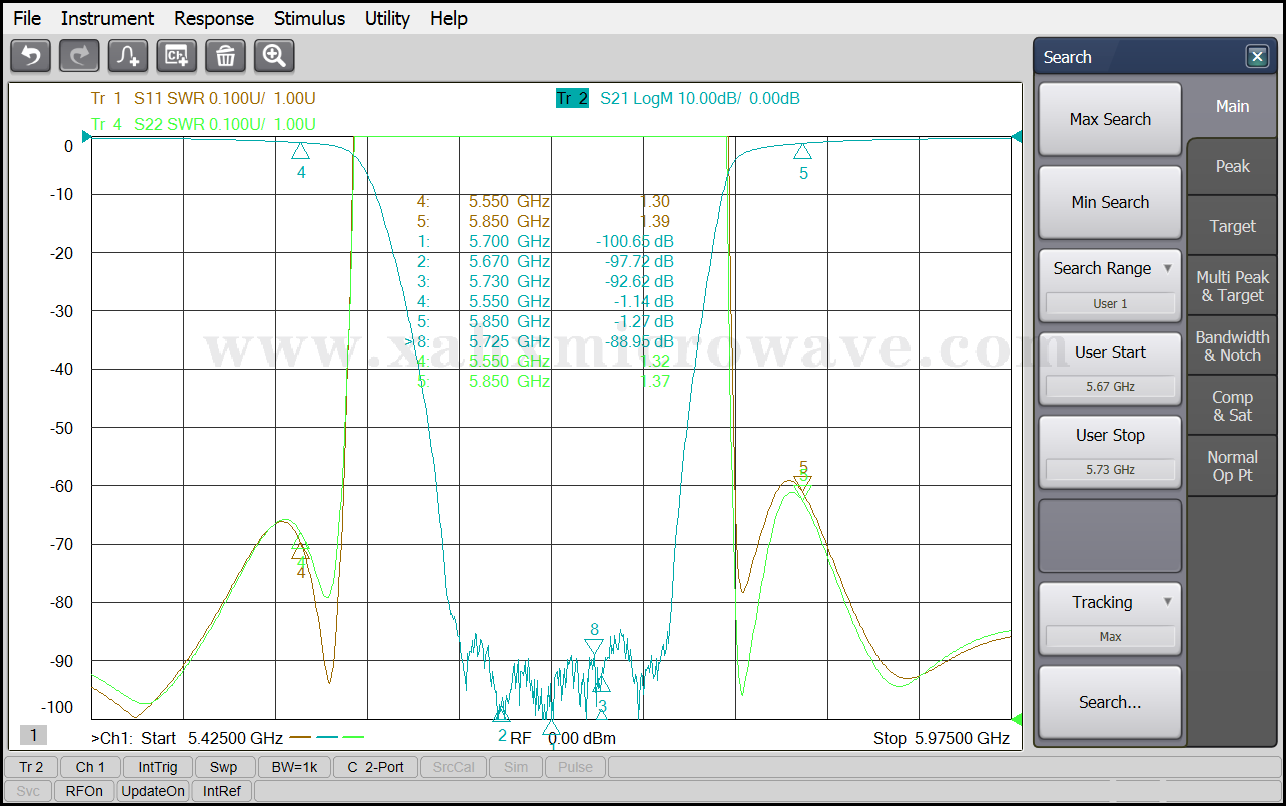

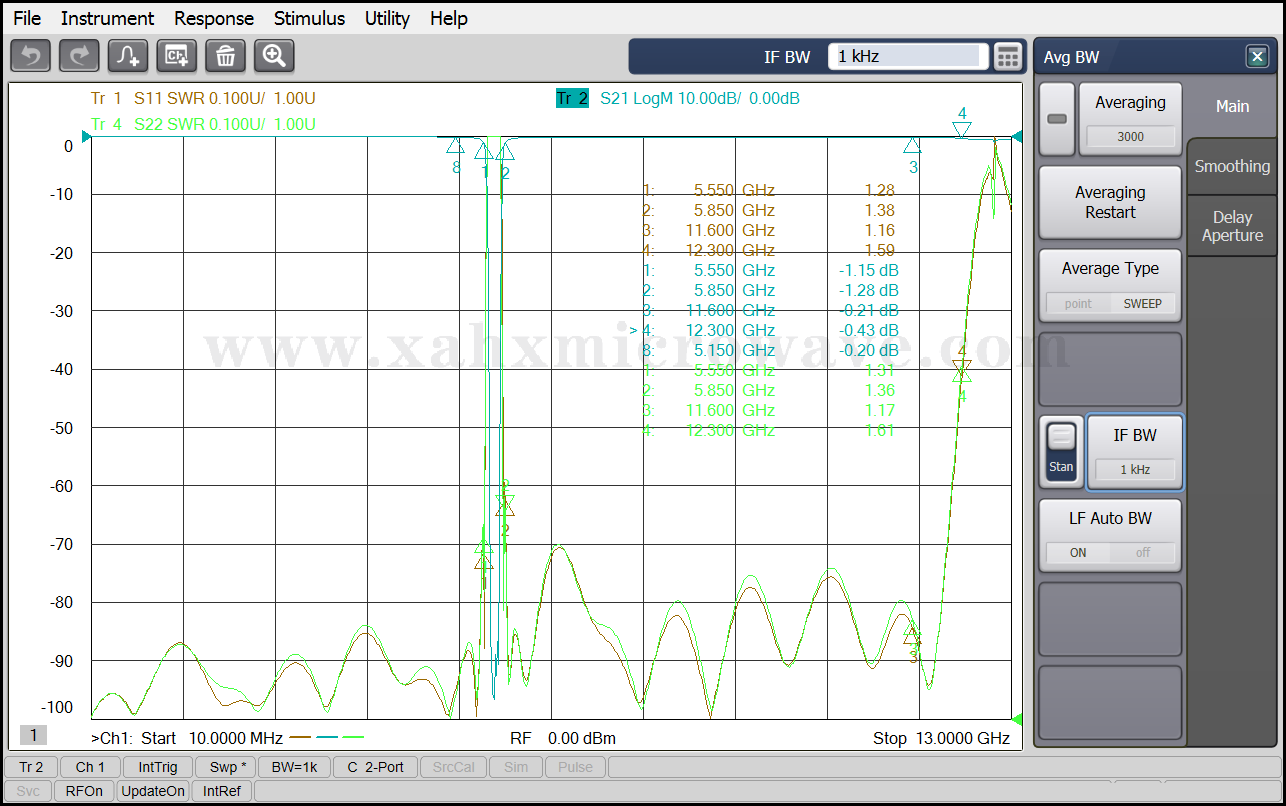

Test Curve
