| Technical Data Sheet | ||
| ● | Stop Band Frequency | 5450 ~ 5700MHz |
| ● | Stop Band Attenuation | ≥40dB |
| ● | Pass Band Frequency | DC ~ 5320MHz , 5820 ~ 11000MHz |
| ● | Pass Band Insertion Loss | ≤2.0dB |
| ● | Pass Band VSWR | ≤1.7:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 30W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

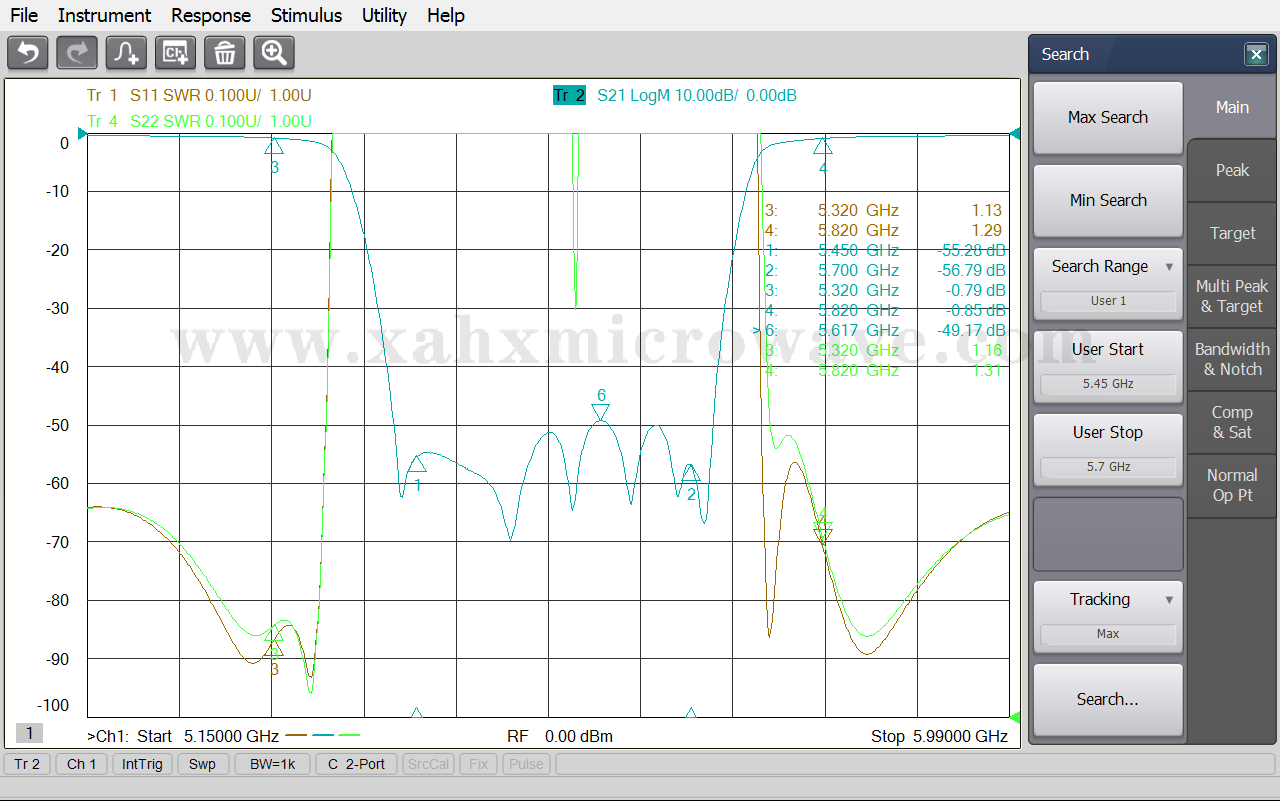

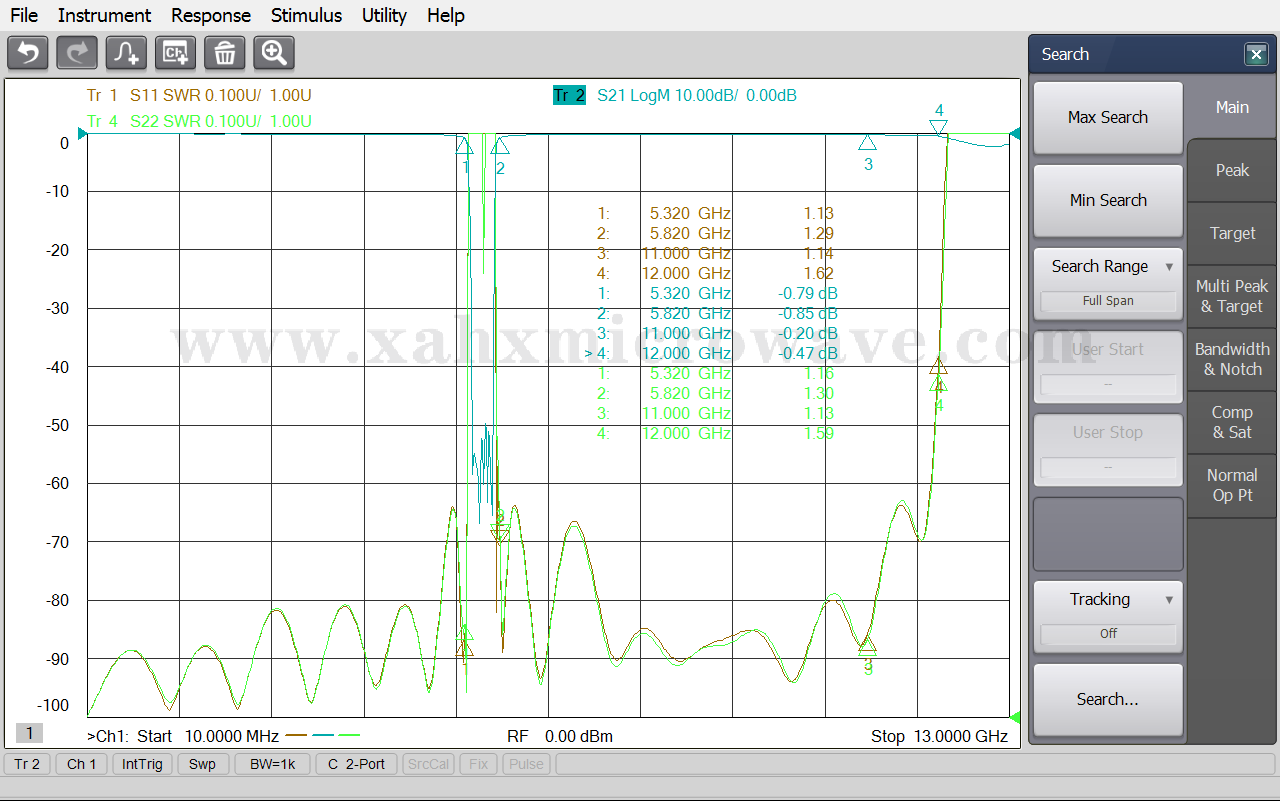

| Test Curve | ||
