| Technical Data Sheet | ||
| ● | Stop Band Frequency | 1400 ~ 1600MHz |
| ● | Stop Band Attenuation | ≥40dB |
| ● | Pass Band Frequency | DC ~ 1340MHz , 1660 ~ 4100MHz |
| ● | Pass Band Insertion Loss | ≤1.5dB |
| ● | Pass Band VSWR | ≤1.7:1 @ DC ~ 1340MHz , 1660 ~ 4100MHz |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

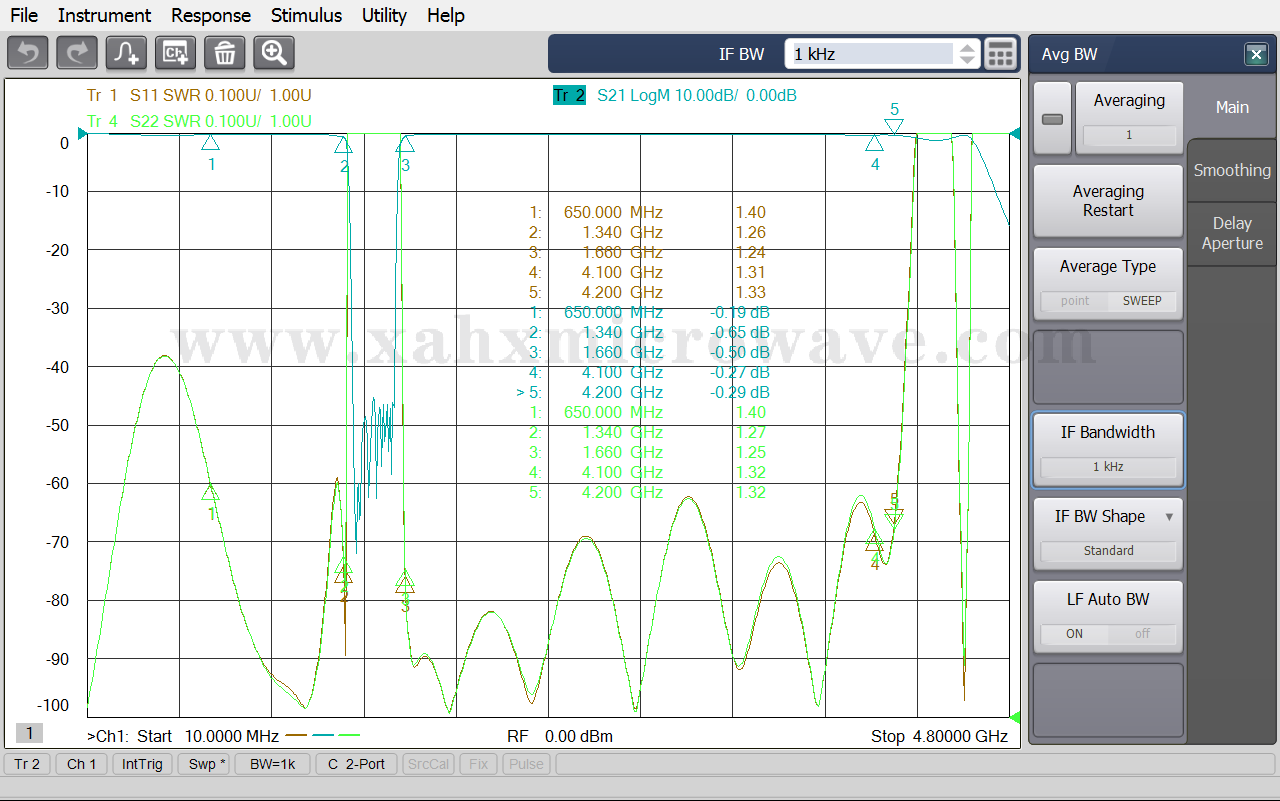

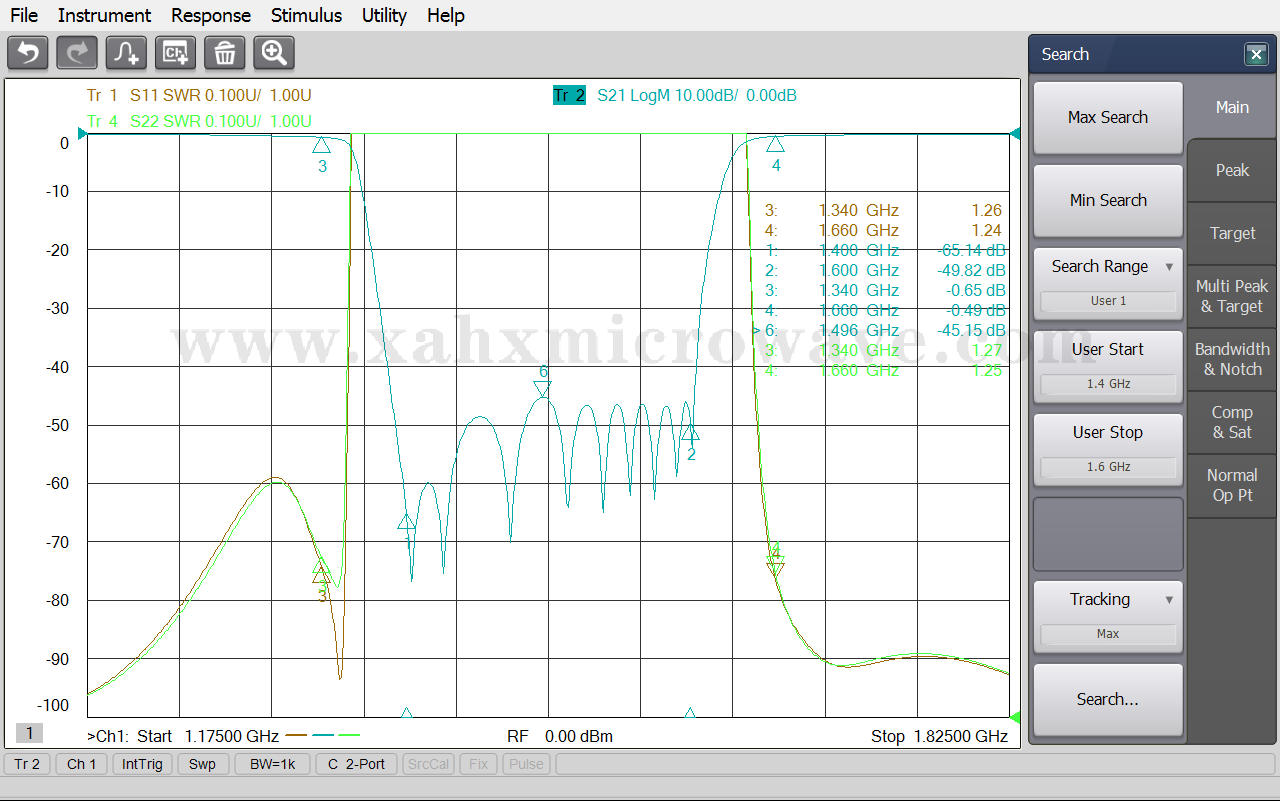

| Test Curve | ||
