Technical Data Sheet
●	Stop Band Frequency	1880～1930MHz
●	Stop Band Attenuation	≥40dB
●	Pass Band Frequency	DC～1830MHz & 1980～4600MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Return Loss	≥14dB
●	Impedance	50 ohms
●	Surface Finish	Black Paint
●	Power Handling	≤50W
●	Connectors	SMA-Female
●	Net Weight	0.245 KG

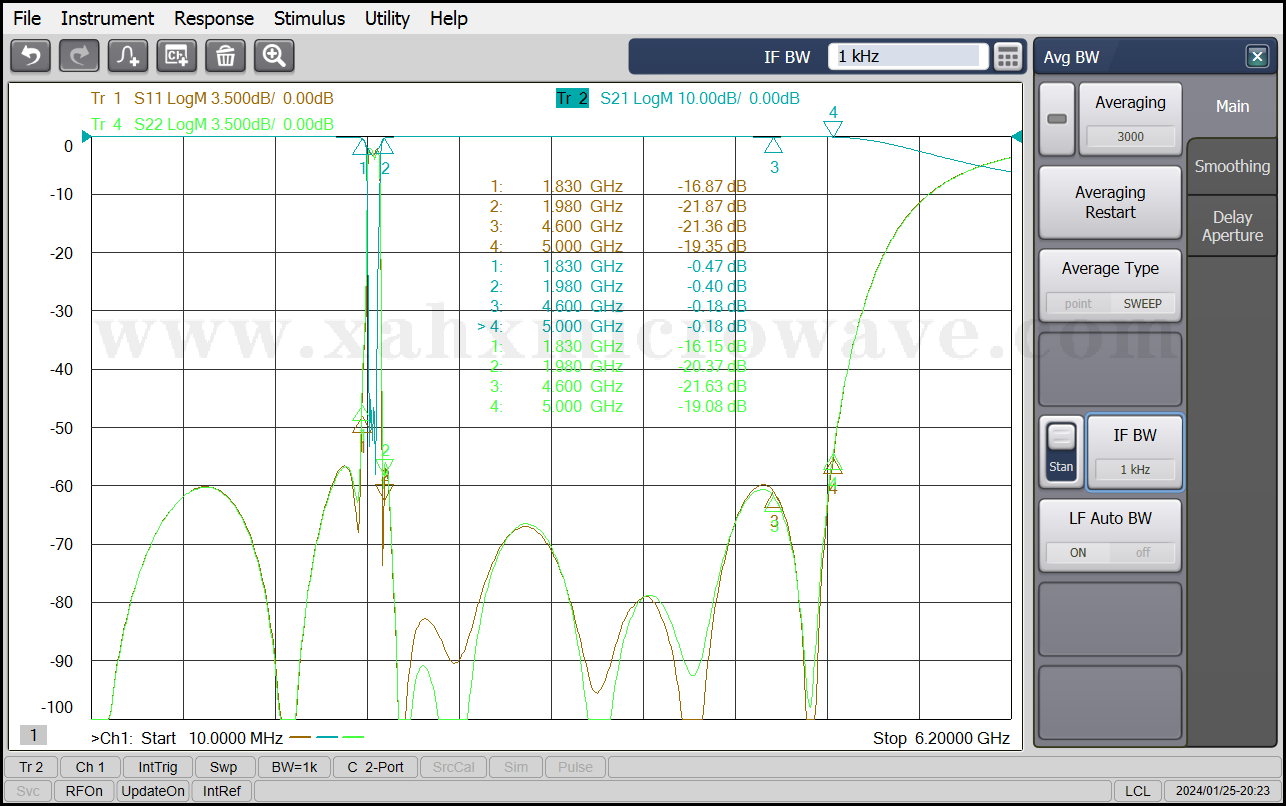

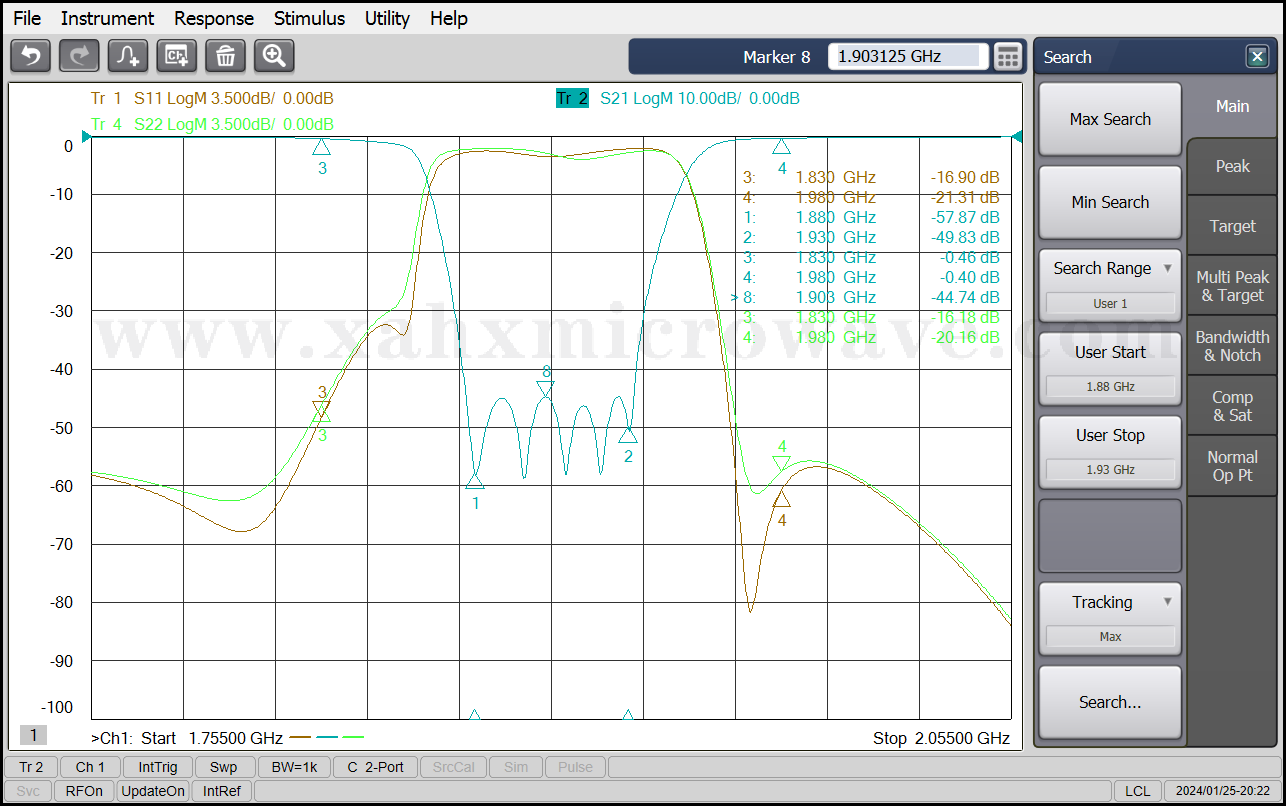

Test Curve
