Technical Data Sheet
●	Stop Band Frequency	1920-1980MHz
●	Stop Band Attenuation	≥35dB
●	Pass Band Frequency	DC ~ 1900MHz , 2000 ~ 4500MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 Ohms
●	Power	50W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

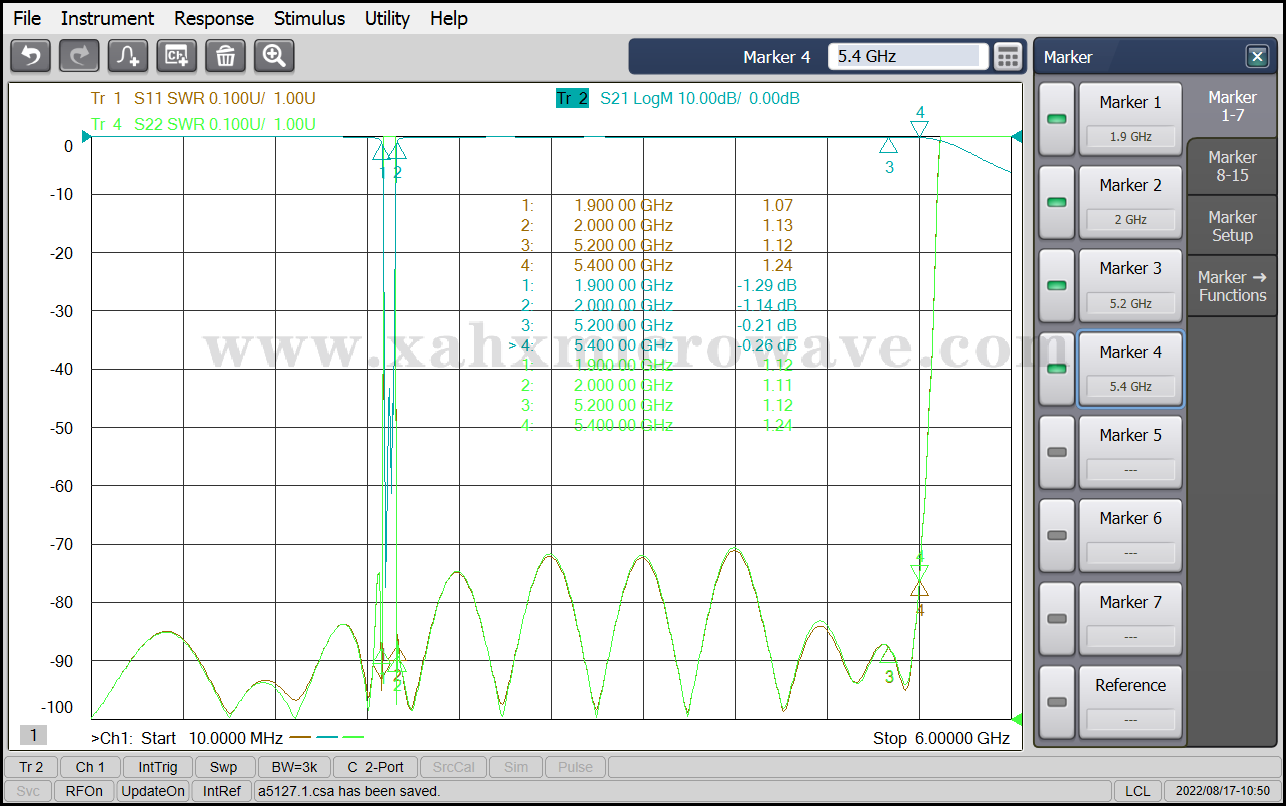

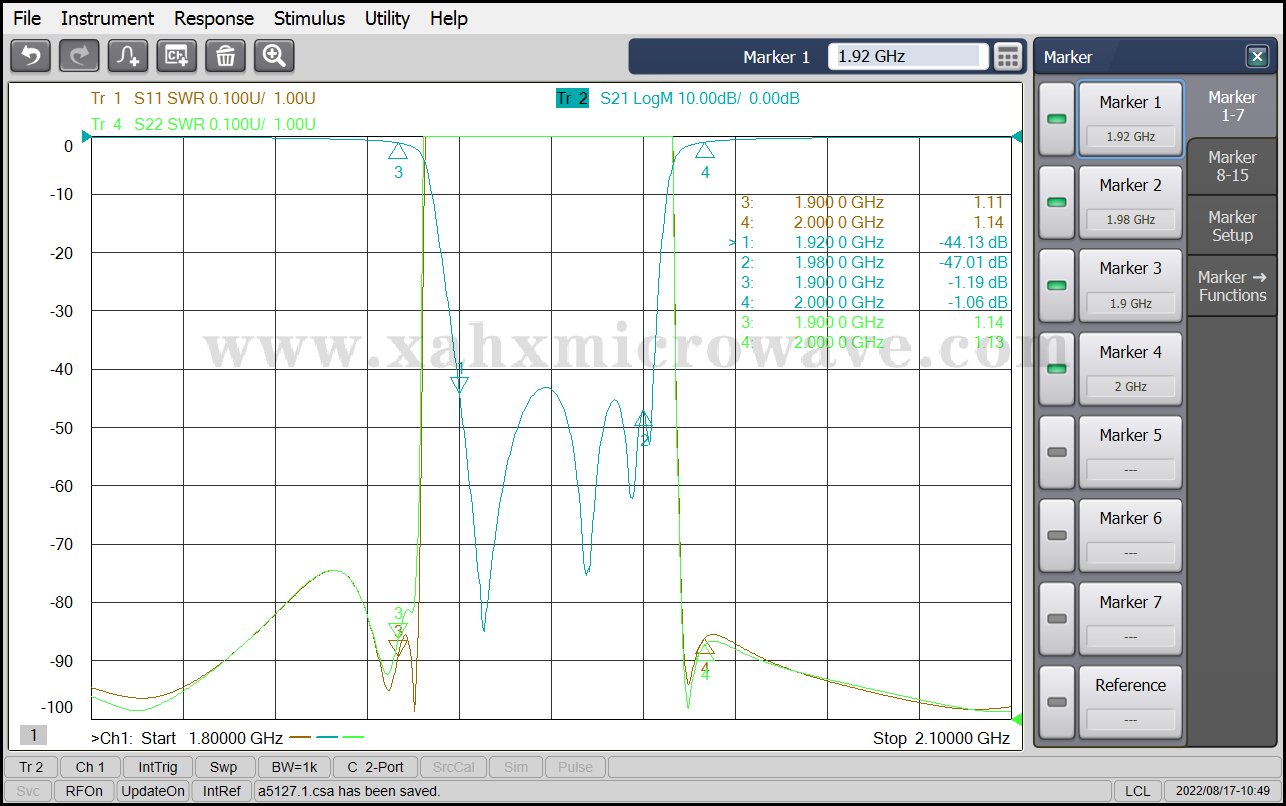

Test Curve
