Technical Data Sheet
●	Stop Band Frequency	880～915MHz
●	Stop Band Attenuation	≥40dB
●	Pass Band Frequency	DC～860MHz & 935～2400MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 ohms
●	Surface Finish	Black Paint
●	Power Handling	≤50W
●	Connectors	SMA-Female
●	Net Weight	0.73 KG

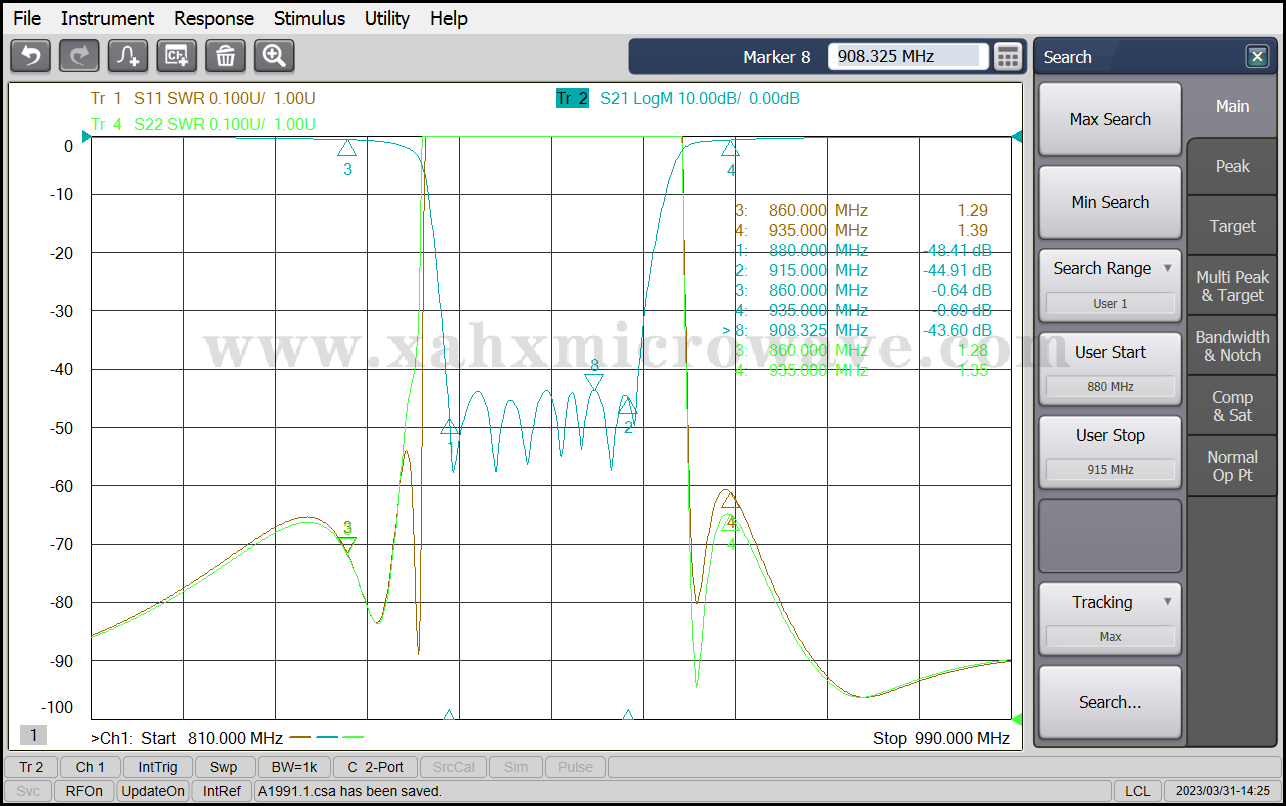

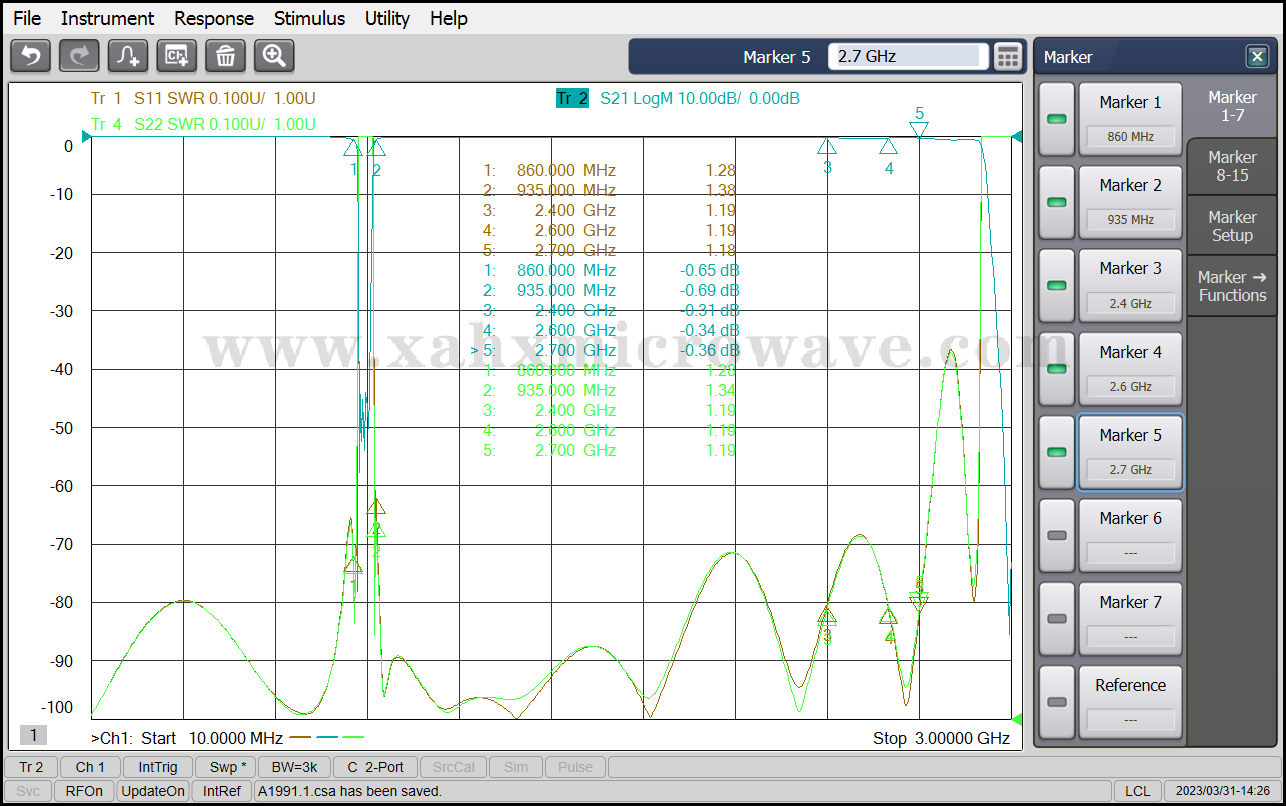

Test Curve
