Technical Data Sheet
●	Stop Band Frequency	930～934MHz
●	Stop Band Attenuation	≥40dB
●	Pass Band Frequency	DC～920MHz & 944～2200MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 ohms
●	Power Handling	≤20W
●	Connectors	SMA-Female
●	Surface Finish	Black Paint

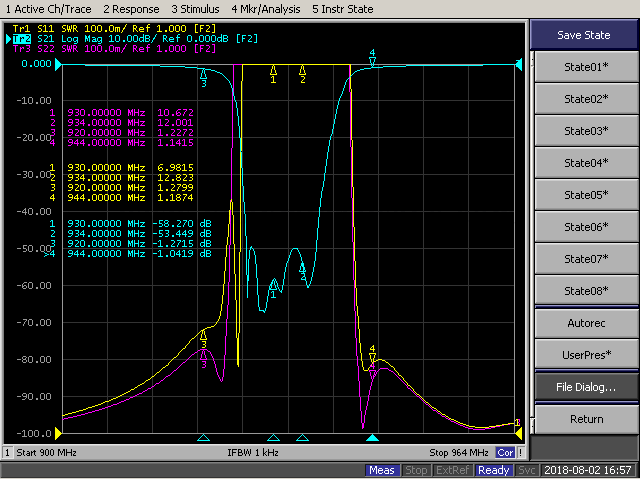

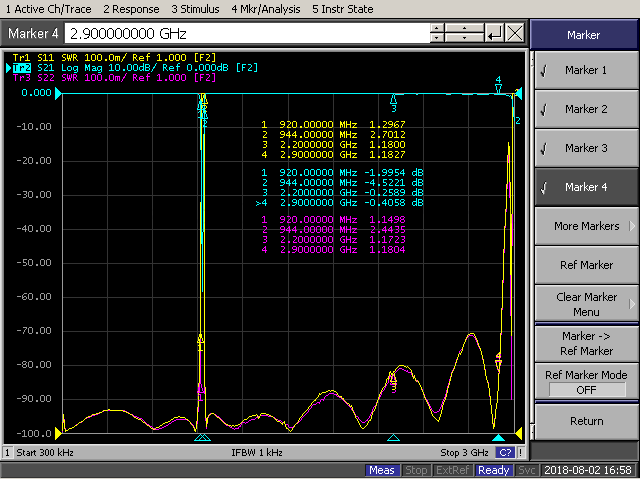

Test Curve
