Technical Data Sheet
●	Stop Band Frequency	934 ~ 954MHz
●	Stop Band Attenuation	≥50dB
●	Pass Band Frequency	DC ~ 914MHz , 974 ~ 2500MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	0℃ ~ +40℃

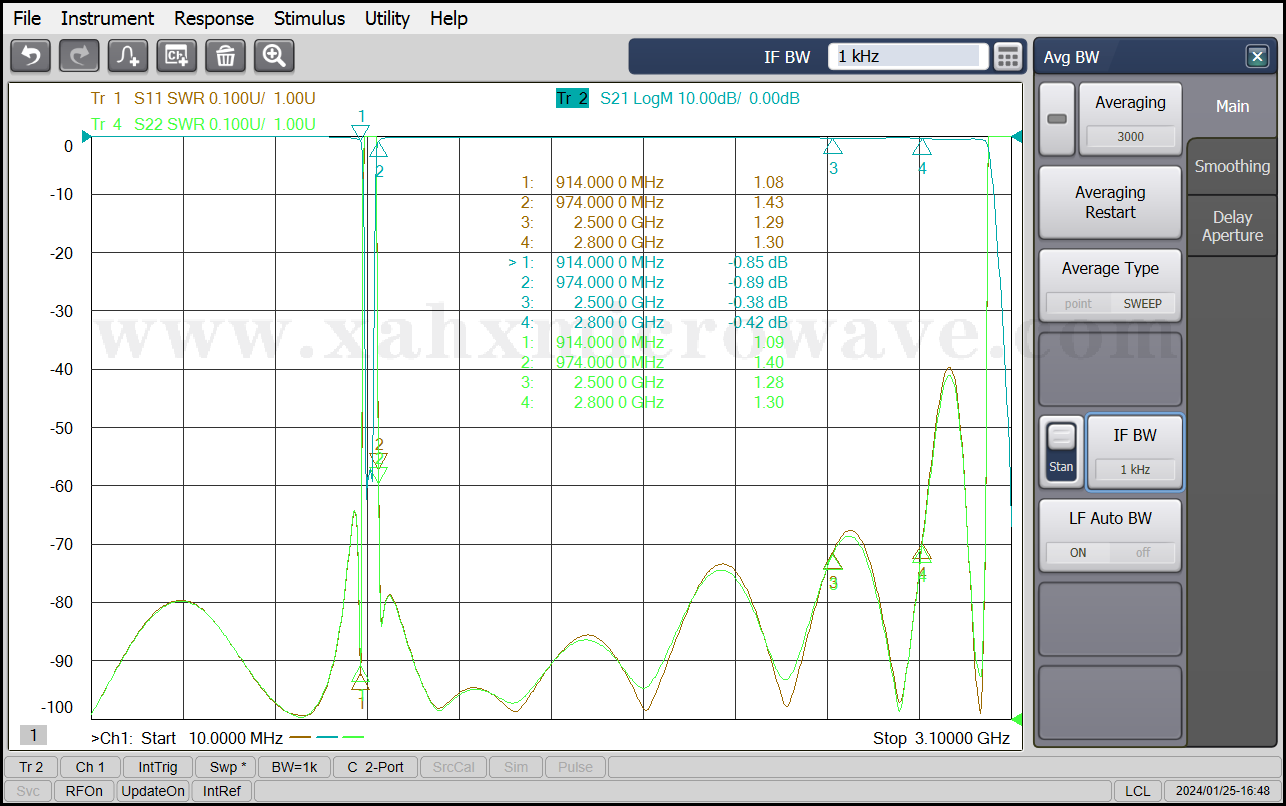

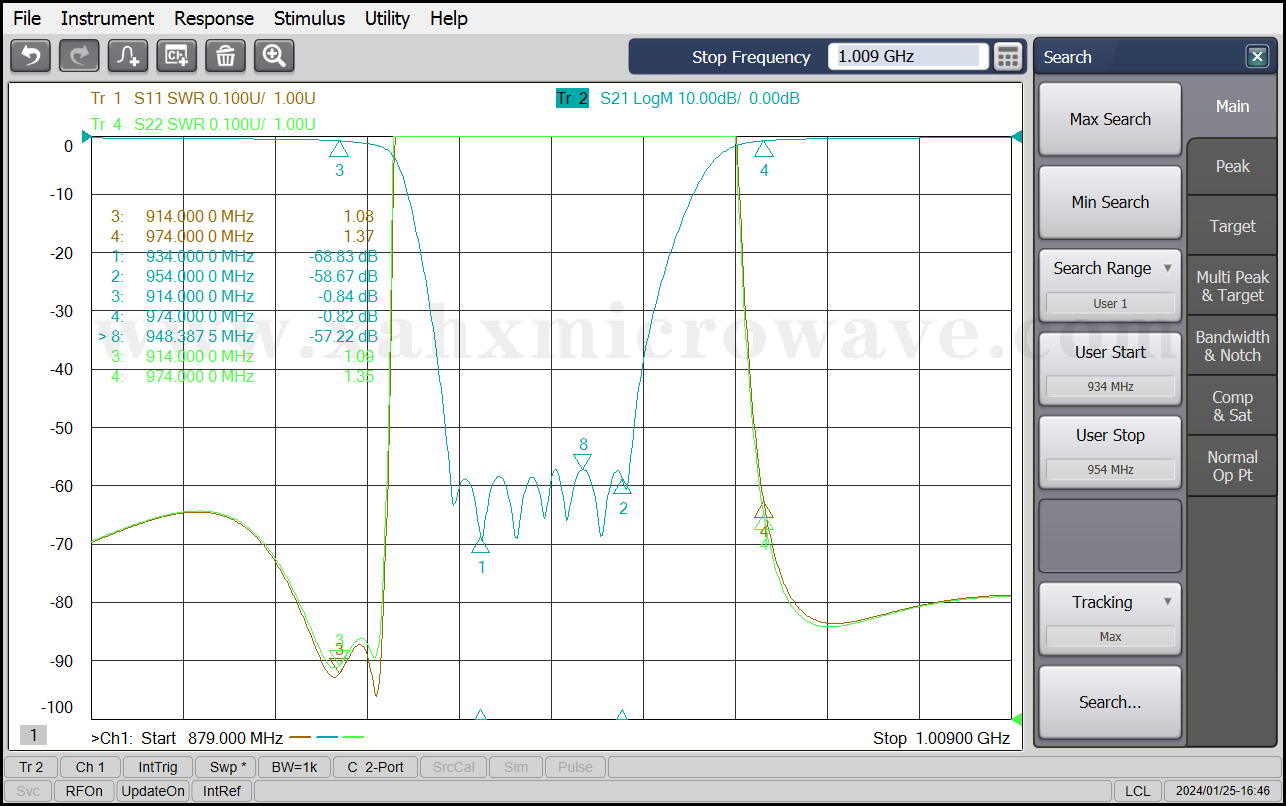

Test Curve
