Cavity Band Rejection Filter

  • 2300-2400MHz Cavity Band Rejection Filter

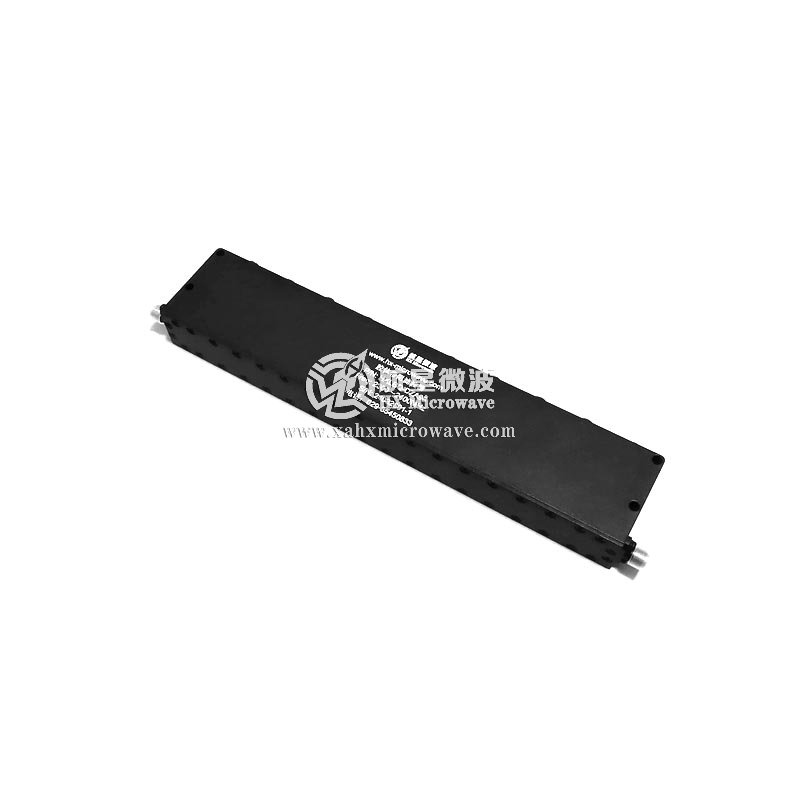

2300-2400MHz Cavity Band Rejection Filter

2300-2400MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA96
  • Stop Band Frequency：2300～2400MHz
  • Stop Band Attenuation：≥40dB
  • Insertion loss：≤1.6dB
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download

Technical Data Sheet
● Stop Band Frequency 2300～2400MHz
● Stop Band Attenuation ≥40dB
● Pass Band Frequency DC～2275MHz & 2425～6000MHz
● Pass Band Insertion Loss ≤1.6dB
● Pass Band VSWR ≤1.5:1
● Impedance 50 ohms
● Surface Finish Black Paint
● Power Handling ≤50W
● Connectors SMA-Female

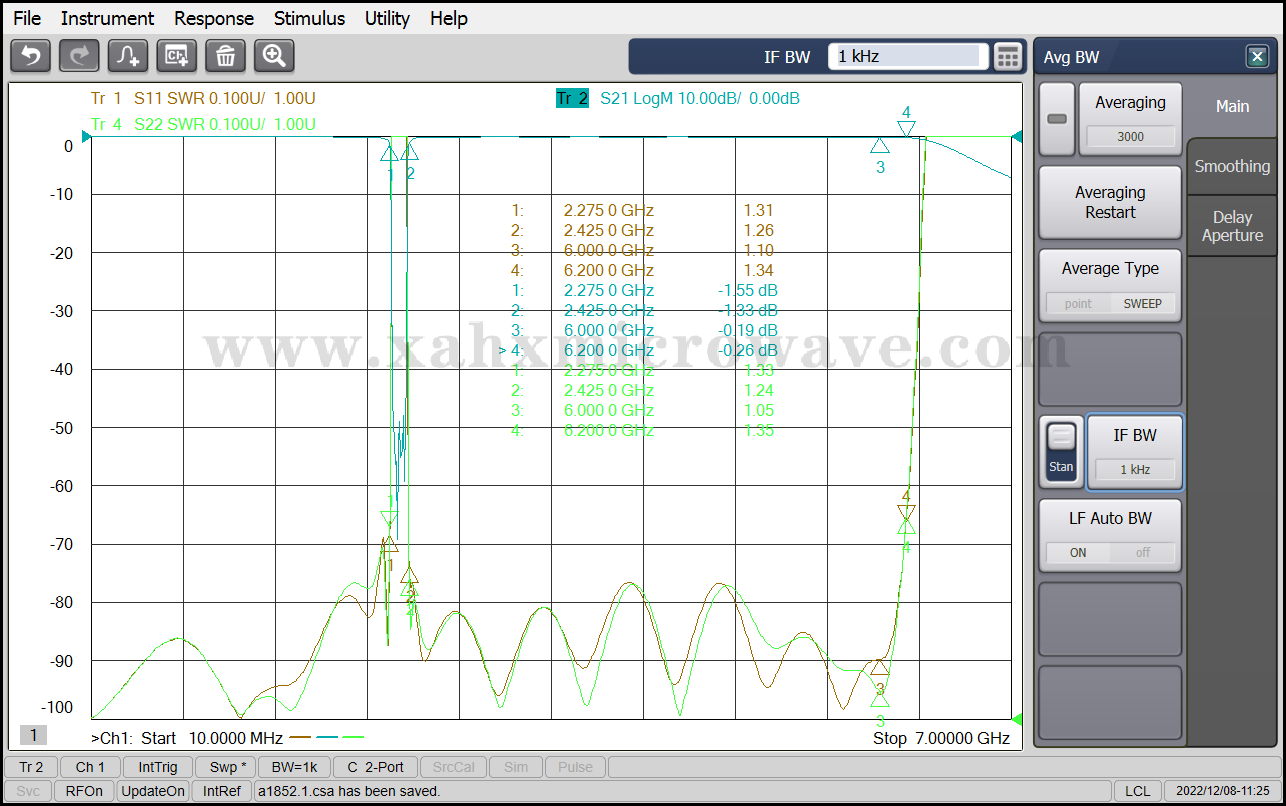

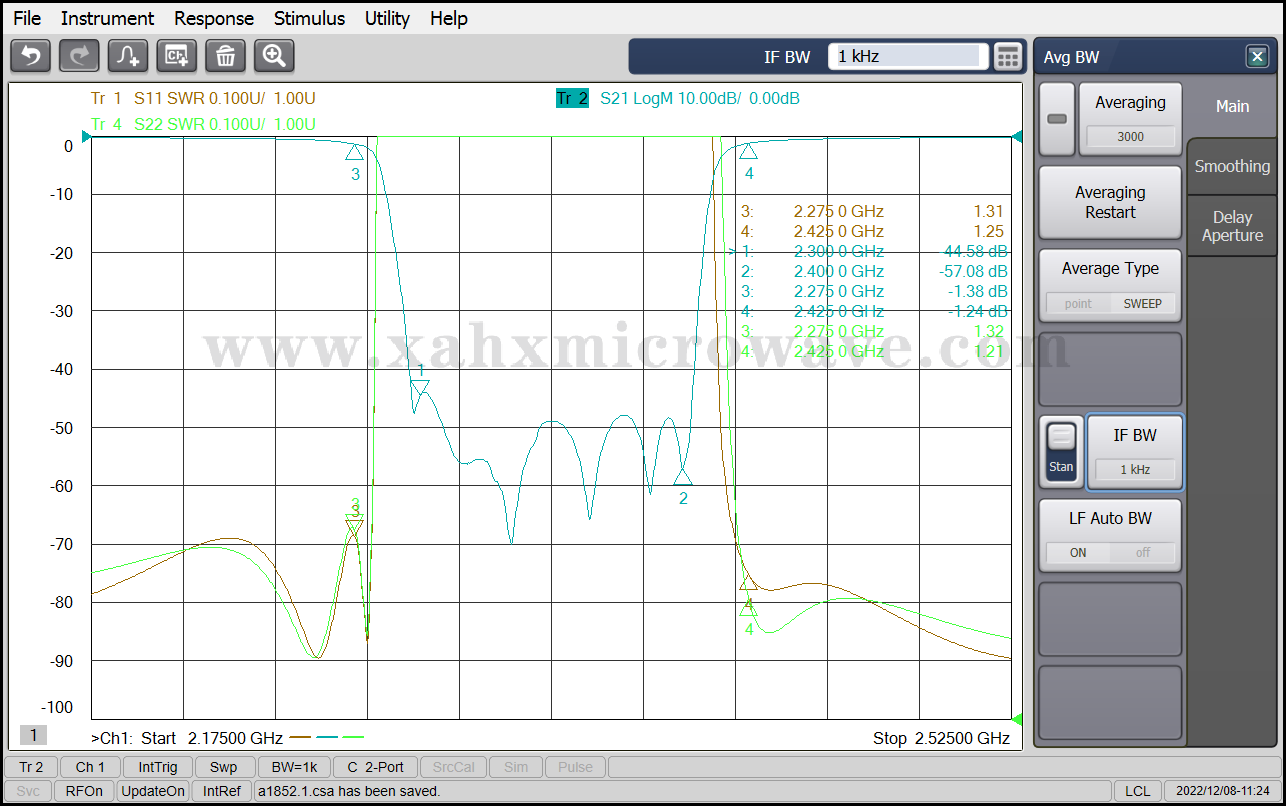

Test Curve
