Technical Data Sheet
●	Cut Off Frequency	1.75GHz
●	Pass Band Frequency	1.75 ~ 10GHz
●	Pass Band Insertion Loss	≤2.0dB @ 1.75 ~ 1.9GHz
		≤1.0dB @ 1.9 ~ 10GHz
●	Pass Band VSWR	≤1.5:1
●	Stop Band Attenuation	≥60dB @ DC ~ 1.47GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

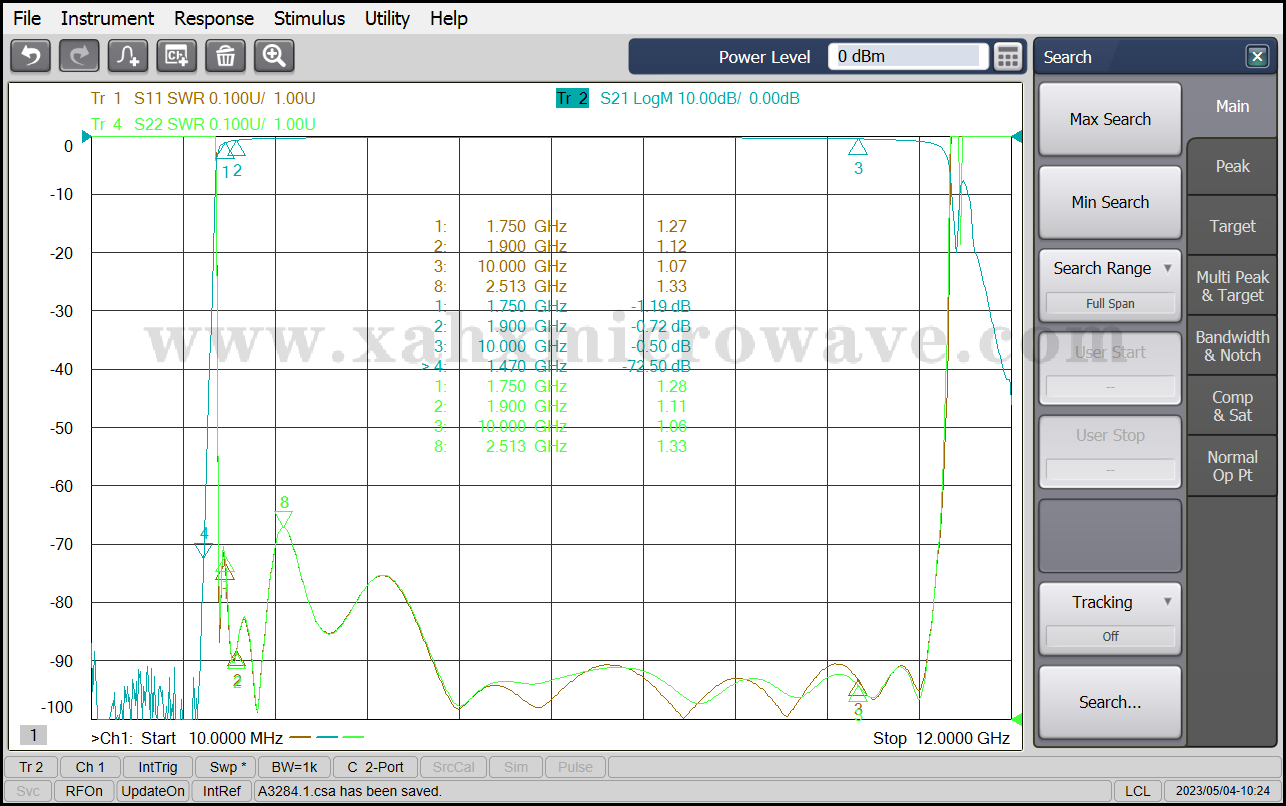

Test Curve
