Technical Data Sheet
●	Cut Off Frequency	2.5GHz
●	Pass Band Frequency	2.5 ~ 15GHz
●	Pass Band Insertion Loss	≤2.0dB @ 2.5 ~ 2.7GHz
		≤1.0dB @ 2.7 ~ 15GHz
●	Pass Band VSWR	≤1.5:1
●	Stop Band Attenuation	≥60dB @ DC ~ 2.15GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

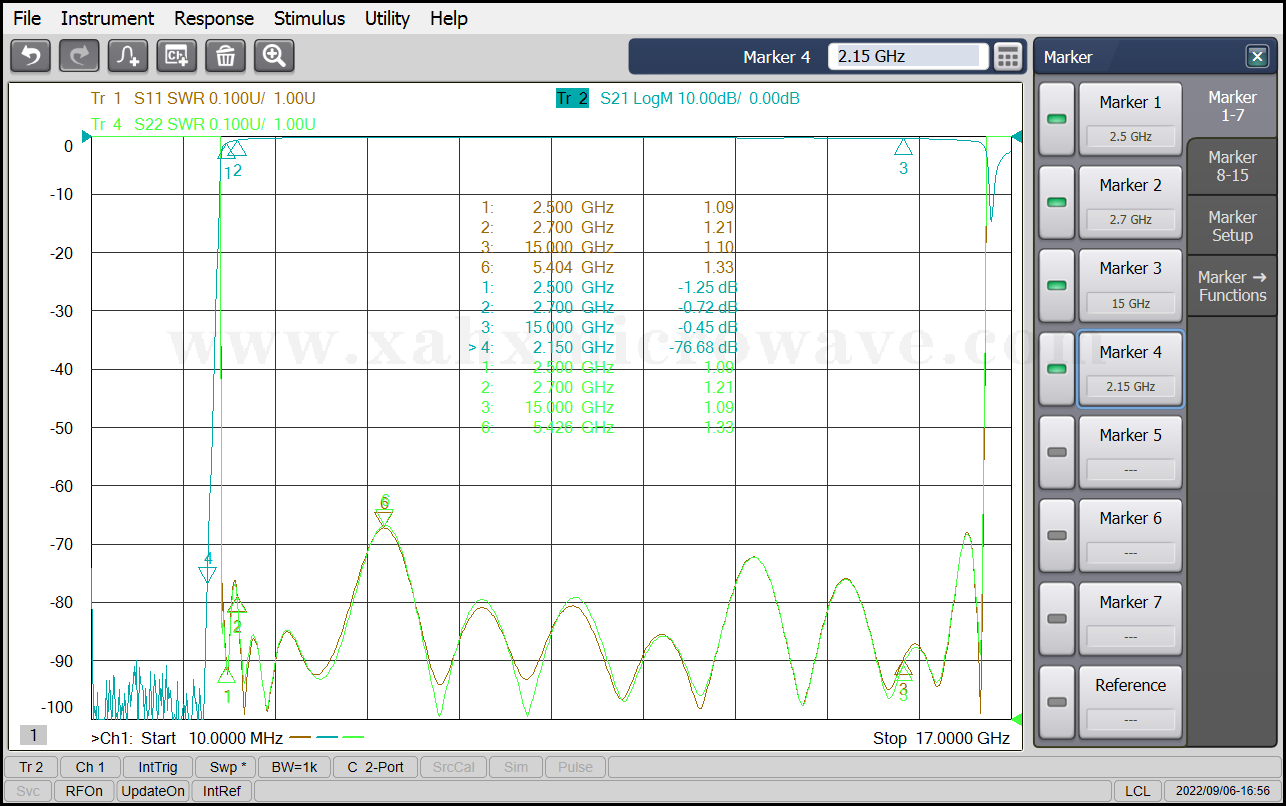

Test Curve
