Technical Data Sheet
●	Pass Band Frequency	2.4 ~ 19GHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.5:1
●	Stop Band Rejection	≥60dB @ DC ~ 1.7GHz   ≥40dB @ 1.7 ~ 1.9GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black

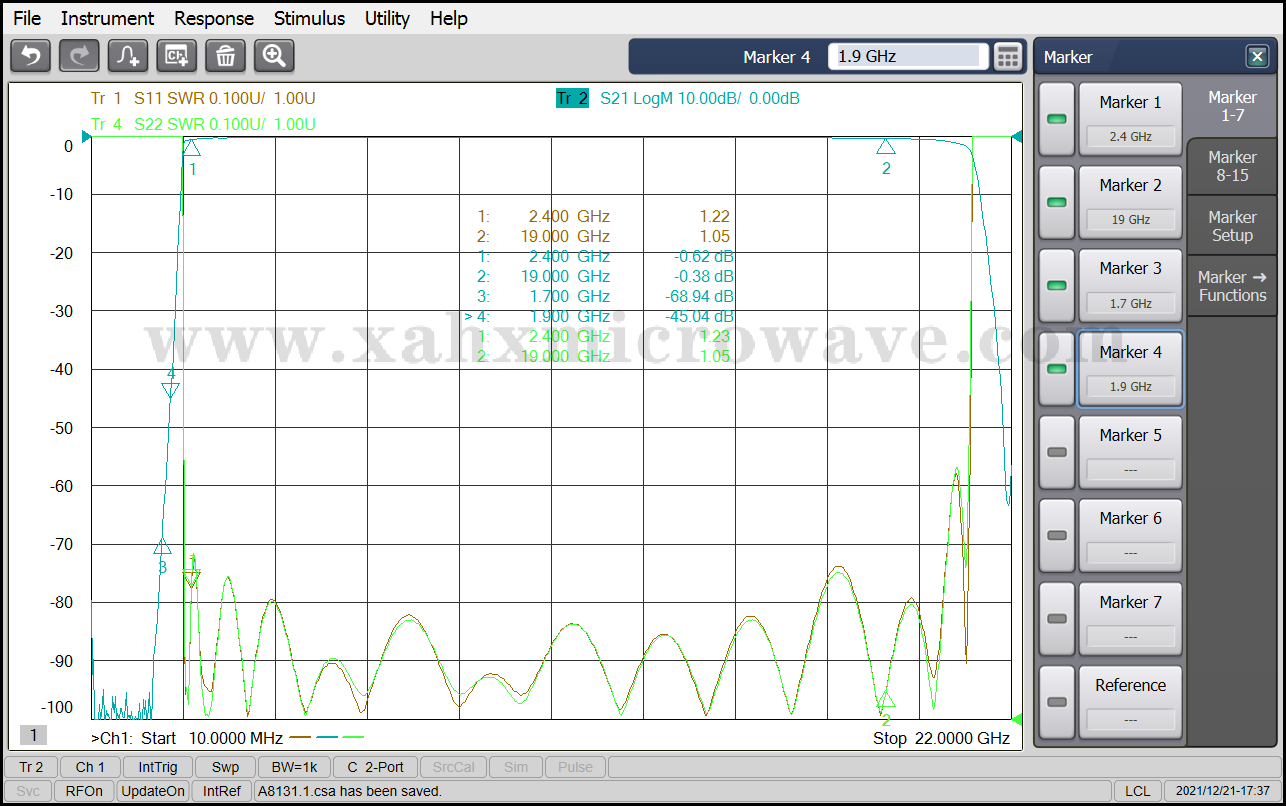

Test Curve
