High Pass Filter

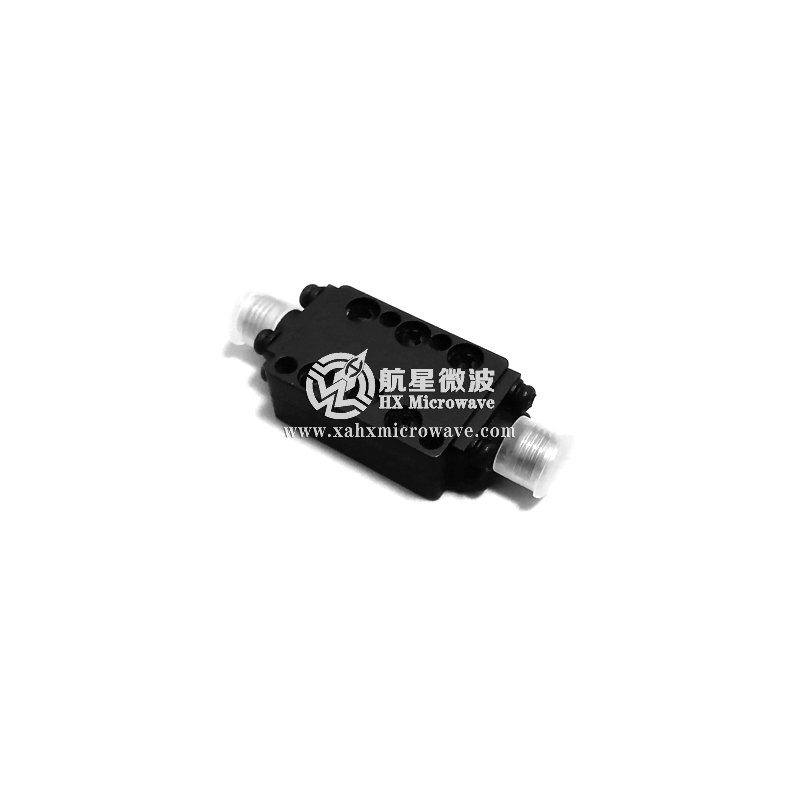

18-28GHz High Pass Filter

P/N：HXLBQ-GTA99
Pass Band Frequency:18-28GHz
inhibition：≥60dB
Insertion loss：≤1.0dB
Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
PDF technical index download

Technical Data Sheet
●	Cut Off Frequency	18GHz
●	Pass Band Frequency	18 ~ 28GHz
●	Pass Band Insertion Loss	≤2.0dB @ 18 ~ 19.5GHz
●	Pass Band Insertion Loss	≤1.0dB @ 19.5 ~ 28GHz
●	Pass Band VSWR	≤1.7:1
●	Stop Band Attenuation	≥60dB @ DC ~ 16.2GHz
●	Stop Band Attenuation	≥30dB @ 16.2 ~ 17GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
Test Curve
