Frequency Combiner/Multiplexer

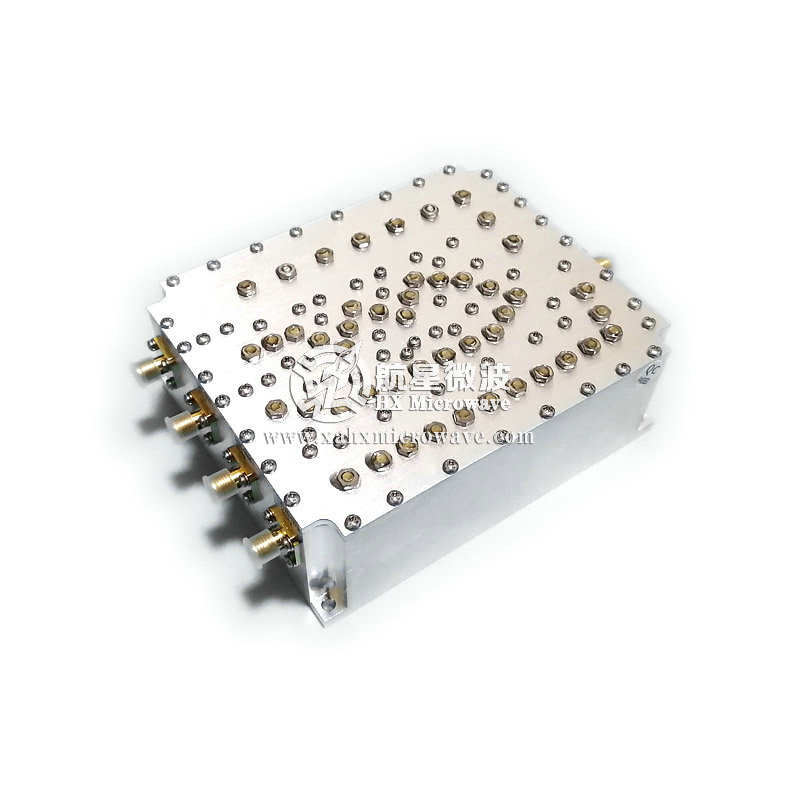

840-930MHz 1170-1270MHz 1430-1444MHz 1550-1620MHz_Cavity Quadriplexer

Technical Data Sheet
P/N	Parameters	P1	P2	P3	P4
●	Frequency Range	840~930MHz	1170~1270MHz	1430~1444MHz	1550~1620MHz
●	Insertion Loss	≤1.0dB	≤1.0dB	≤1.0dB	≤1.0dB
●	Ports Isolation	≥60dB@840~930MHz,1170~1270MHz,1430~1444MHz,1550~1620MHz
●	VSWR	≤1.5:1
●	Power Handling	20W@CH1 CH2 CH3 CH4
●	Connectors	SMA-Female
●	Ports Impedance	50 OHM
●	Temperature	-20℃~+65℃
●	Surface Finish	Natural color conductive oxidation
●	Scenes To Be Used	Indoor
Test Curve
