Technical Data Sheet
●	Cut Off Frequency	10GHz
●	Pass Band Frequency	10 ~ 28GHz
●	Pass Band Insertion Loss	≤1.5dB @ 10 ~ 10.4GHz
		≤1.0dB @ 10.4 ~ 28GHz
●	Pass Band VSWR	≤1.5:1
●	Stop Band Attenuation	≥50dB @ DC ~ 8.25GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

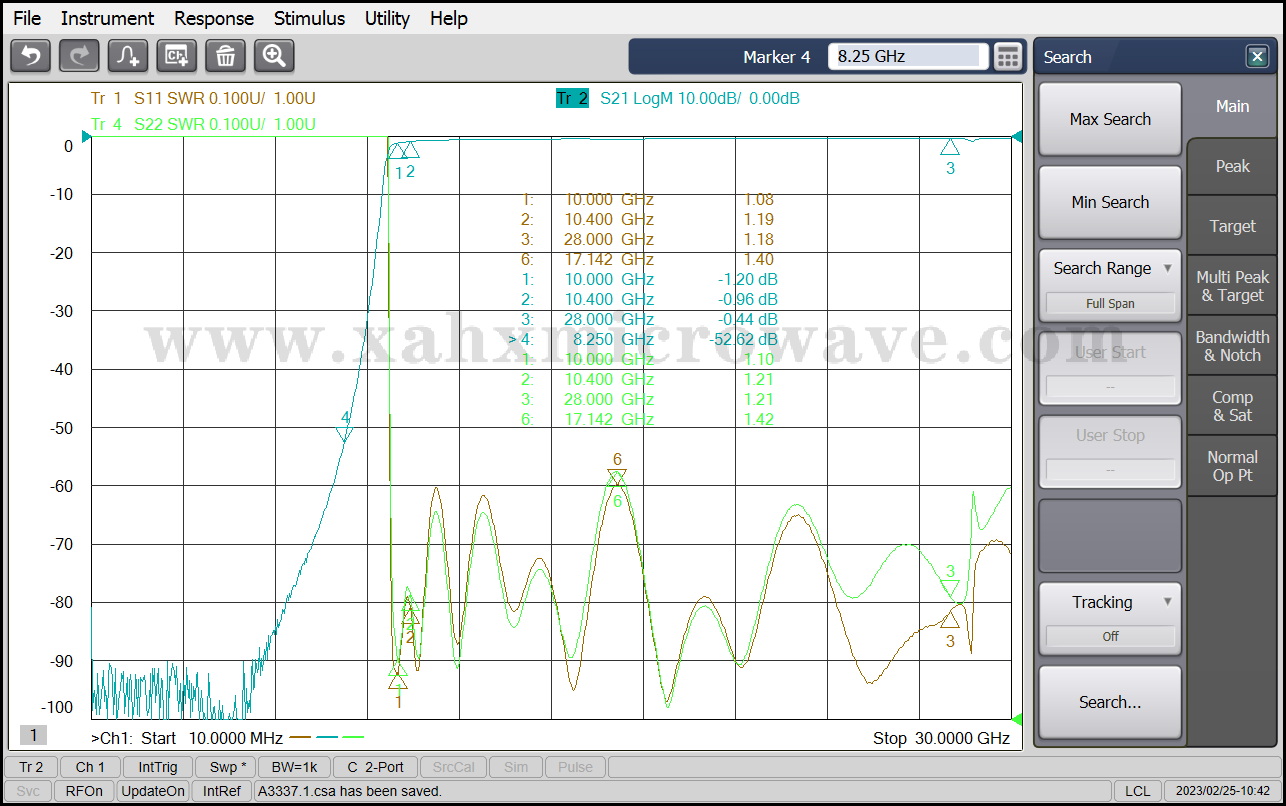

Test Curve
