High Pass Filter

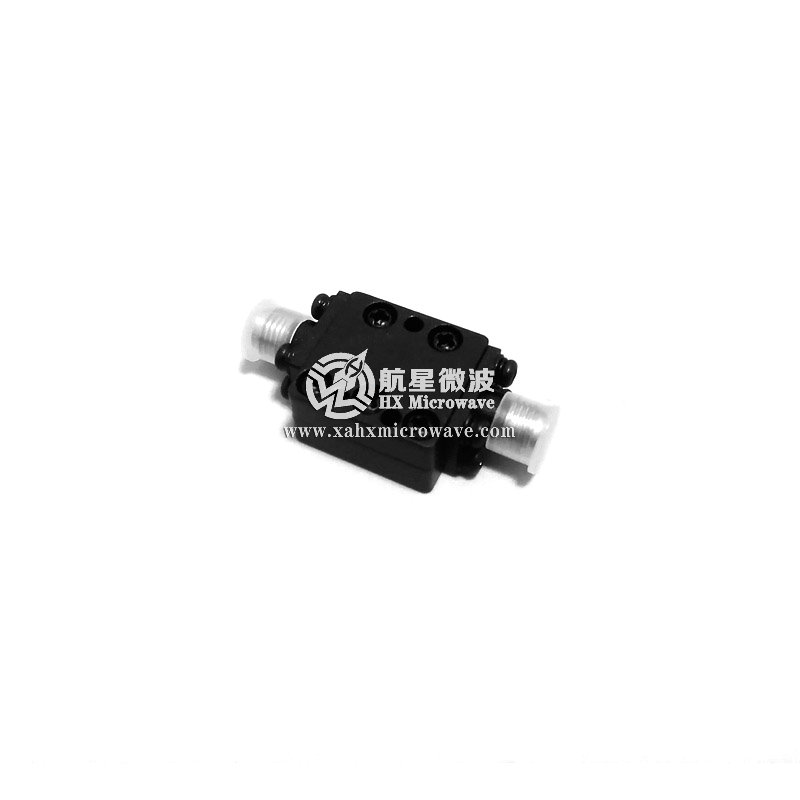

10.5-28GHz High Pass Filter

P/N：HXLBQ-GTA36
Pass Band Frequency:10.5-28GHZ
inhibition：≥50dB
Insertion loss：≤1.0dB
Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
PDF technical index download

Technical Data Sheet
●	Cut Off Frequency	10.5GHz
●	Pass Band Frequency	10.5 ~ 28GHz
●	Pass Band Insertion Loss	≤2.0dB @ 10.5 ~ 11.3GHz
●	Pass Band Insertion Loss	≤1.0dB @ 11.3 ~ 28GHz
●	Pass Band VSWR	≤1.6:1
●	Stop Band Attenuation	≥50dB @ DC ~ 9.1GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃
Test Curve
