Technical Data Sheet
●	Cut Off Frequency	19GHz
●	Pass Band Frequency	DC ~ 19GHz
●	Pass Band Insertion Loss	≤1.0dB @ DC ~ 18.2GHz
		≤3.0dB @ 18.2 ~ 19GHz
●	Pass Band VSWR	≤1.6:1
●	Stop Band Attenuation	≥50dB @ 20.1 ~ 26GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

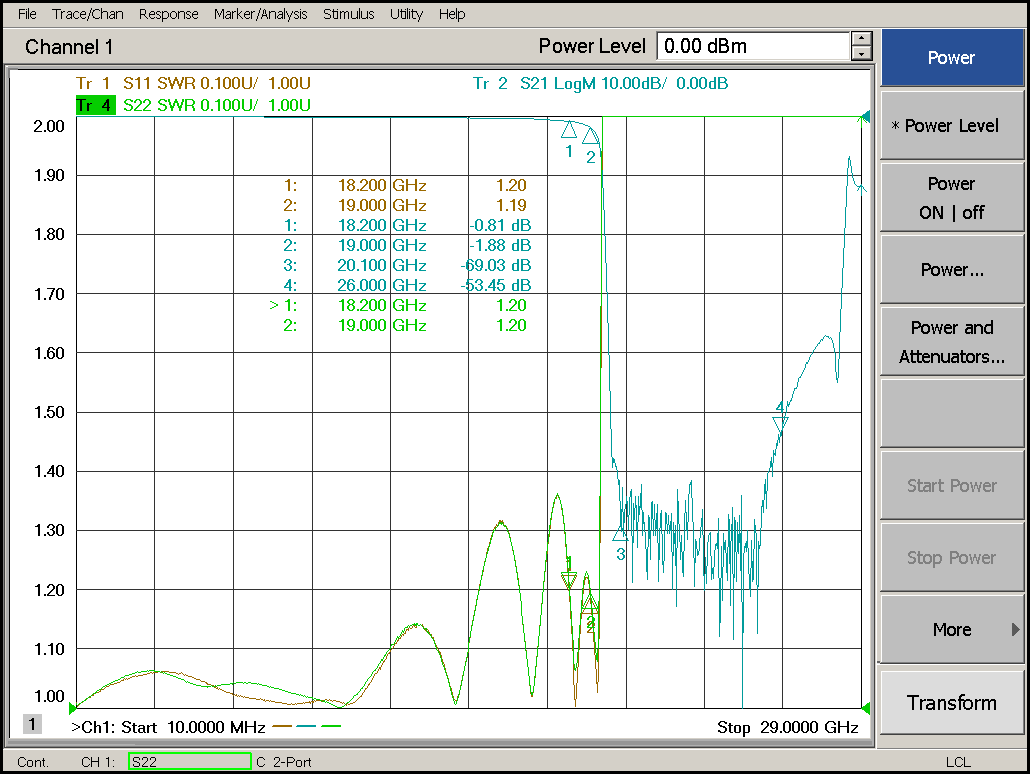

Test Curve
