2W Attenuator

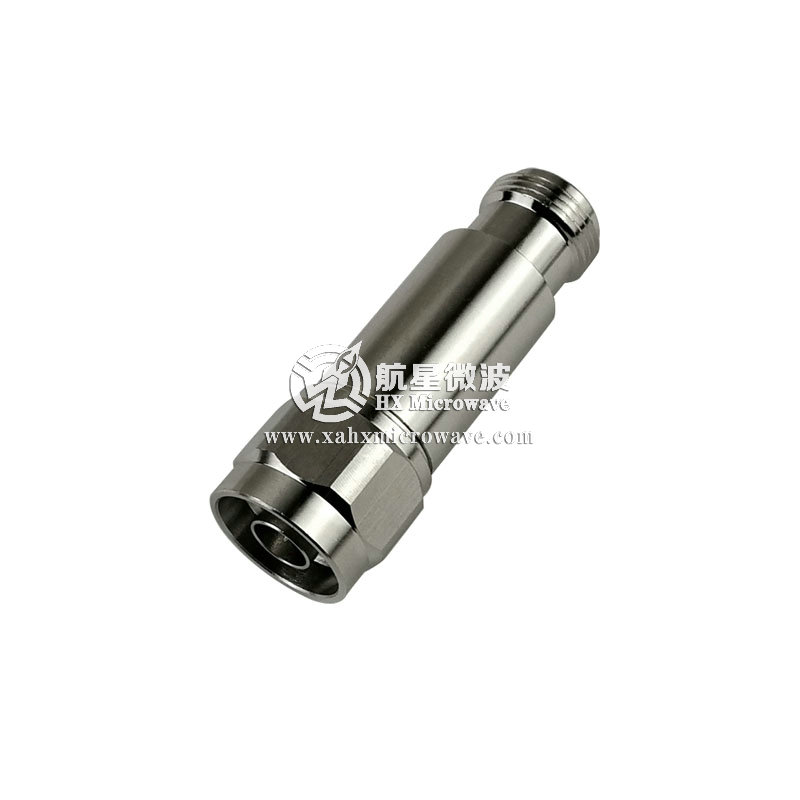

2W RF Coaxial Attenuator DC-6GHz 1-30DB N-JK

P/N：HXDTS2-XX (attenuation)-6-X (connector N or BNC)
frequency:DC-6GHz
Attenuation value:1-30DB
Connector:N-JK
Product description: Good heat dissipation, high cost performance ♦ Low VSWR ♦ High precision attenuation ♦ Resistance to pulse ♦ Wide working frequency ♦ Working temperature and 55 ℃ ~ + 125 ℃
PDF technical index download

Technology Manual
●	Model型号	HXDTS2-XX-X-X (XX stands for attenuation value)
●	Frequency工作频率	DC~3GHz DC~4GHz
●	Connector连接方式	N-JK_BNC-JK
●	VSWR驻波比	≤1.2
●	Power功率容量	2W
●	Impedance特征阻抗	50Ω
●	Attenuation value衰减值	1-30dB
●	Attenuation衰减值精度	1, 3, 5, 6, 10, 15, 20, 30dB is available 1-10dB.±0.5dB,15-30dB±1dB
●	Temperature Range工作温度	-55℃～+125℃
