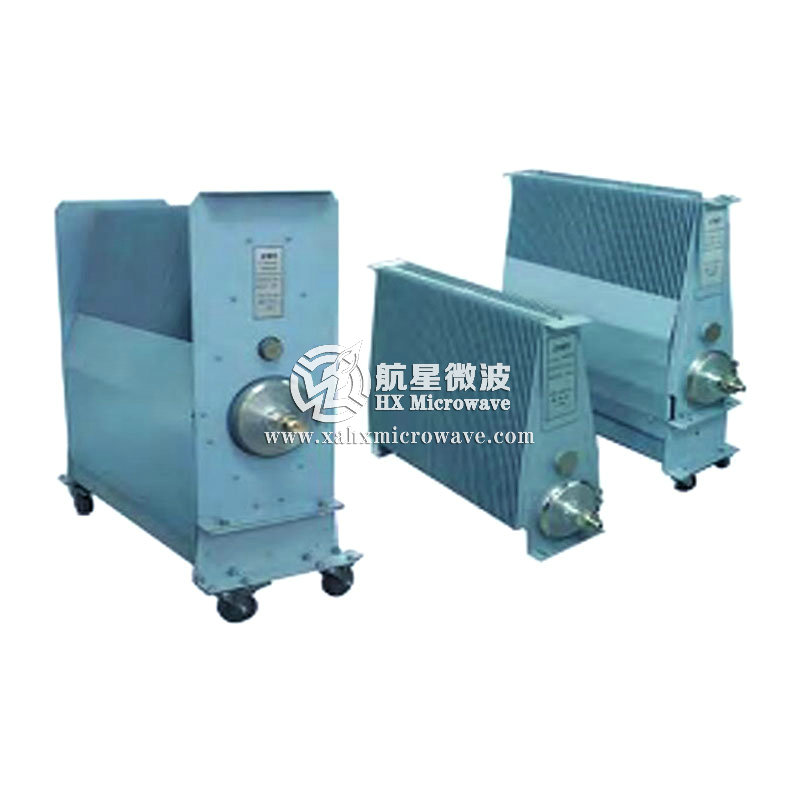

| 3000W Termination Load | ||||
| Technical Data Sheet | ||||
| Model Number | Freq. Range | Average Power | Connector Type | VSWR Max |
| HXGTF3000-1G | DC-1GHz | 3000W | N,7/16 | 1.25 |
| HXGTF3000-2G | DC-2GHz | 1.3 | ||
| HXGTF3000-3G | DC-3GHz | 1.45 | ||
| Impedance：50Ω | ||||
| Temperature Range：-55℃～+125℃ | ||||
| ●:Average power: 3000W corresponds to an ambient temperature of 25°C, when the temperature rises to 125°C, the power decreases linearly to 300W | ||||
| ●:Peak power: 10KW (5μs pulse width, 10% duty cycle) | ||||
| ●:Cooling Method:Forced Draft | ||||
| Model Number | Freq. Range | Average Power | Connector Type | VSWR Max |
| HXTF3000-2G | DC-2GHz | 3000W | N,7/16，L29 | 1.3 |
| Impedance：50Ω | ||||
| Temperature Range：-40℃～+45℃ | ||||
| ●:Peak power: 50KW (5μs pulse width, 6% duty cycle) | ||||
| ●:Cooling Method:Oil-Cooled+Forced Draft | ||||
