Technical Data Sheet
●	Stop Band Frequency	2.4～2.4835GHz
●	Stop Band Attenuation	≥50dB
●	Pass Band Frequency	1MHz～2.375GHz & 2.51～6.0GHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band Return Loss	≥12dB
●	Impedance	50 ohms
●	Power Handling	≤20W
●	Connectors	SMA-Female
●	Surface Finish	Black Paint
●	Net Weight	0.34 KG

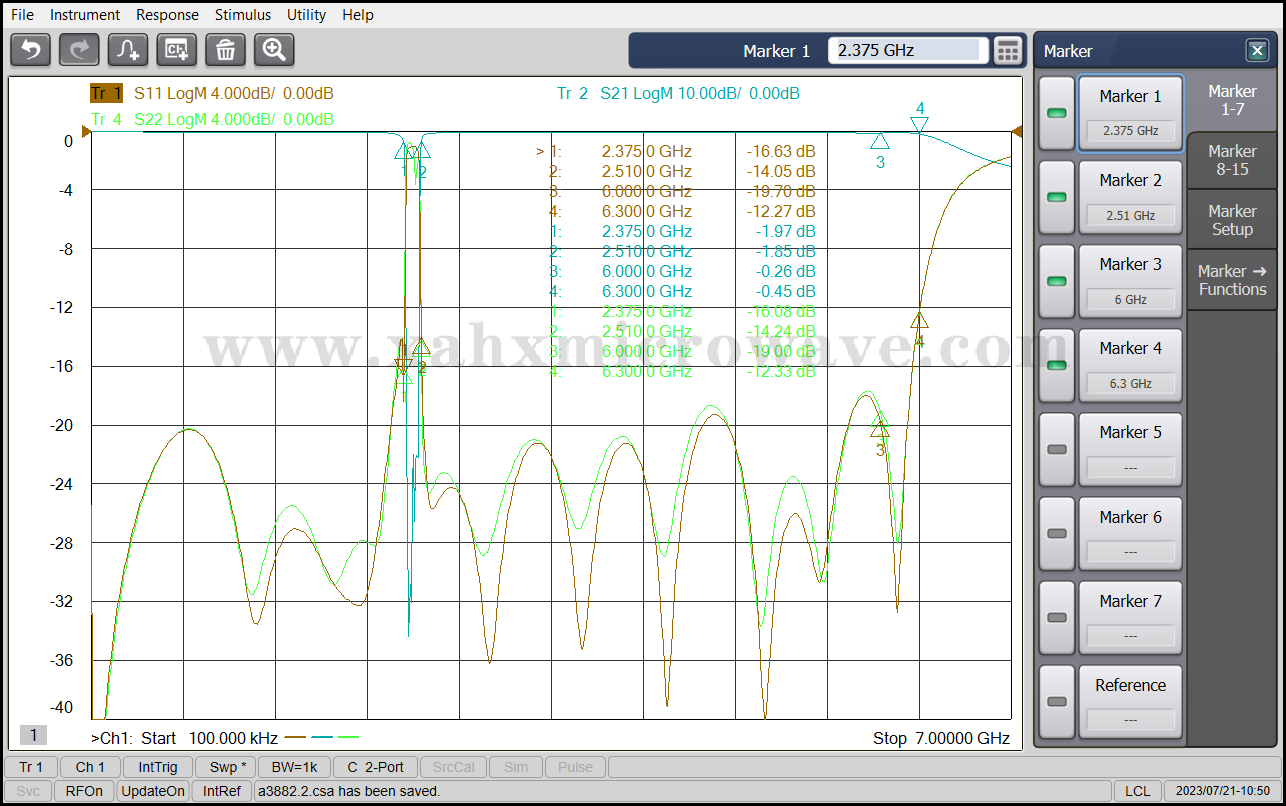

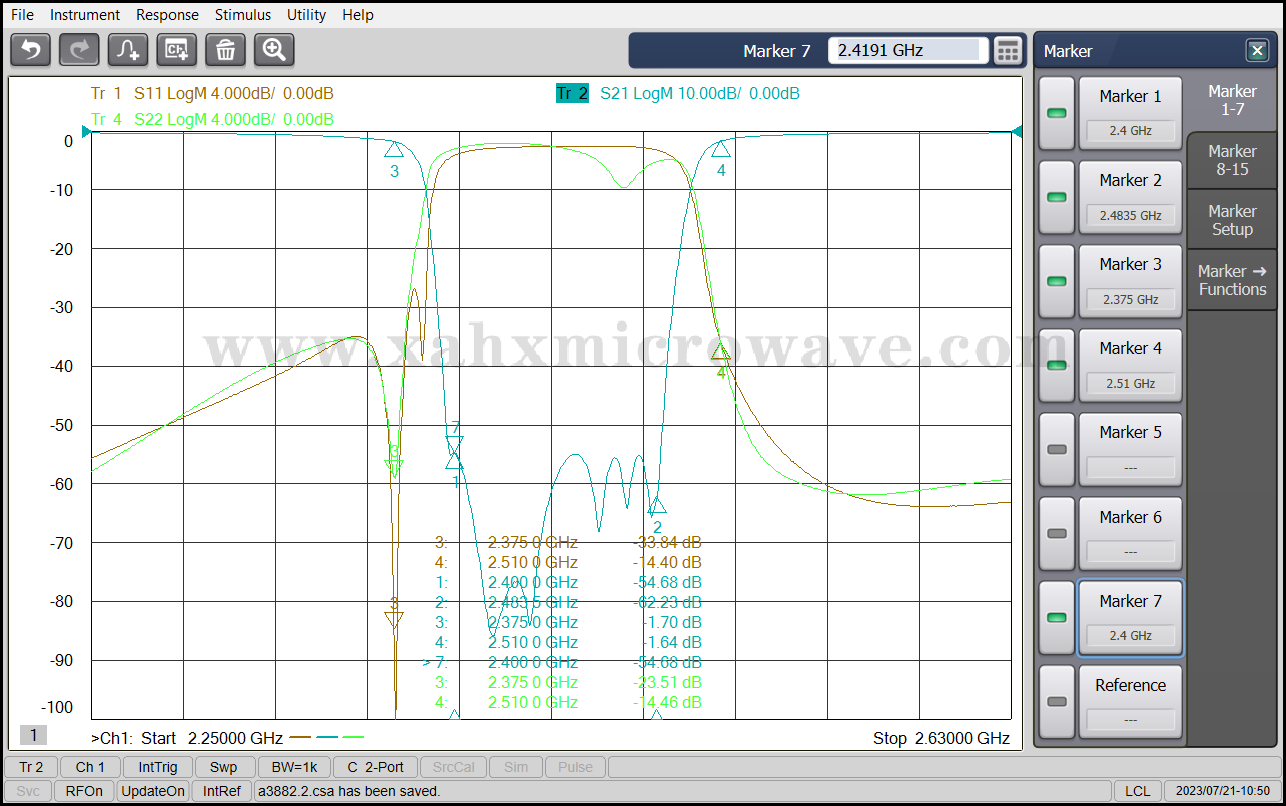

Test Curve
