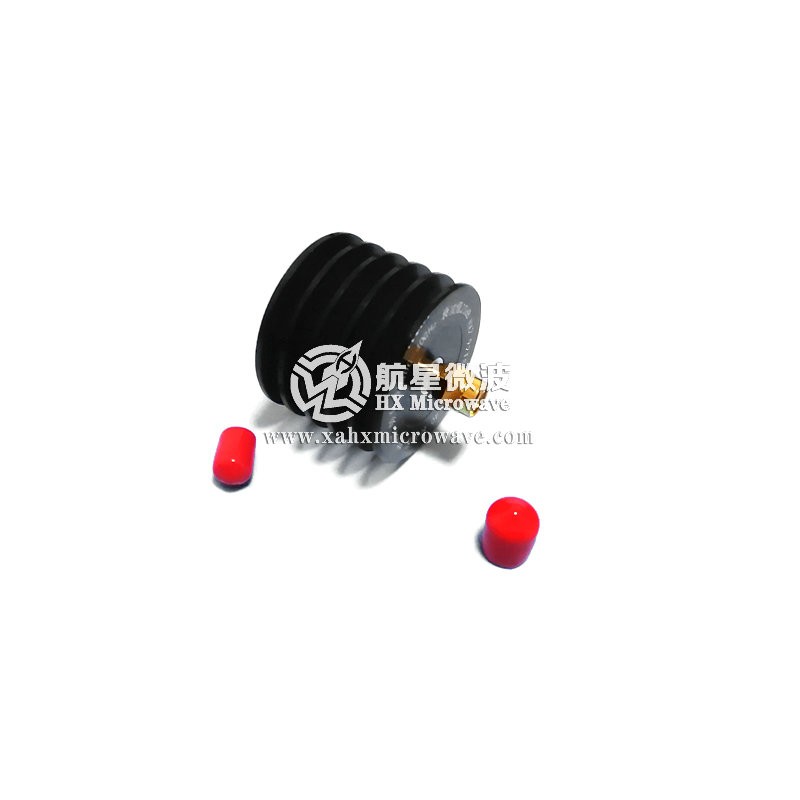

10W Termination Load

  • DC~40GHz_10W Termination Load_DC-6GHz_DC-12.4GHz_DC-18GHz_DC-26.5GHz_DC-40GHz_N,SMA,2.92mm_10W Dummy Load
DC~40GHz_10W Termination Load_DC-6GHz_DC-12.4GHz_DC-18GHz_DC-26.5GHz_DC-40GHz_N,SMA,2.92mm_10W Dummy Load

DC~40GHz_10W Termination Load_DC-6GHz_DC-12.4GHz_DC-18GHz_DC-26.5GHz_DC-40GHz_N,SMA,2.92mm_10W Dummy Load

  • Power：10W
  • Frequency：DC~40GHz
  • Connector：N,SMA,2.92mm
  • Product description: Good heat dissipation, high cost performance ♦ Low VSWR ♦ Resistance to pulse ♦ Wide working frequency ♦ Working temperature and 55 ℃ ~ + 125 ℃
  • PDF technical index download
10W Termination Load
Technical Data Sheet
Model Frequency Connector
HXTF10-3-SMA DC-3GHz SMA(M,F)
HXTF10-6-SMA DC-6GHz SMA(M,F)
HXTF10-12.4-SMA DC-12.4GHz SMA(M,F)
HXTF10-18-SMA DC-18GHz SMA(M,F)
HXTF10-26.5-SMA DC-26.5GHz SMA(M,F)
HXTF10G-3-N DC-3GHz N/SMA/TNC
HXTF10G-6-N DC-6GHz N/SMA/TNC
HXTF10G-12.4-N DC-12.4GHz N/SMA/TNC
HXTF10G-18-N DC-18GHz N/SMA/TNC
HXTF10-26.5-2.92 DC-26.5GHz 2.92mm(M.F)
HXTF10-32-2.92 DC-32GHz 2.92mm(M.F)
HXTF10-36-2.92 DC-36GHz 2.92mm(M.F)
HXTF10-40-2.92 DC-40GHz 2.92mm(M.F)
