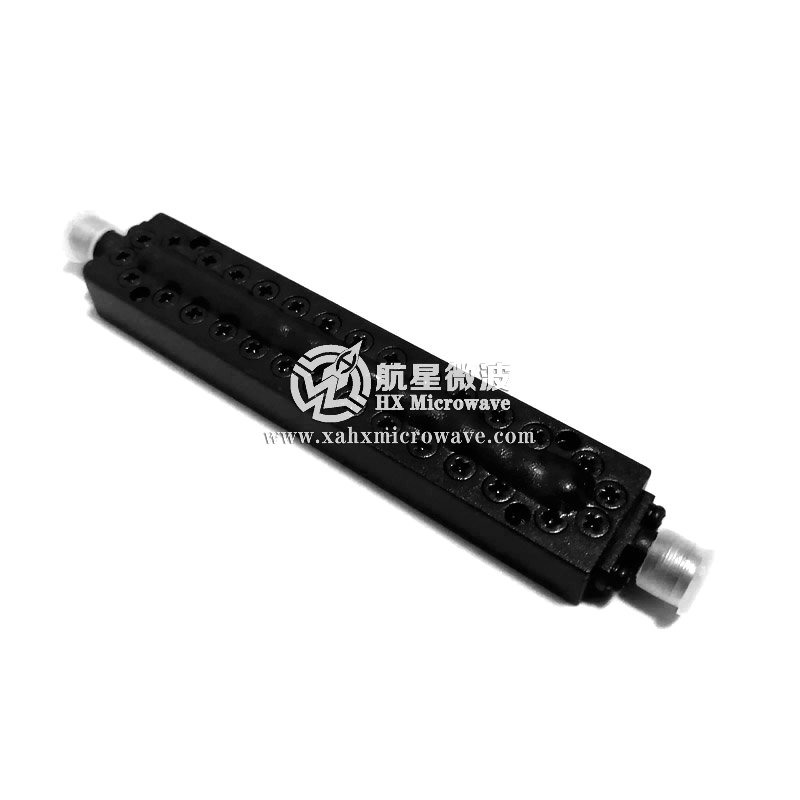

  • 30.6-33.6GHz Cavity Band Pass Filter
30.6-33.6GHz Cavity Band Pass Filter

30.6-33.6GHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA201
  • frequency:30.6 ~ 33.6GHz
  • Stop Band Rejection：≥60dB
  • Connectors：2.92mm(K)-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 32.1GHz
● Pass Band Frequency 30.6 ~ 33.6GHz
● Pass Band Insertion Loss ≤2.0dB
● Pass Band Ripple ≤1.0dB
● Pass Band VSWR ≤1.5:1
● Stop Band Rejection ≥60dB @ DC ~ 29.4GHz ≥60dB @ 35 ~ 46GHz
● Impedance 50 Ohms
● Power Handling 5W Max.
● Connectors 2.92mm(K)-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
