Technical Data Sheet
●	Center Frequency (F0)	39.5GHz
●	Pass Band Frequency	37～42GHz
●	Pass Band Insertion Loss	≤1.8dB
●	Pass Band VSWR	≤1.5:1
●	Stop Band Rejection	≥60dB @ DC～35.4GHz   ≥55dB @ 43.6～50GHz
●	Impedance	50 ohms
●	Power Handling	≤5W
●	Connectors	Input: 2.92mm(K)-Male  Output: 2.92mm(K)- Female
●	Surface Finish	Black Paint
●	Temperature Range	-30℃～+70℃

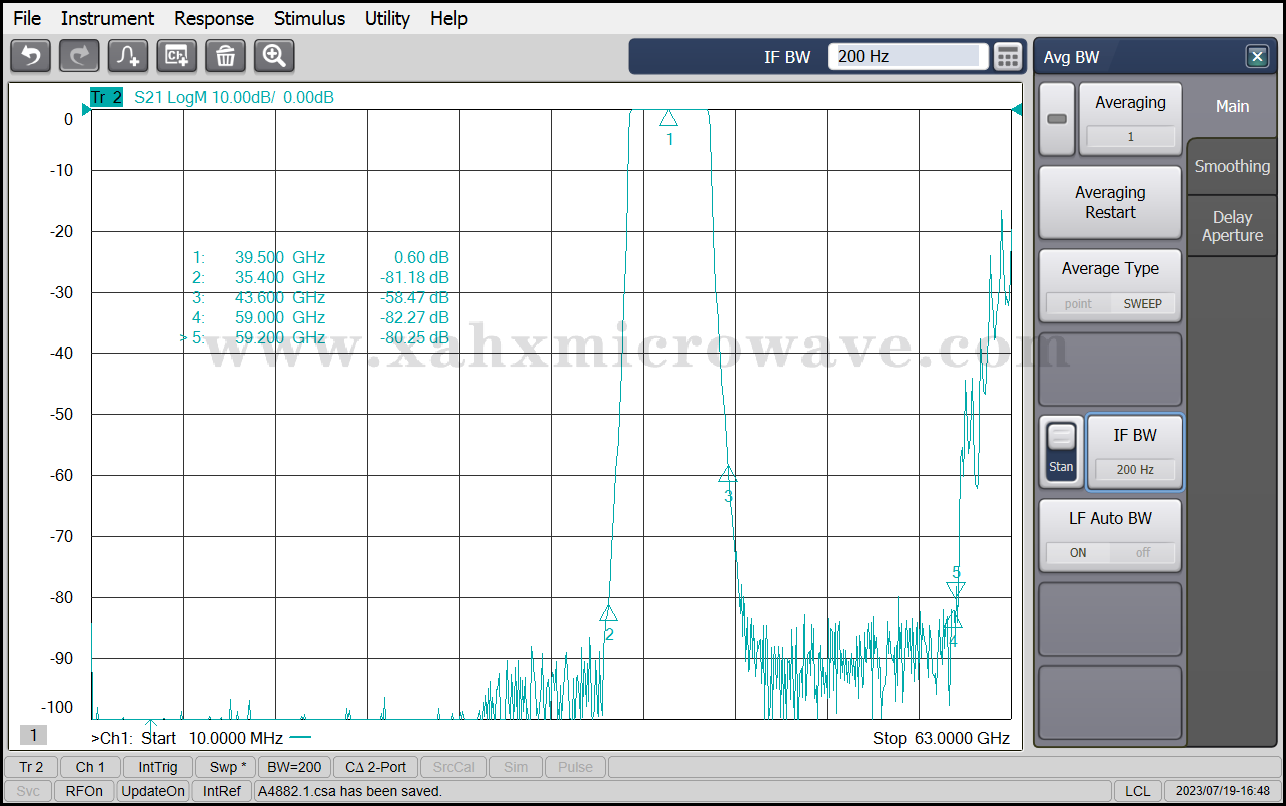

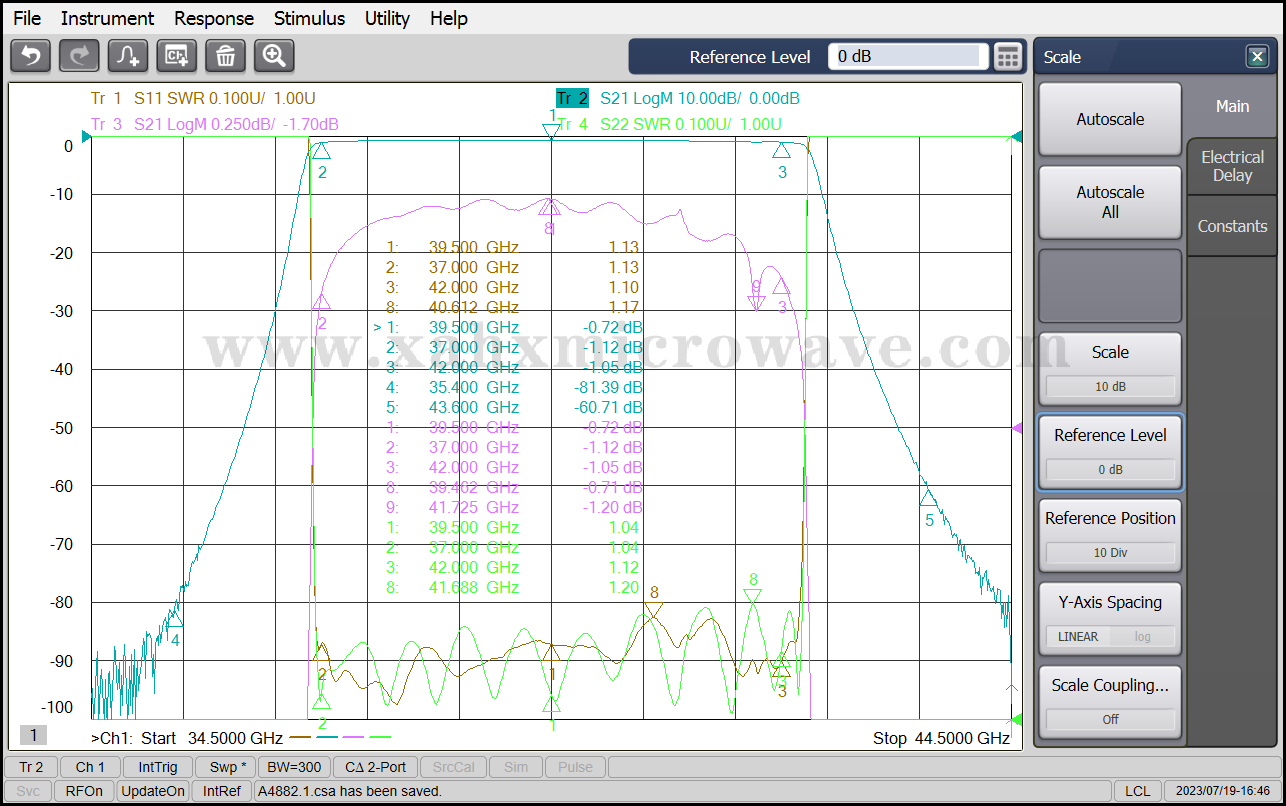

Test Curve
