Cavity Band Rejection Filter

  • 935-960MHz Cavity Band Rejection Filter

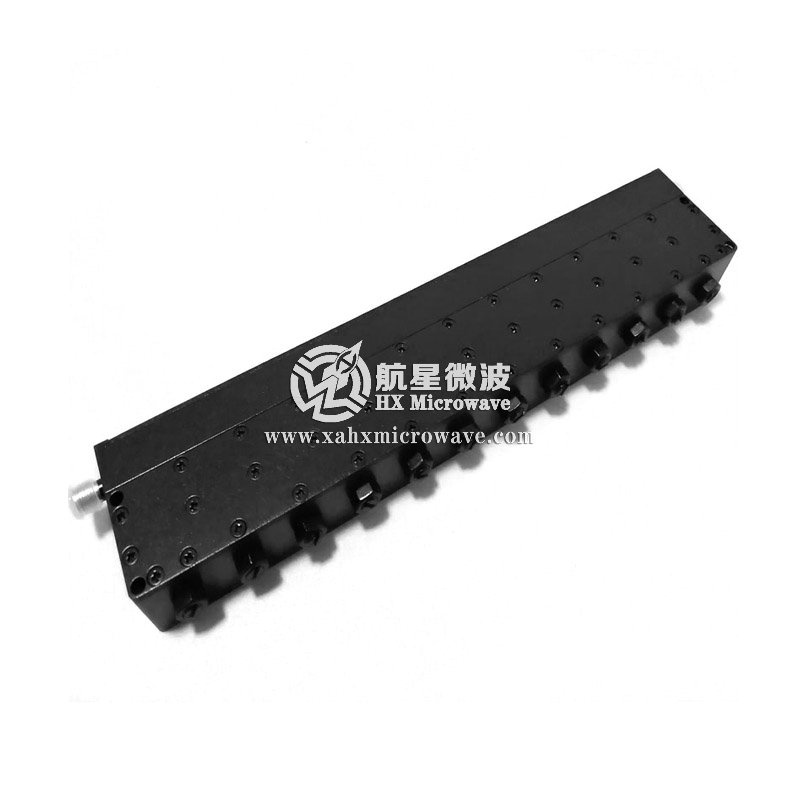

935-960MHz Cavity Band Rejection Filter

935-960MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA124
  • Stop Band Frequency：935-960MHz
  • Stop Band Attenuation：≥50dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Stop Band Frequency 935 ~ 960MHz
● Stop Band Attenuation ≥50dB
● Pass Band Frequency DC ~ 907MHz , 988 ~ 2700MHz
● Pass Band Insertion Loss ≤1.5dB
● Pass Band VSWR ≤1.5:1
● Impedance 50 Ohms
● Power 20W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -20℃ ~ +60℃
Test Curve
