Technical Data Sheet
●	Stop Band Frequency	824 ~ 849MHz
●	Stop Band Attenuation	≥40dB
●	Pass Band Frequency	DC ~ 795MHz , 878 ~ 2400MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.5:1 @ DC ~ 795MHz , 878 ~ 2000MHz
		≤2.0:1 @ 2000 ~ 2400MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-0℃ ~ +50℃

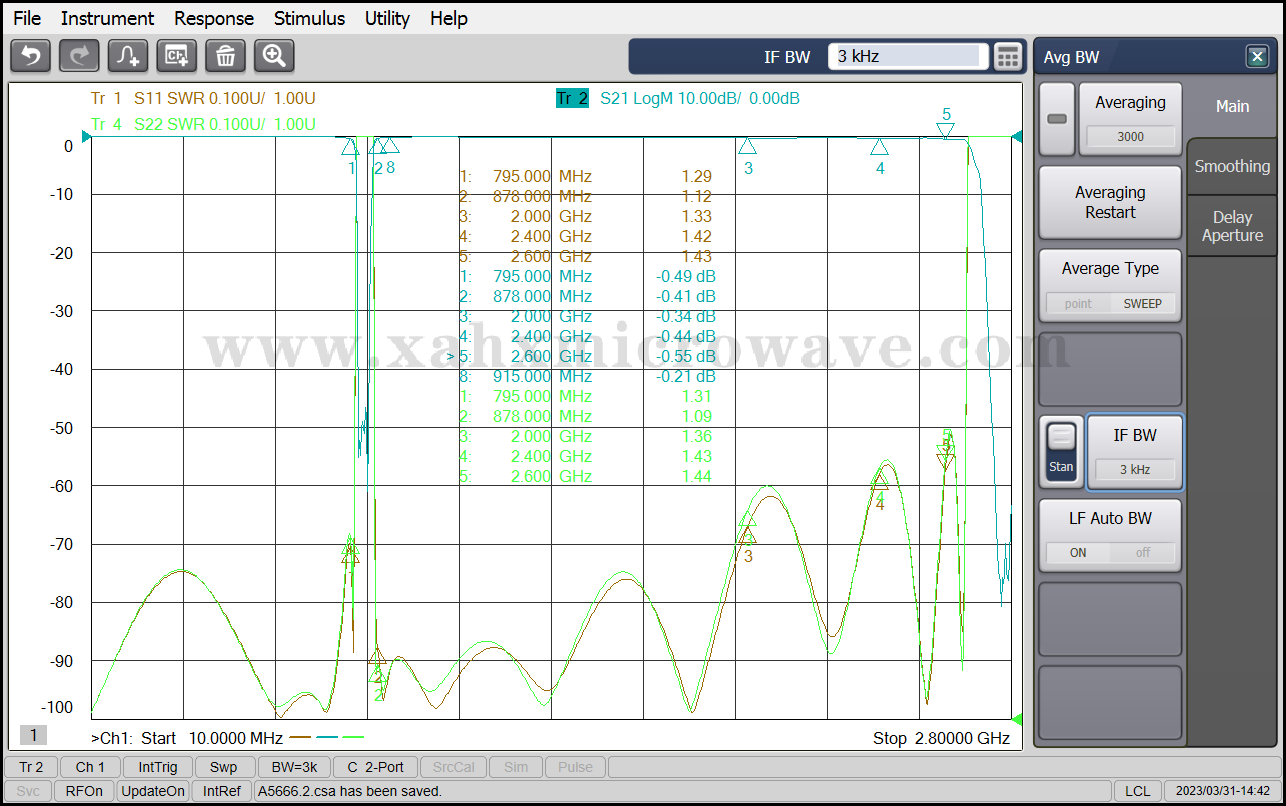

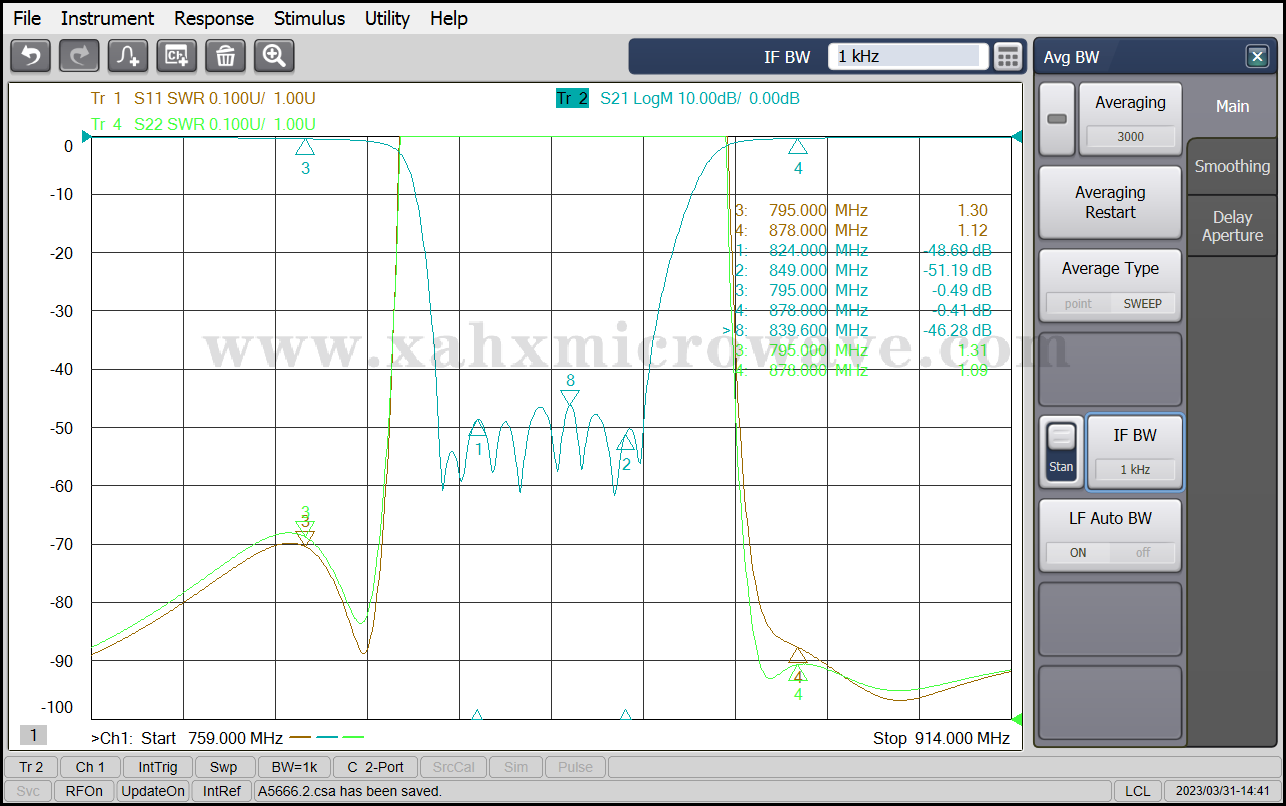

Test Curve
