Cavity Band Rejection Filter

  • 3400-3800MHz Cavity Band Rejection Filter

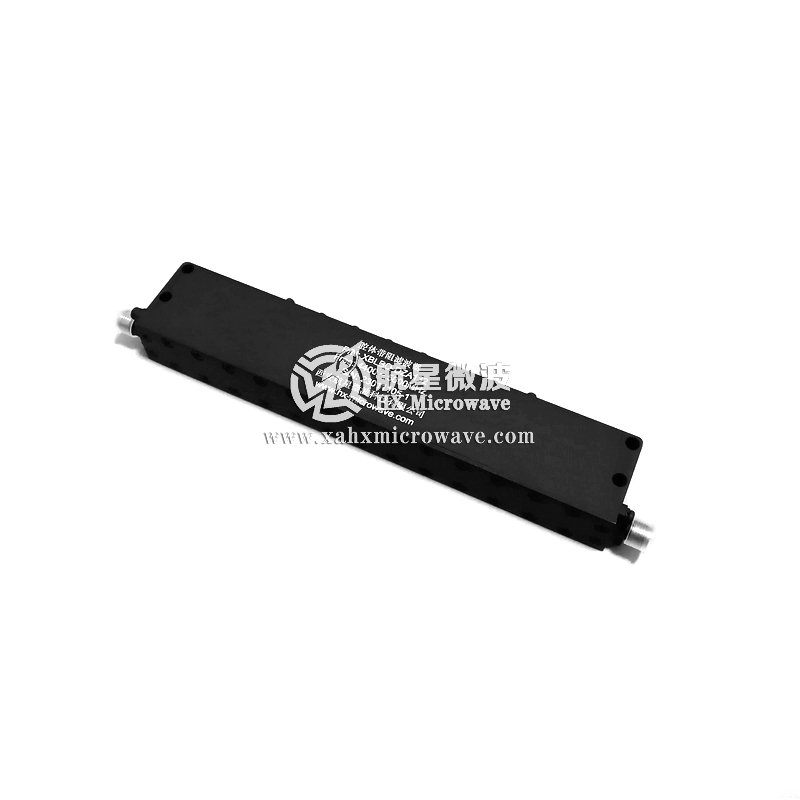

3400-3800MHz Cavity Band Rejection Filter

3400-3800MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA133
  • Stop Band Frequency：3400-3800MHz
  • Stop Band Attenuation:≥50dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Stop Band Frequency 3400 ~ 3800MHz
● Stop Band Rejection ≥45dB
● Pass Band Frequency DC ~ 3180MHz , 4020 ~ 8000MHz
● Pass Band Insertion Loss ≤2.5dB
● Pass Band VSWR ≤1.7:1
● Impedance 50 Ohms
● Power 10W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -20℃ ~ +60℃

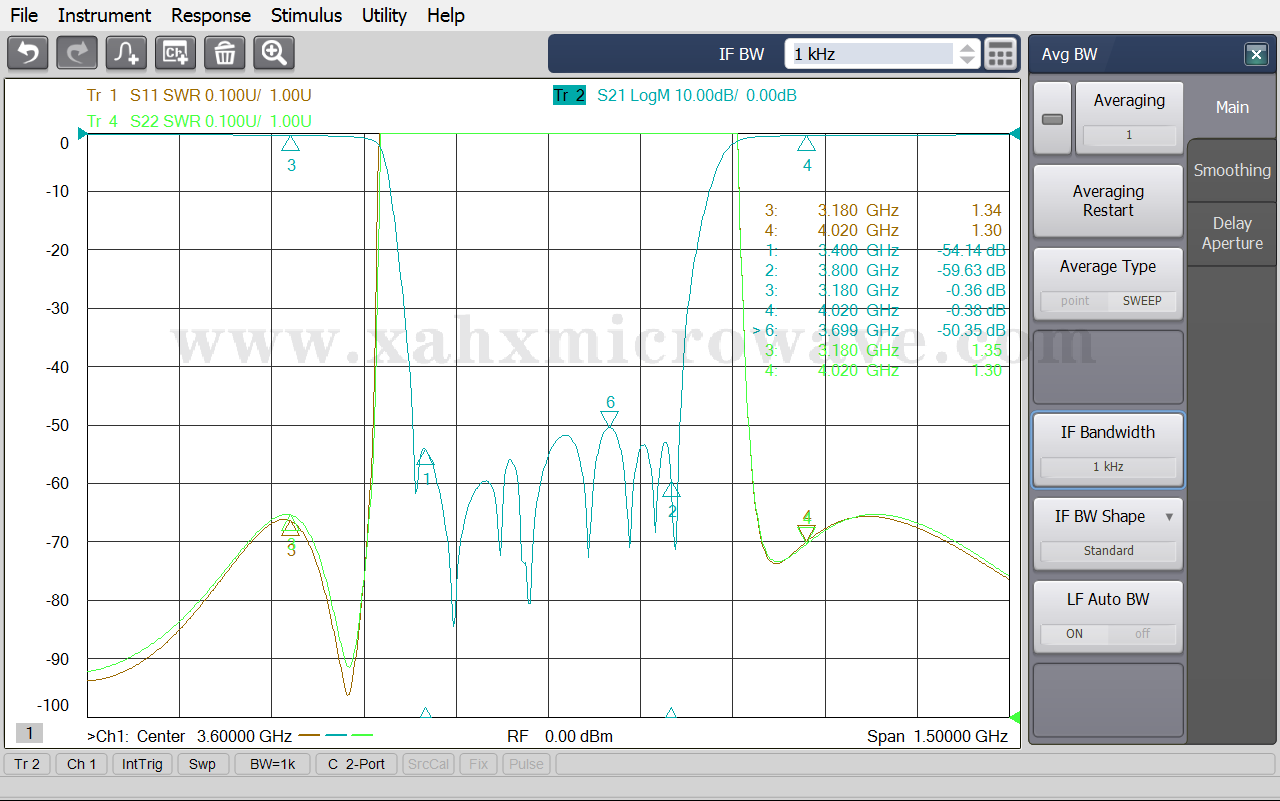

Test Curve
