Cavity Band Rejection Filter

  • 3600-3800MHz Cavity Band Rejection Filter

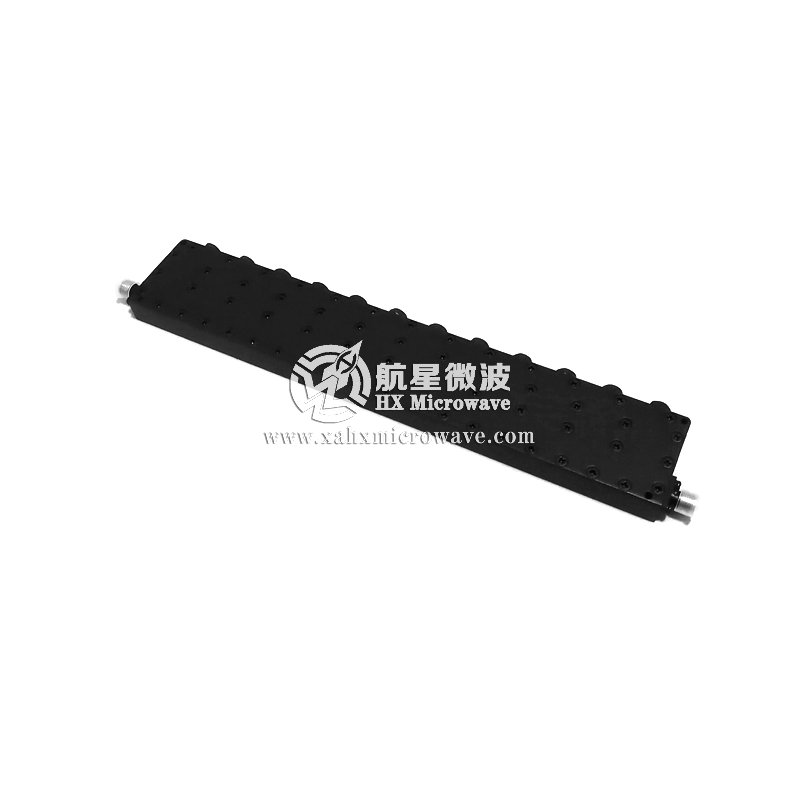

3600-3800MHz Cavity Band Rejection Filter

3600-3800MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA134
  • Stop Band Frequency：3600-3800MHz
  • Stop Band Attenuation:≥45dB
  • Connectors：SMA-Female
  • Product description: high stop band suppression_small insertion loss_full frequency model_low standing wave_small insertion loss_various frequency band filters can be customized according to customer needs_customizable fr
  • PDF technical index download
Technical Data Sheet
● Stop Band Frequency 3600～3800MHz
● Stop Band Attenuation ≥45dB
● Pass Band Frequency DC～3560MHz & 3840～7000MHz
● Pass Band Insertion Loss ≤3.0dB
● Pass Band VSWR ≤1.7:1
● Impedance 50 ohms
● Surface Finish Black Paint
● Power Handling ≤20W
● Connectors SMA-Female

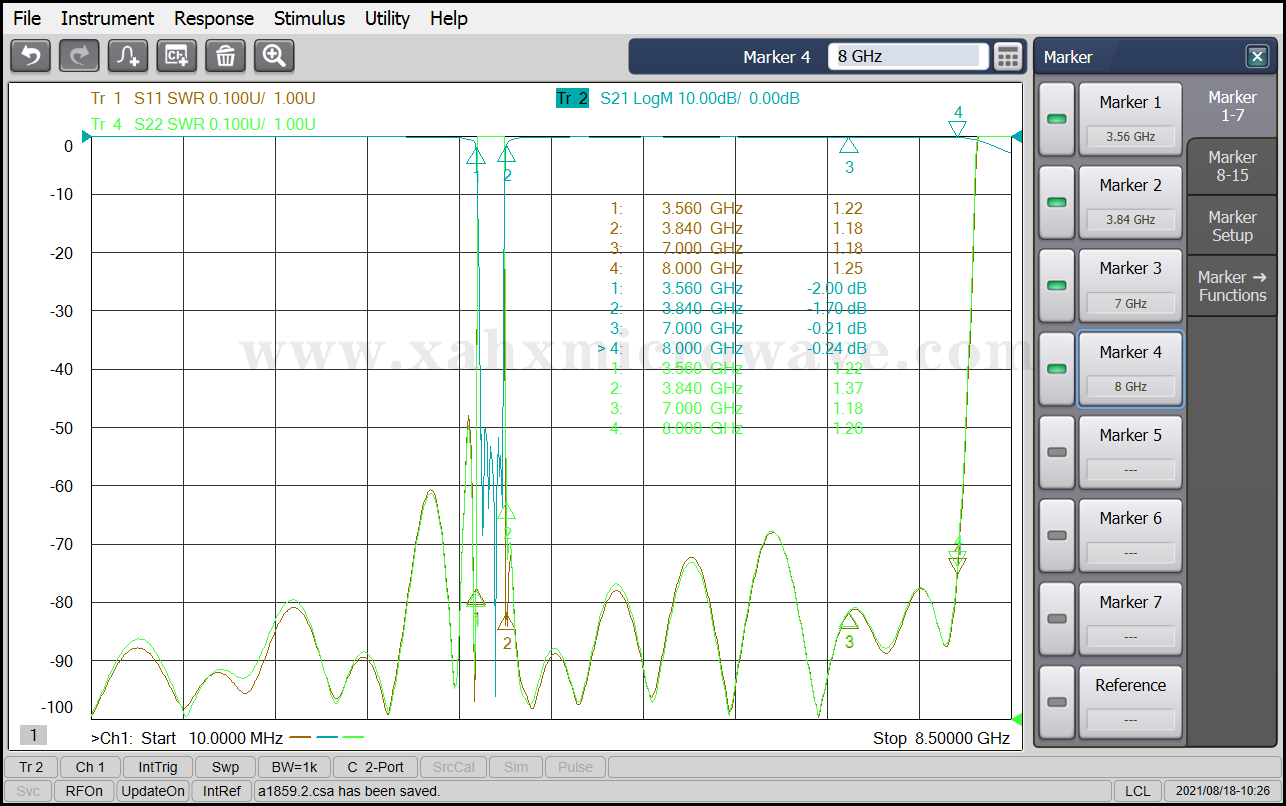

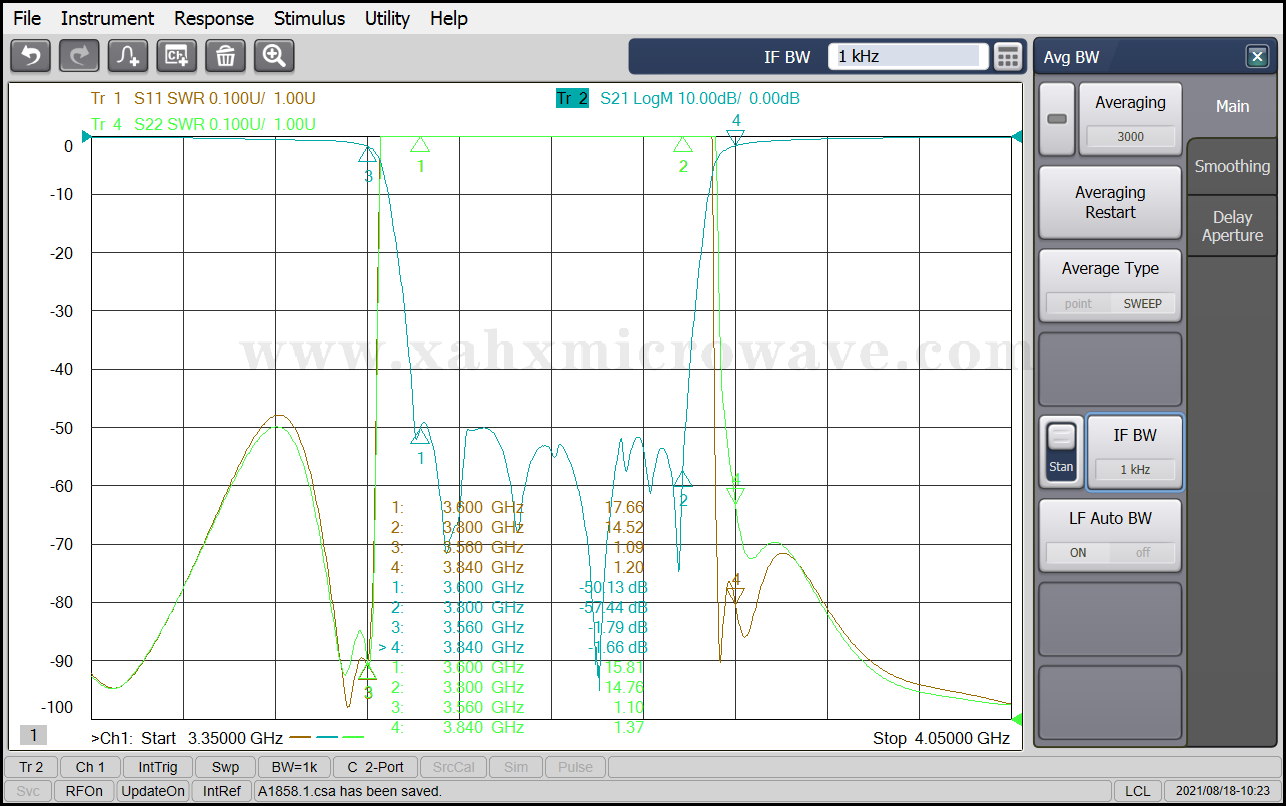

Test Curve
