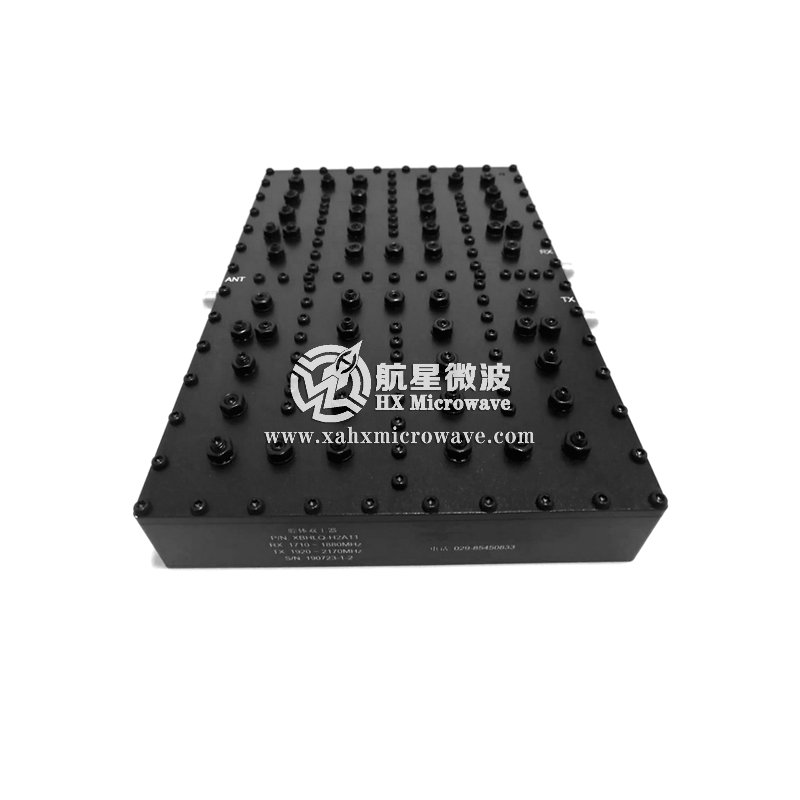

| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Center Frequency(F0) | 1795MHz | 2045MHz |
| ● | Pass Band Frequency | 1710 ~ 1880MHz | 1920 ~ 2170MHz |
| ● | Pass Band Insertion Loss | ≤1.3dB | ≤1.3dB |
| ● | Pass Band VSWR | ≤1.4:1 | ≤1.4:1 |
| ● | Stop Band Attenuation | ≥60dB @ 1920 ~ 2170MHz | ≥60dB @ 1710 ~ 1880MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 50W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Dimensions | 209*141*34mm | |
| ● | Working Environment | Indoor | |
| Test Curve | |||
