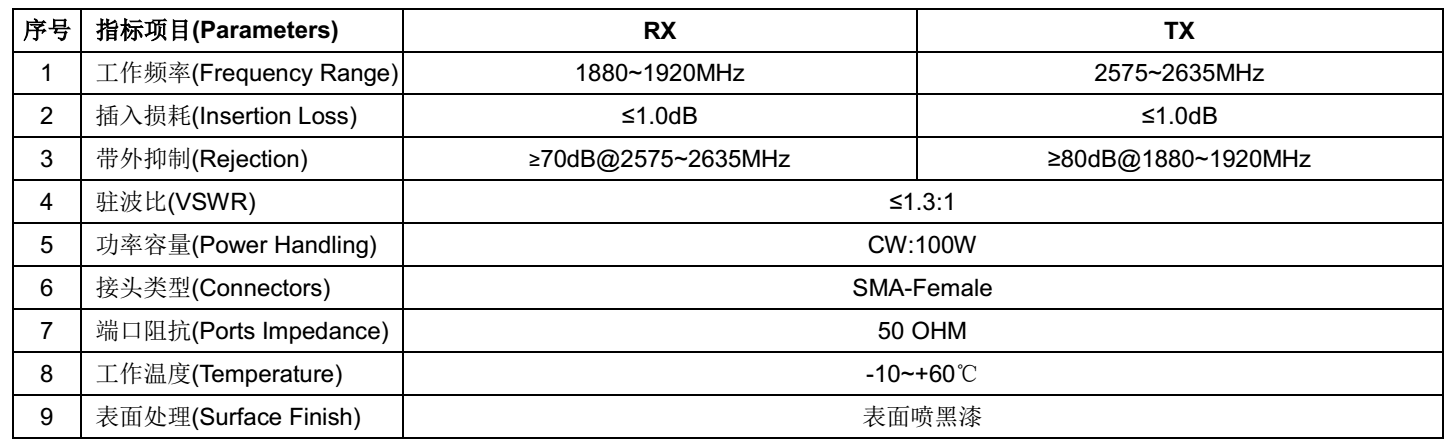

| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| 1 | Pass Band Frequency | 1880 ~ 1920MHz | 2575 ~ 2635MHz |
| 2 | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| 3 | VSWR | ≤1.30:1 | ≤1.30:1 |
| 4 | Stop Band Attenuation | ≥80dB @ 2575 ~ 2635MHz | ≥80dB @ 1880 ~ 1920MHz |
| 5 | Impedance | 50 Ohms | |
| 6 | Average Power | 100W Max. | |
| 7 | Connectors | SMA-Female | |
| 8 | Surface Finish | Painted Black | |
| 9 | Temperature Range | -10℃ ~ +60℃ | |
| 10 | Dimensions | 89*117*34mm | |
| 11 | Working Environment | Indoor | |
| Test Curve | |||
