Frequency Combiner/Multiplexer

  • 1880-1920MHz/2300-2400MHz/2496-2690MHz Cavity Triplexer
1880-1920MHz/2300-2400MHz/2496-2690MHz Cavity Triplexer

1880-1920MHz/2300-2400MHz/2496-2690MHz Cavity Triplexer

  • P/N:HXHLQ-H3A28
  • frequency:1880-1920MHz/2300-2400MHz/2496-2690MHz
  • isolation：≥75dB
  • Connectors：SMA-Female
  • Product description: ♦isolation of high，high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency Are available upon request all kin
  • PDF technical index download

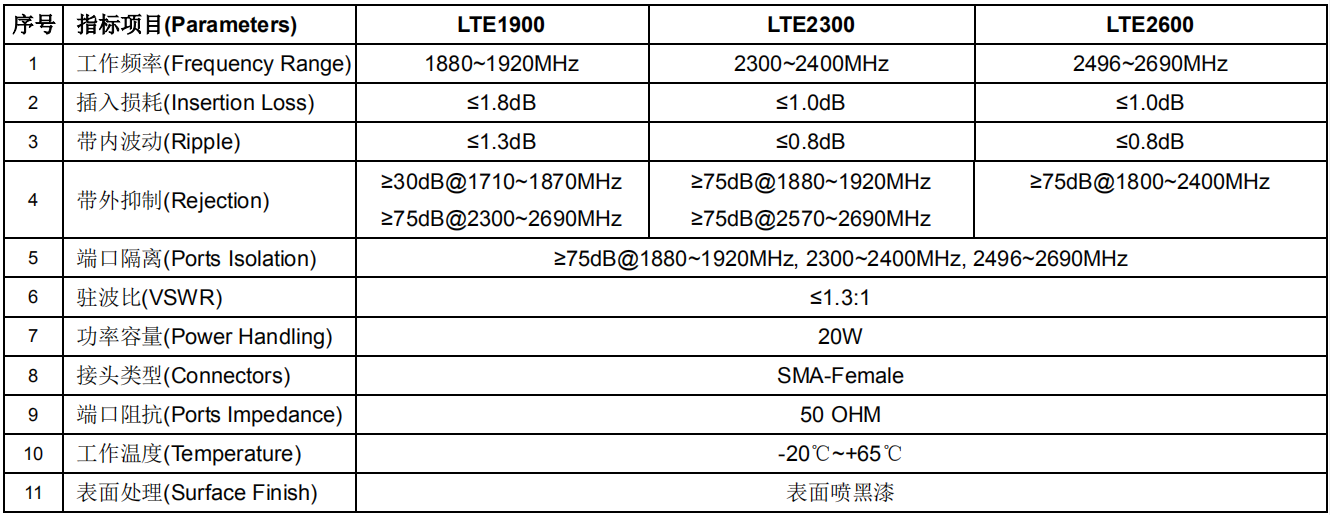

Technical Data Sheet
Serial Parameters P1 P2 P3
1 Pass Band Frequency 1880 ~ 1920MHz 2300 ~ 2400MHz 2496 ~ 2690MHz
2 Pass Band Insertion Loss ≤1.8dB ≤1.0dB ≤1.0dB
3 Pass Band Ripple ≤1.3dB ≤0.8dB ≤0.8dB
4 Pass Band VSWR ≤1.3:1 ≤1.3:1 ≤1.3:1
5 Stop Band Rejection ≥30dB @ 1710 ~ 1870MHz ≥75dB @ 1880 ~ 1920MHz ≥75dB @ 1800 ~ 2400MHz
≥75dB @ 2300 ~ 2690MHz ≥75dB @ 2570 ~ 2690MHz
6 Port Isolation ≥75dB@1880 ~ 1920MHz&2300 ~ 2400MHz&2496 ~ 2690MHz
7 Impedance 50 Ohms
8 Power 20W Max.
9 Connectors SMA-Female
10 Surface Finish Painted Black
11 Temperature Range -20℃ ~ +65℃
12 Working Environment Indoor
Test Curve
