Circulator

  • Coaxial Circulator_30MHz-40GHz_Frequency Range Optional HX-THA Series

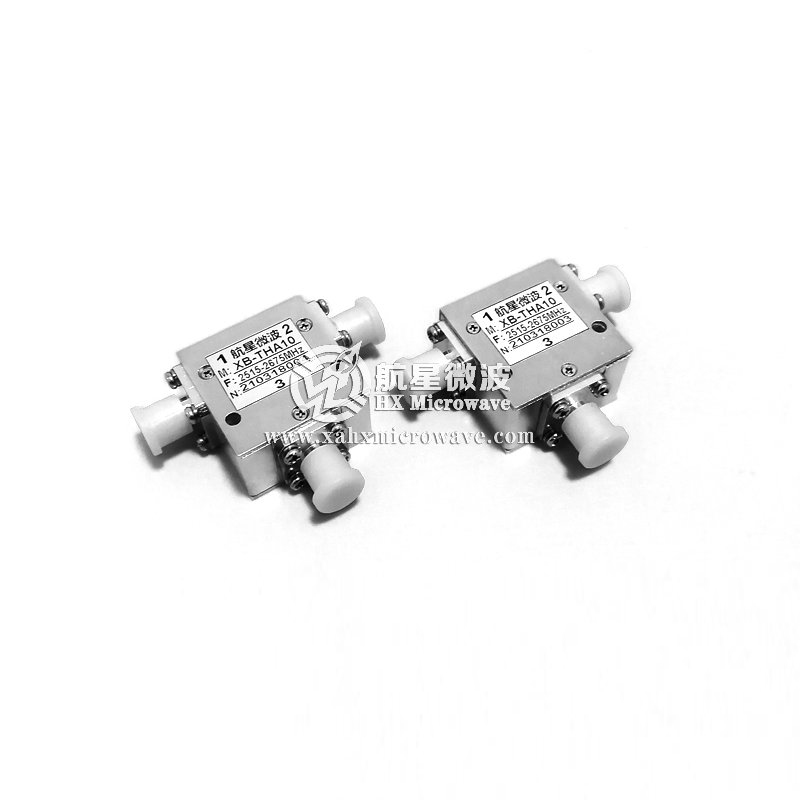

Coaxial Circulator_30MHz-40GHz_Frequency Range Optional HX-THA Series

Coaxial Circulator_30MHz-40GHz_Frequency Range Optional HX-THA Series

  • P/N：HX-THAXXX（Series）
  • Frequency Range：30MHz-40GHZ
  • Connector：N /SMA
  • Product description: The frequency range of HX-THA series coaxial circulators can be customized from 30MHz to 40GHz. Product features: low insertion loss, high isolation, high power, low standing wave.
  • PDF technical index download
●Model Frequency Range Max Bandwidth Loss isolation VSWR Power Size Connectors
(MHz＆GHz) (F0@%) (dB) (dB) . (W) (mm) Optional
HX-THA100 30-40MHz 5% 2.1 15 ≤1.35 100 60*60*25.5 SMA, N
HX-THA101 40-400MHz 50% 0.9 17 ≤1.35 100 60*60*25.5 SMA, N
HX-THA102 160-330MHz 20% 0.5 18 ≤1.3 400 52*57*22 SMA, N
HX-THA103 250-1400 MHz 40% 0.5 22 ≤1.25 300 45*50*25 SMA, N
HX-THA104 300-400MHz 10% 0.5 22 ≤1.25 150 52×58×22 SMA, N
HX-THA105 400-600MHz 10% 0.5 22 ≤1.25 150 44×50×21 SMA, N
HX-THA106 300-1000MHz 50% 0.5 14 ≤1.45 30 41*49*20 SMA, N
HX-THA107 300-1850MHz 30% 0.5 22 ≤1.25 300 35*38*15 SMA, N
HX-THA108 1.0-2.0GHz 20% 0.5 20 ≤1.3 20 25×25×15 SMA.N
HX-THA114 3.5-6.5GHz 10% 0.5 18 ≤1.25 20 20×24×18 SMA, N
HX-THA115 5-7GHzGHz 5% 0.7 35 ≤1.25 10 30×21×14 SMA
HX-THA132 22-36GHz 10% 0.6 18 1.3 5 12*15*12.7 2.92mm
HX-THA116 0.8-2GHz Full 1.4 12 ≤1.65 50 56*56*20 SMA, N
HX-THA117 950-2000MHz Full 1.1 16 ≤1.4 150 64*66*26 SMA, N
HX-THA118 1.5-3GHz Full 0.9 16 ≤1.35 150 50.8*49.5*19 SMA, N
HX-THA119 1.7-3.5GHz Full 0.9 16 ≤1.4 150 40*40*20 SMA, N
HX-THA120 2-4GHz Full 0.8 16 ≤1.35 150 32*34*21 SMA, N
HX-THA121 2-4GHz Full 0.8 16 ≤1.35 150 32*34*21 SMA, N
HX-THA122 2-6GHz Full 1.1 10 ≤1.55 50 30.5*30.5*15 SMA, N
HX-THA123 3-6GHz Full 0.8 18 ≤1.3 150 25.4*28*14 SMA, N
HX-THA124 4.0-8GHz Full 0.9 17 ≤1.35 60 21*22.5*15 SMA
HX-THA125 6.0-12GHz Full 0.9 14 ≤1.5 30 13*19*12.7 SMA
HX-THA126 6.0-18GHz Full 1.8 8 ≤2 30 16*21.5*14 SMA
HX-THA127 17-33GHz Full 1.2 12 1.65 10 12*15*12.8 2.92mm
HX-THA130 22-33GHz Full 0.8 14 1.45 10 12*15*12.8 2.92mm
HX-THA131 26.5-40GHz Full 1.3 14 1.65 10 13*25*16.8 2.92mm
