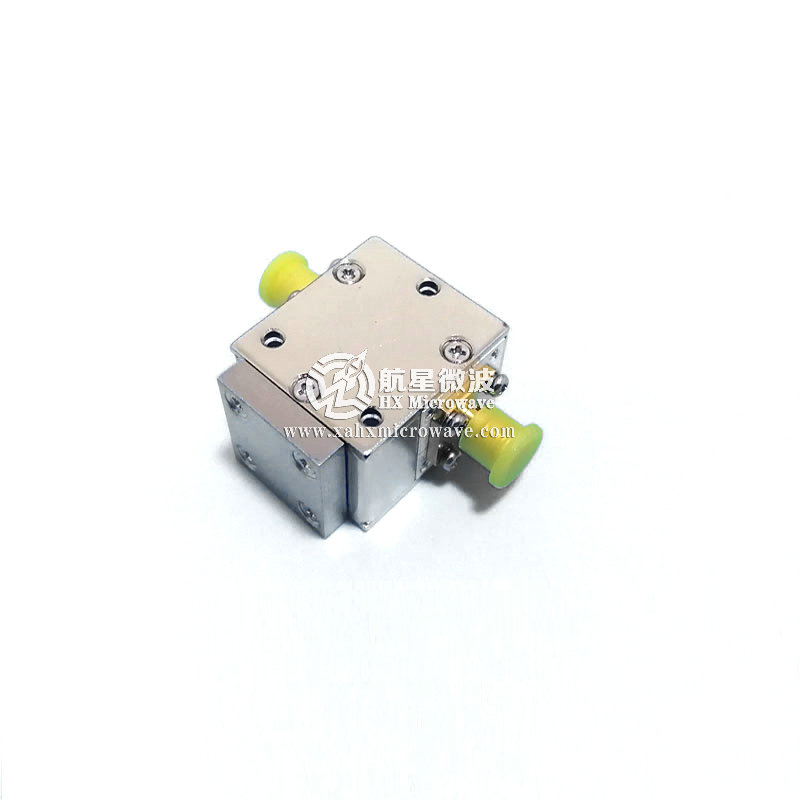

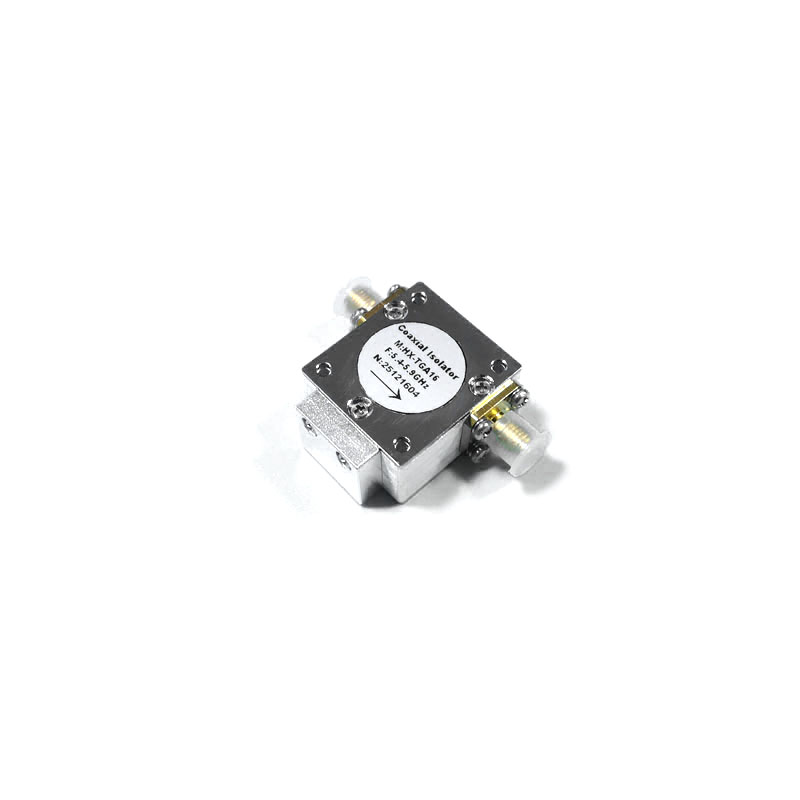

  • Coaxial isolator_30MHz-36GHz_Frequency Range Optional HX-TGA Series
Coaxial isolator_30MHz-36GHz_Frequency Range Optional HX-TGA Series

Coaxial isolator_30MHz-36GHz_Frequency Range Optional HX-TGA Series

  • P/N：HX-TGAXXX（Series）
  • Frequency Range：30MHz-36GHz
  • Connector：N/SMA/2.92mm
  • Product description: The frequency range of HX-TGA series coaxial isolators can be customized from 30MHz to 36GHz. Product features: low insertion loss, high isolation, high power, low standing wave.
  • PDF technical index download

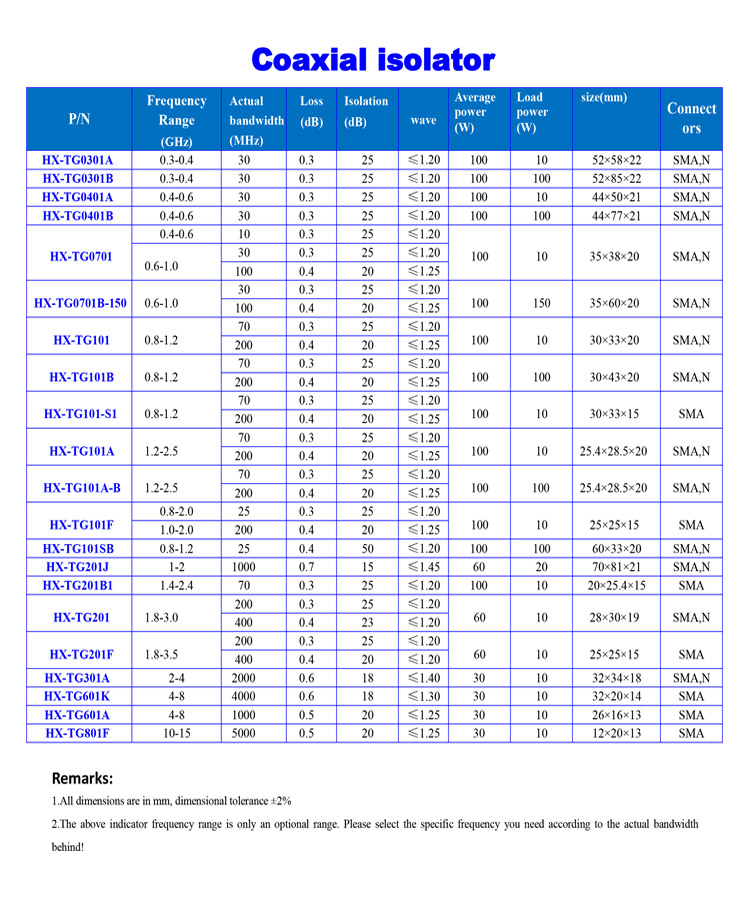

●Model Frequency Range Max Bandwidth Loss isolation VSWR Power Size Connectors
(MHz＆GHz) (F0@%) (dB) (dB) . (W) (mm) Optional
HX-TGA100 80-130MHz 3% 0.6 18 1.3 200W 80*80*25 SMA,N
HX-TGA105 300-400MHz 10% 0.4 24 1.25 100W 52*58*22 SMA,N
HX-TGA106 300-500MHz Full 1 17 1.35 50W 41*65*20 SMA,N
HX-TGA108 30-40MHz 5% 2.2 17 1.35 50W 60*60*25.5 SMA,N
HX-TGA111 160-330 MHz 20% 0.5 18 1.3 500W 52*57.5*22 SMA,N
HX-TGA113 300-1000MHz 50% 0.5 15 1.45 100W 41*49*20 SMA,N
HX-TGA117 700-5000MHz 25% 0.4 22 1.25 200W 25.4*28.5*15 SMA,N
HX-TGA119 950-2000MHz Full 0.8 17 1.45 150W 64*66*26 SMA,N
HX-TGA121 1.5-3.5GHz 60% 0.8 17 1.4 150W 40*40*20 SMA,N
HX-TGA122 2.0-4.0GHz Full 0.5 17 1.35 150W 32*34*21 SMA,N
HX-TGA123 2.0-6.0GHz Full 1 11 1.55 50W 30.5*30.5*15 SMA,N
HX-TGA124 2.0-8.0GHz Full 2 12 1.65 30W 62*36.8*19.6 SMA,N
HX-TGA125 3.0-6.0GHz Full 0.6 18 1.3 150W 25.4*28*15 SMA,N
HX-TGA126 4.0-8.0GHz Full 0.8 17 1.3 60W 21*22.5*15 SMA,N
HX-TGA127 0.8-2.0GHz Full 1.5 12 1.65 50W 56*56*20 SMA,N
HX-TGA128 1.0 - 2.0GHz Full 0.8 15 1.45 150W 64*66*26 SMA,N
HX-TGA129 1.35-2.7GHz Full 0.8 17 1.35 100W 50.8*49.5*19 SMA,N
HX-TGA130 1.5-3.0GHz Full 0.8 17 1.35 100W 40*40*20 SMA,N
HX-TGA131 6-12GHz Full 1.6 9 1.95 30W 16*21.5*14 SMA
HX-TGA132 6-18GHz Full 1.6 8 2 30W 16*21.5*14 SMA
HX-TGA134 12-18GHz Full 0.9 16 1.45 30W 16*21.5*14 SMA
HX-TGA135 8-12GHz Full 0.6 17 1.4 30W 13*19*12.7 SMA
HX-TGA137 6-12GHz 40% 0.5 18 1.3 20W 13*19*12.7 SMA
HX-TGA139 18-31GHz 30% 1 18 1.4 10W 10.2*25.6*12.5 SMA
HX-TGA140 22-32GHz 5% 0.8 18 1.3 10W 12*20*13 2.92mm
HX-TGA141 24-36GHz 10% 0.8 17 1.35 5W 12*15*12.7 2.92mm
