16 way Microstrip Power Divider

  • 6-18GHz_16 Way Power Divider

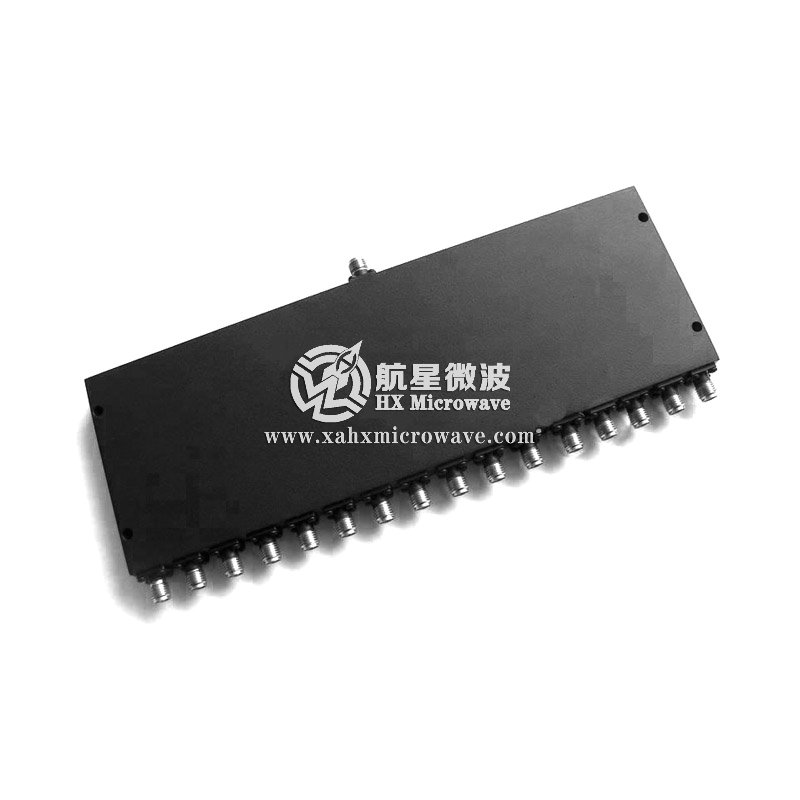

6-18GHz_16 Way Power Divider

6-18GHz_16 Way Power Divider

  • P/N：HXGF-G16A01
  • Frequency Range：6.0-18GHz
  • isolation：≥16dB
  • Connectors：SMA-Female
  • Product description: ♦High frequency bandwidth ♦ Low VSWR ♦ Isolation degree is high ♦ Small insertion loss♦Can be customized
  • PDF technical index download
Technical Data Sheet
● Way 16
● Frequency Range 6～18GHz
● Insertion Loss ≤15.0dB (Contain theory loss 12dB)
● VSWR ≤1.8:1
● Isolation ≥16dB
● Amplitude Balance ≤±1.0dB
● Phase Balance ≤±10°
● Power Handling Forward ≤20Watt  ;  Reversed ≤0.5Watt
● Operating Temperature -55～+85℃
● Surface Finish Black Paint
● Connectors SMA-Female
● Impedance 50 ohms
Test Curve
