Technical Data Sheet
●	Way	2
●	Frequency Range	10 ~ 50GHz
●	Insertion Loss	≤2.2dB (Does not contain theory loss 3.01dB)
●	VSWR	Input: ≤2.0:1  ;  Output: ≤2.0:1
●	Amplitude Balance	≤ ±1.0dB
●	Phase Balance	≤ ±15°
●	Isolation	≥12dB
●	Impedance	50 Ohms
●	Power	Forward: 10W Max.  ;  Reverse: 0.5W Max.
●	Connectors	2.4mm(Q)-Female
●	Surface Finish	Painted Black
●	Temperature Range	-40℃ ~ +80℃

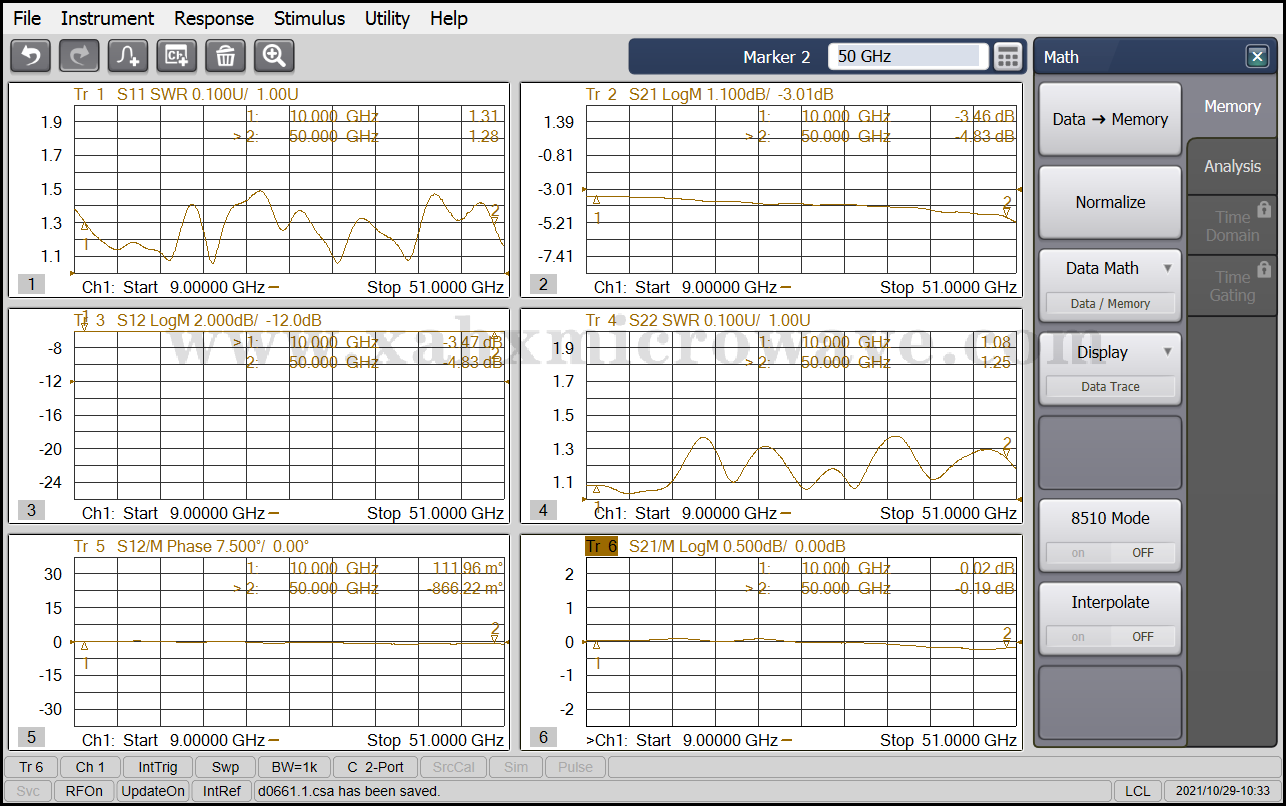

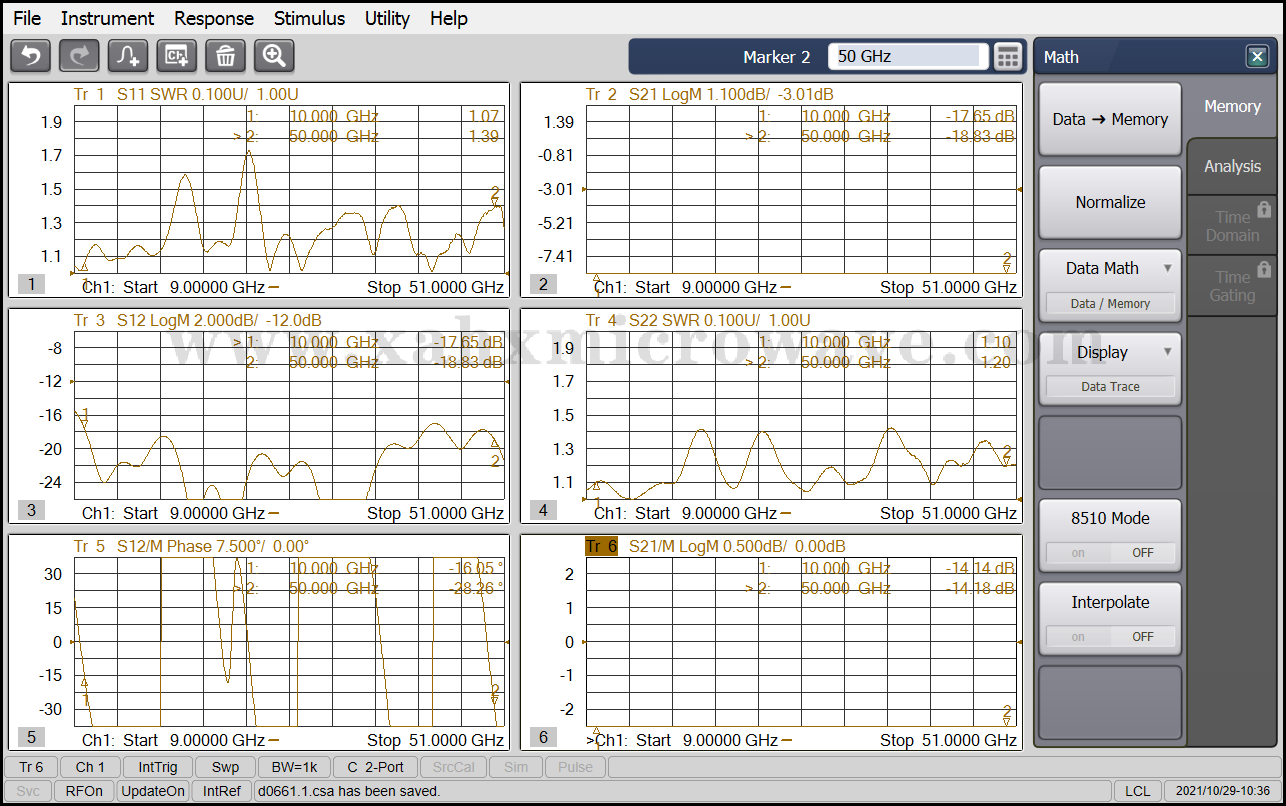

Test Curve
