Technical Data Sheet
●	Way	2
●	Frequency Range	18 ~ 40GHz
●	Insertion Loss	≤1.2dB (Does not contain theory loss 3.0dB)
●	VSWR	Input: ≤1.5:1  ;  Output: ≤1.5:1
●	Isolation	≥16dB
●	Amplitude Balance	≤ ±0.5dB
●	Phase Balance	≤ ±5°
●	Impedance	50 Ohms
●	Power	Forward:≤10W  ;  Reverse:≤1W
●	Connectors	2.92mm(K)-Female
●	Surface Finish	Painted Black
●	Temperature Range	-40℃ ~ +70℃

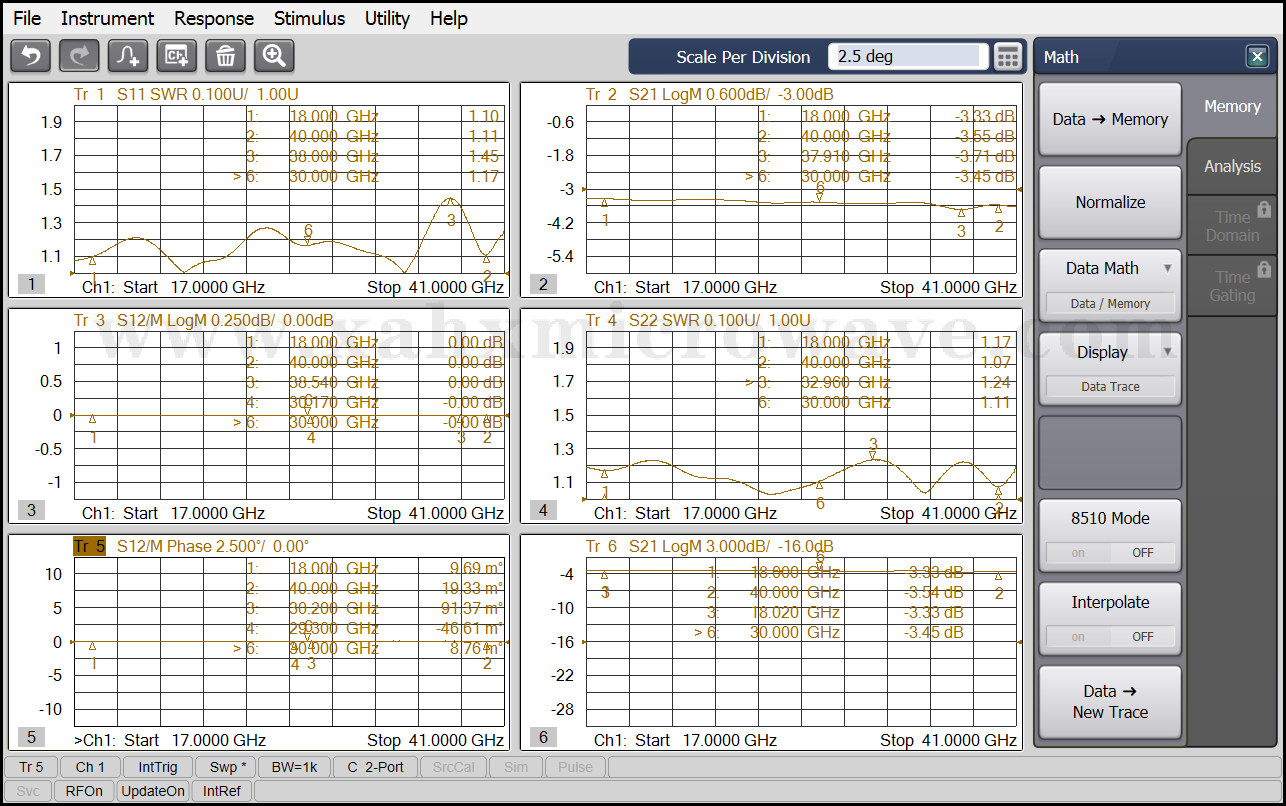

Test Curve
