Diplexer / Duplexer

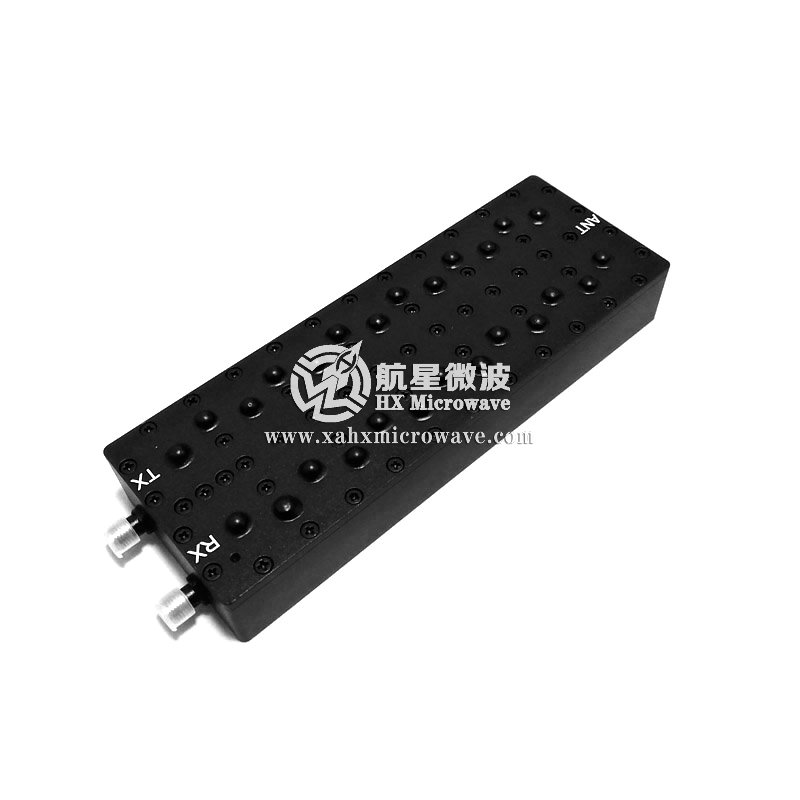

  • 3750-3800MHz 3900-3950MHz Cavity Diplexer
3750-3800MHz 3900-3950MHz Cavity Diplexer

3750-3800MHz 3900-3950MHz Cavity Diplexer

  • P/N： HXHLQ-H2A36W
  • Pass Band Frequency:3750-3800MHz 3900-3950MHz
  • Isolation：≥60dB
  • Connectors：SMA-Female
  • Product description: ♦isolation of high，high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency Are available upon request all kin
  • PDF technical index download
Technical Data Sheet
S/N Item RX TX
● Center Frequency(F0) 3775MHz 3925MHz
● Pass Band Frequency 3750 ~ 3800MHz 3900 ~ 3950MHz
● Pass Band Insertion Loss ≤1.5dB ≤1.5dB
● Pass Band VSWR ≤1.3:1 ≤1.3:1
● Isolation ≥60dB @ 3750 ~ 3800MHz , 3900 ~ 3950MHz
● Impedance 50 Ohms
● Power 50W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Dimensions 146*52*24mm
● Working Environment Indoor
Test Curve
