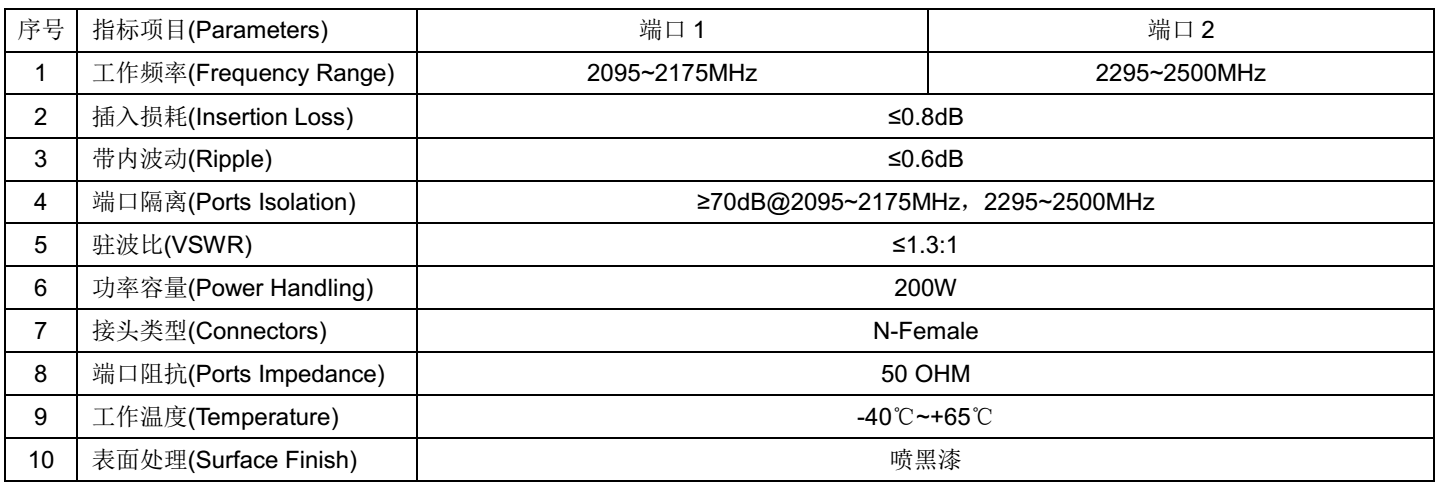

| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Pass Band Frequency | 2095 ~ 2175MHz | 2295 ~ 2500MHz |
| ● | Pass Band Insertion Loss | ≤0.8dB | ≤0.8dB |
| ● | Pass Band Ripple | ≤0.6dB | ≤0.6dB |
| ● | VSWR | ≤1.30:1 | ≤1.30:1 |
| ● | Ports Isolation | ≥70dB @ 2295 ~ 2500MHz | ≥70dB @2095 ~ 2175MHz |
| ● | Impedance | 50 Ohms | |
| ● | Average Power | 200W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Dimensions | 72*95*38mm | |
| ● | Working Environment | Indoor | |
| Test Curve | |||
