| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Center Frequency (F0) | 2535MHz | 2655MHz |
| ● | Pass Band Frequency | 2500～2570MHz | 2620～2690MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| ● | Pass Band Ripple | ≤0.5dB | ≤0.5dB |
| ● | Pass Band VSWR | ≤1.3:1 | ≤1.3:1 |
| ● | Stop Band Attenuation | ≥70dB @ 2620～2690MHz | ≥70dB @ 2500～2570MHz |
| ● | Impedance | 50 ohms | |
| ● | Power Handling | ≤30W | |
| ● | Connectors | SMA-Female | |

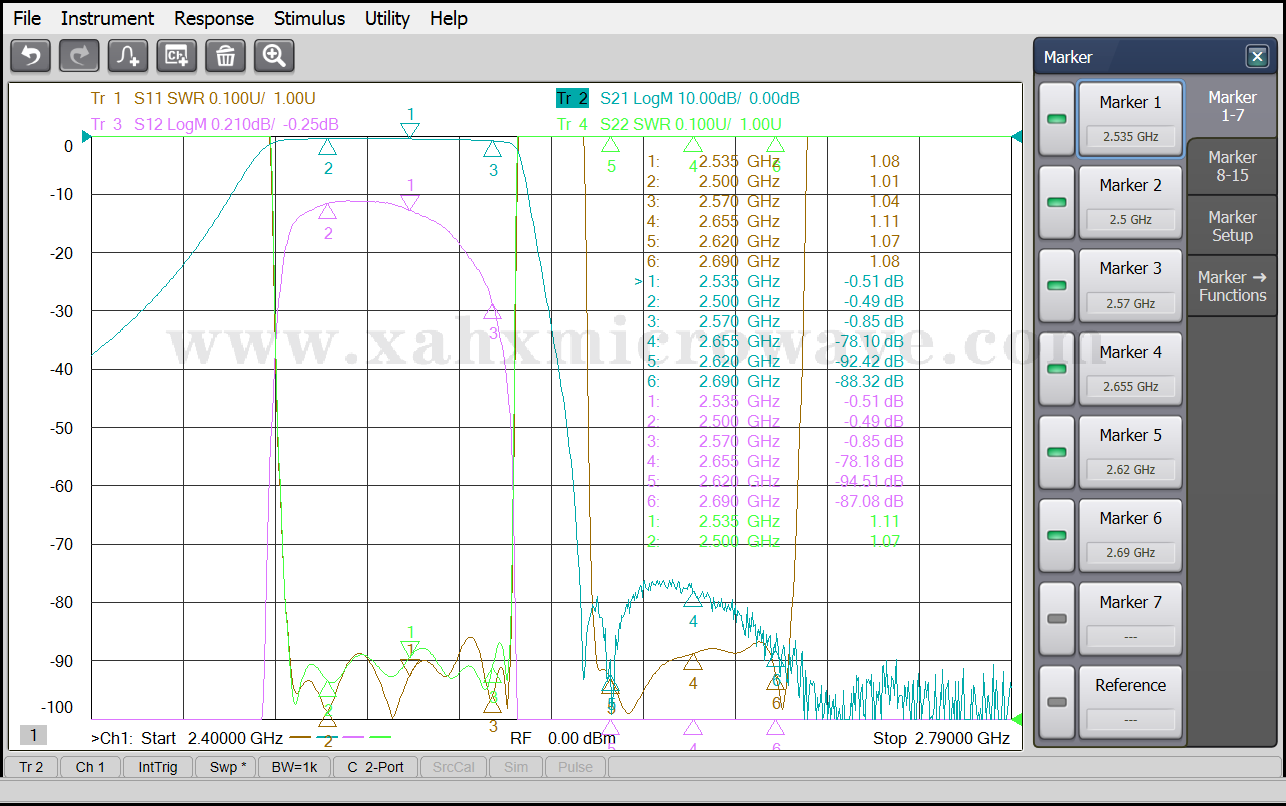

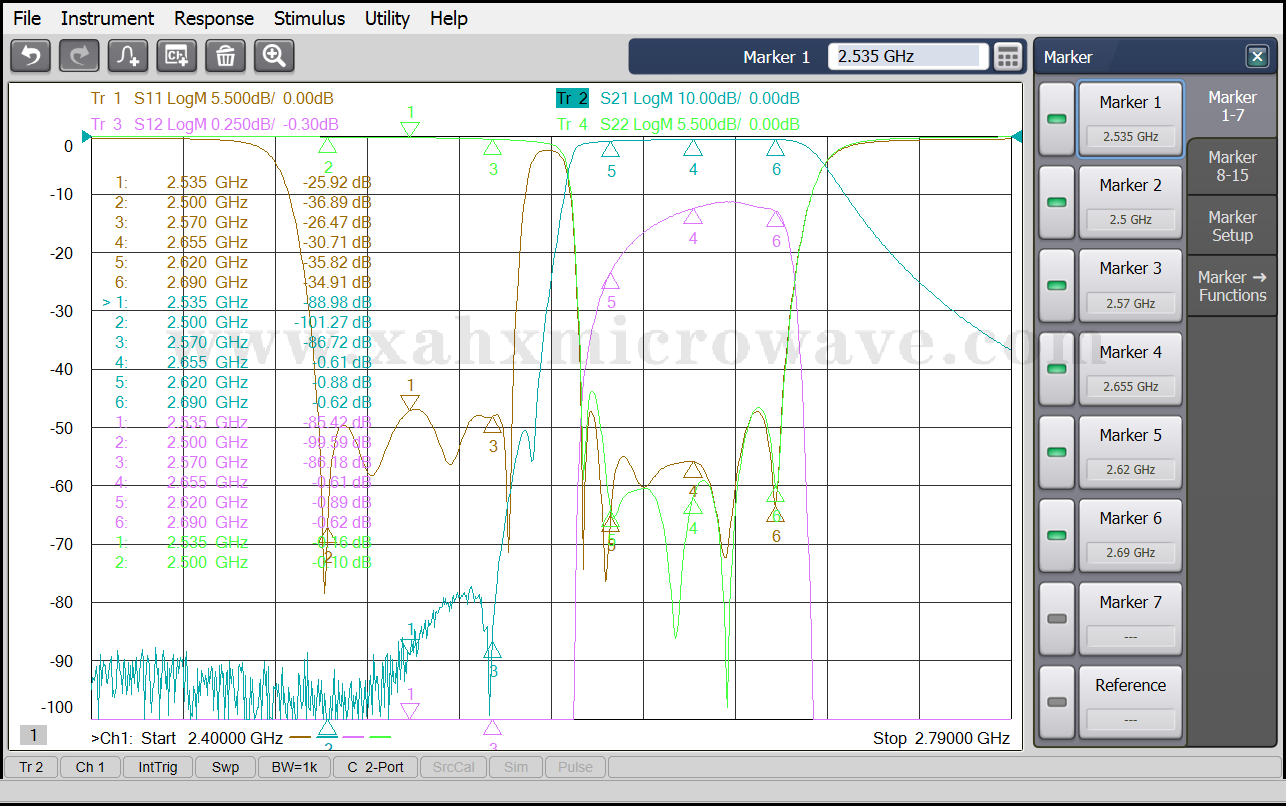

| Test Curve | |||
