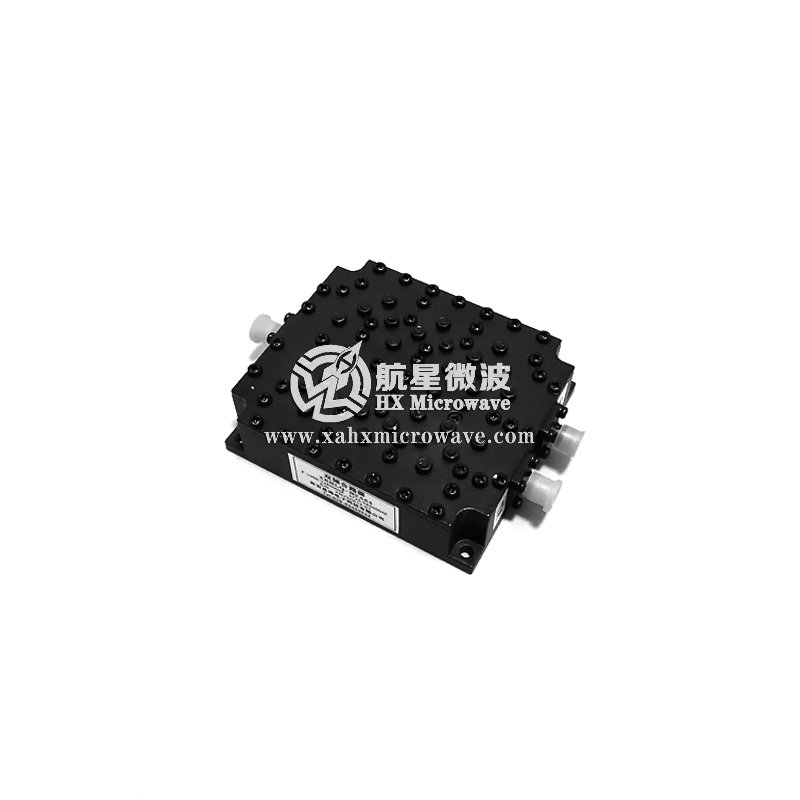

| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| 1 | Pass Band Frequency | 2400 ~ 2480MHz | 5725 ~ 5850MHz |
| 2 | Pass Band Insertion Loss | ≤1.5dB | ≤1.5dB |
| 3 | VSWR | ≤1.30:1 | ≤1.30:1 |
| 4 | Stop Band Attenuation | ≥50dB @ DC ~ 2350MHz | ≥50dB @ DC ~ 5625MHz |
| ≥50dB @2530 ~ 6000MHz | ≥50dB @5950 ~ 8000MHz | ||
| 5 | Impedance | 50 Ohms | |
| 6 | Power | 20W CW | |
| 7 | Connectors | SMA-Female | |
| 8 | Surface Finish | Painted Black | |
| 9 | Temperature Range | -20℃ ~ +60℃ | |
| 10 | Dimensions | 78*68*23mm | |
| 11 | Working Environment | Indoor | |
| Test Curve | |||
