Technical Data Sheet
S/N	Item	RX	TX
1	Center Frequency(F0)	2400MHz	4800MHz
2	Pass Band Frequency	2390 ~ 2410MHz	4780 ~ 4820MHz
3	Pass Band Insertion Loss	≤1.0dB	≤1.0dB
4	VSWR	≤1.30:1	≤1.30:1
5	Ports Isolation	≥60dB @4780 ~ 4820MHz	≥60dB@2390 ~ 2410MHz
6	Impedance	50 Ohms
7	Average Power	20W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-30℃ ~ +70℃
11	Dimensions	62*40*22mm
12	Working Environment	Indoor

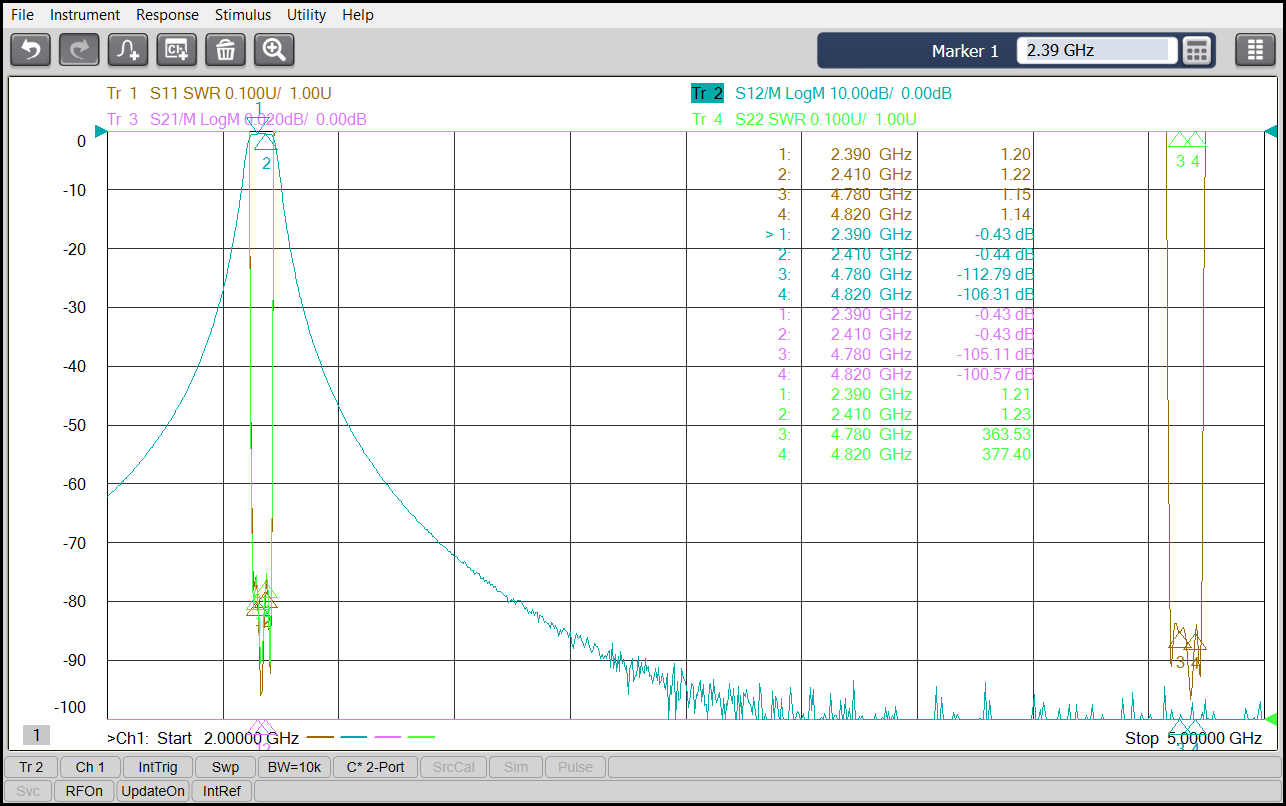

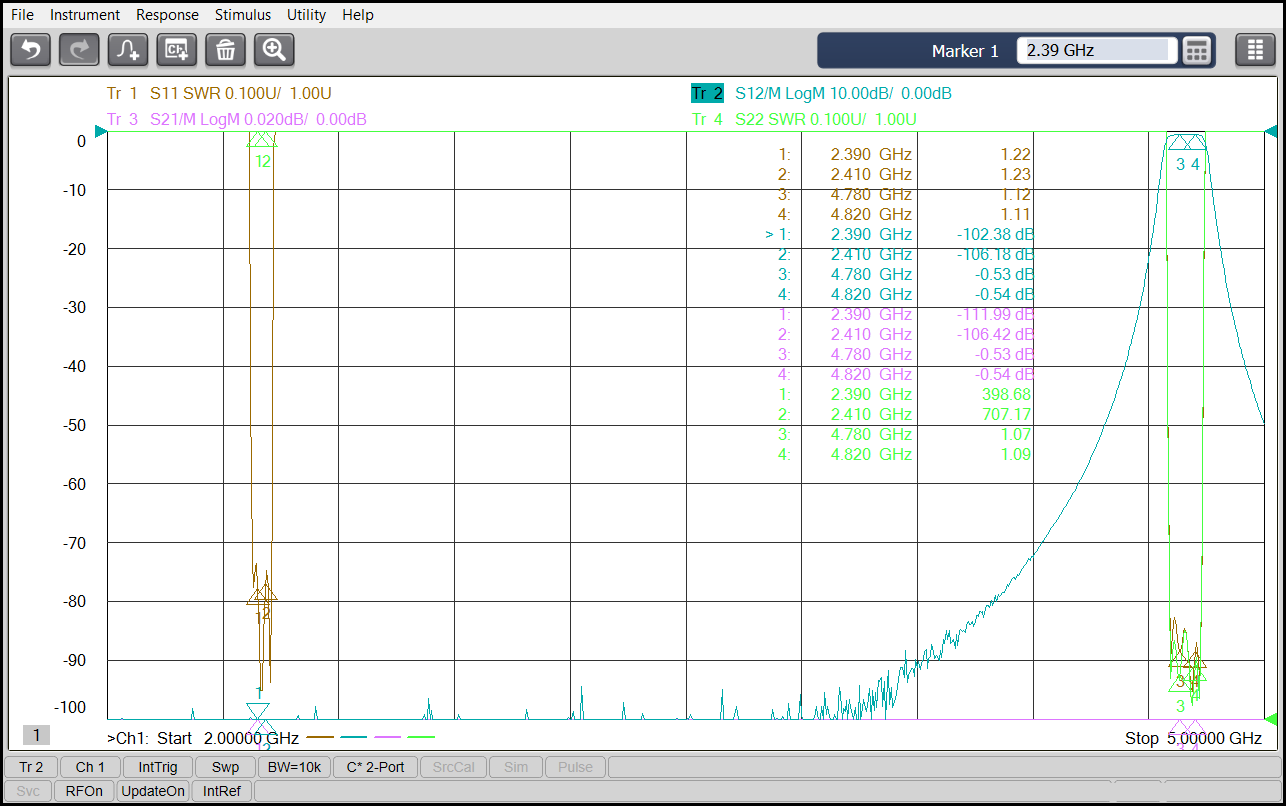

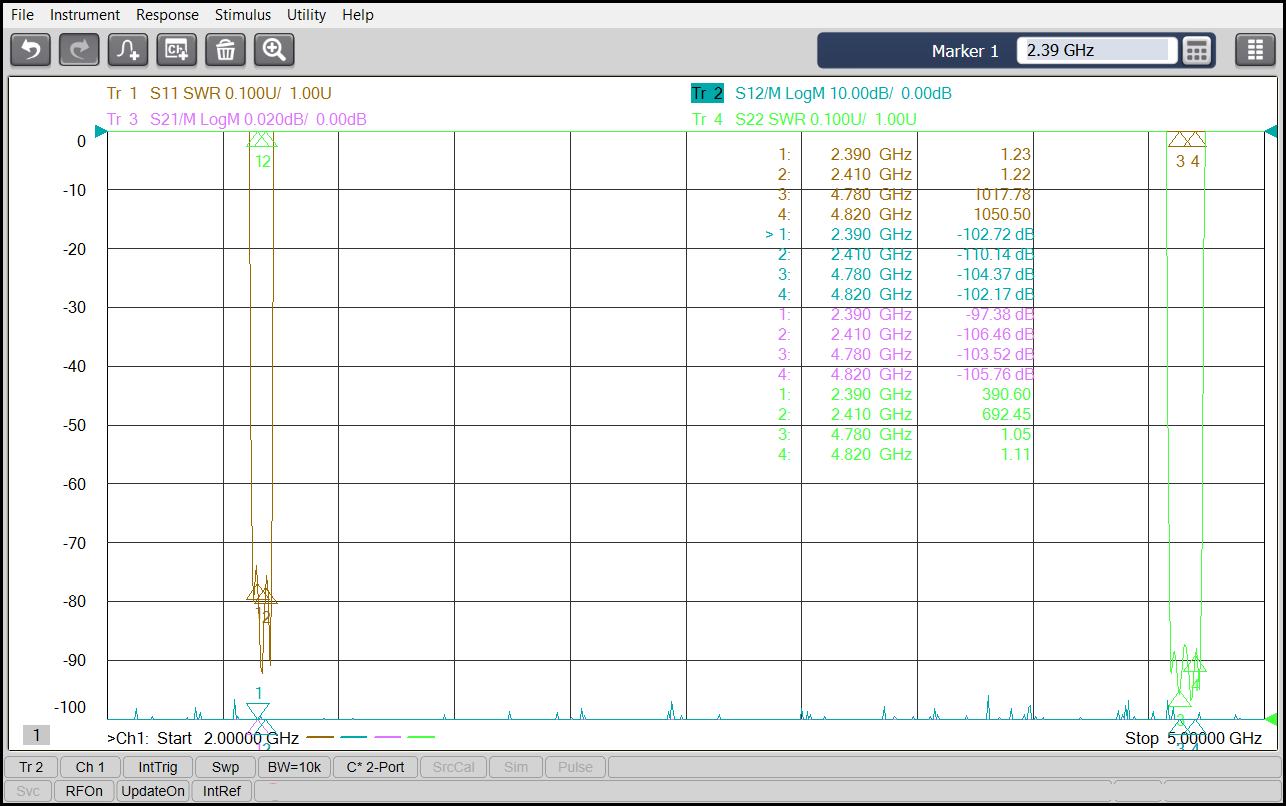

Test Curve
