| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| 1 | Pass Band Frequency | 2700 ~ 2900MHz | 2950 ~ 3300MHz |
| 2 | Pass Band Insertion Loss | ≤0.9dB | ≤0.9dB |
| 3 | Pass Band Ripple | ≤0.8dB | ≤0.8dB |
| 4 | Pass Band Return Loss | ≥18dB | ≥18dB |
| 5 | Stop Band Rejection | ≥70dB @DC ~ 2400MHz | ≥70dB @DC ~ 2550MHz |
| ≥70dB @3200 ~ 4300MHz | ≥70dB @3700 ~ 4300MHz | ||
| 6 | Ports Isolation | ≥50dB @2950 ~ 3300MHz | ≥50dB@2700 ~ 2900MHz |
| 7 | Impedance | 50 Ohms | |
| 8 | Average Power | 20W Max @（TX RX） 50W Max @（OUT） | |
| 9 | Connectors | SMA-Female | |
| 10 | Surface Finish | Painted Black | |
| 11 | Temperature Range | -40℃ ~ +85℃ | |
| 12 | Dimensions | 116*94*26mm | |
| 13 | Working Environment | Indoor | |

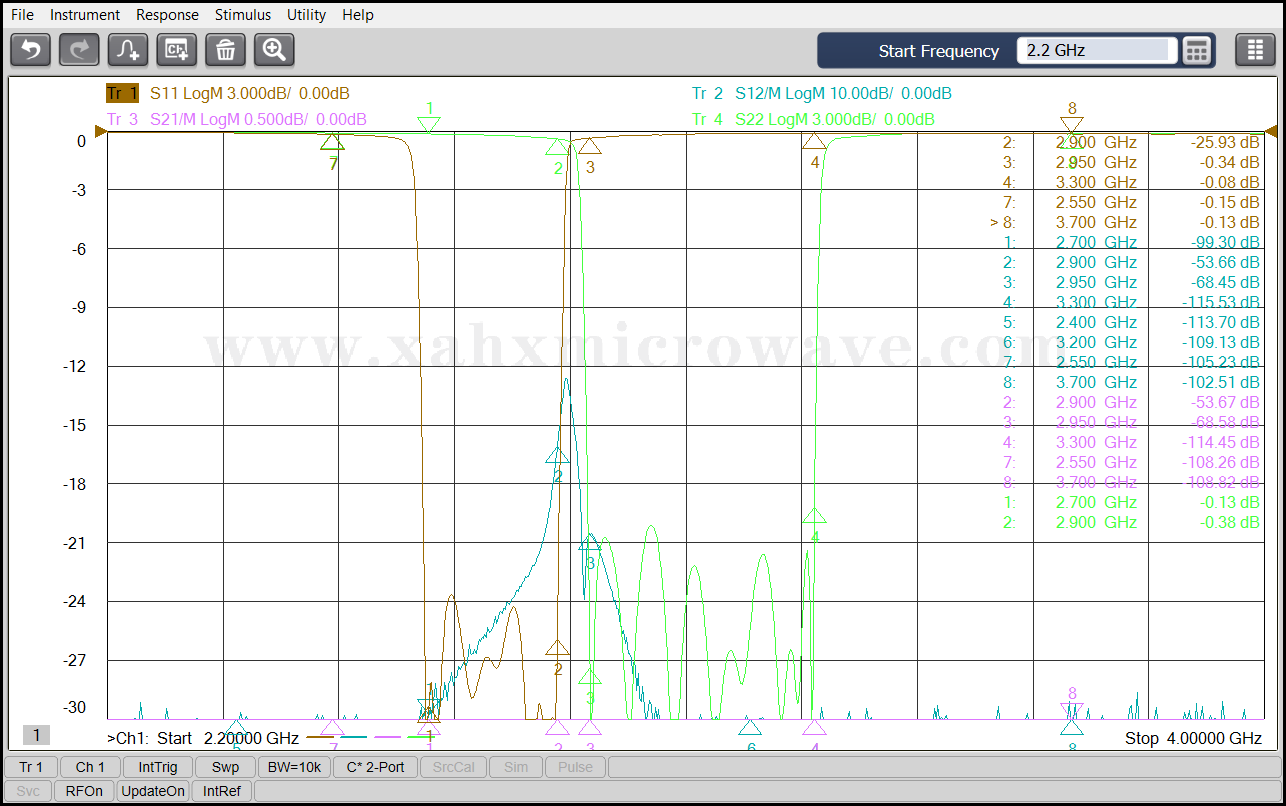

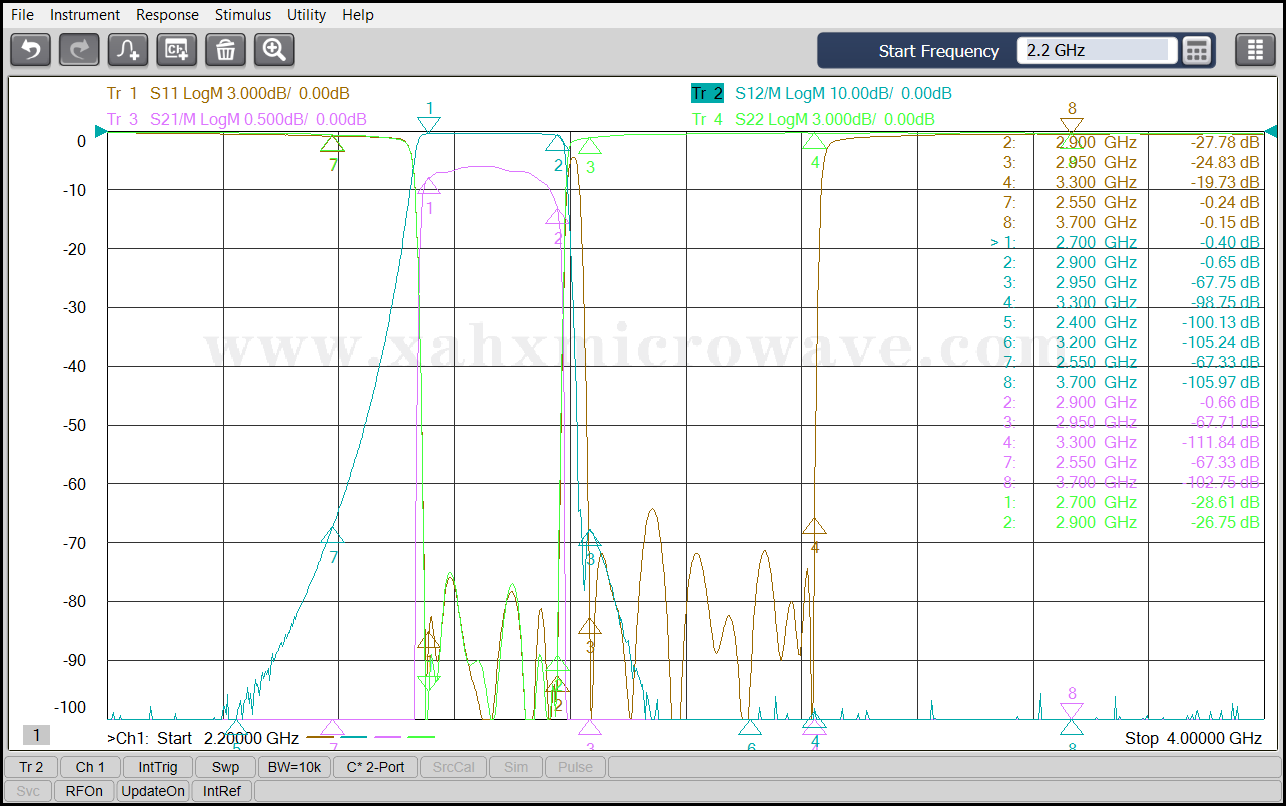

| Test Curve | |||
