| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Center Frequency(F0) | 1422.5MHz | 1477.5MHz |
| ● | Pass Band Frequency | 1400~ 1445MHz | 1455~ 1500MHz |
| ● | Pass Band Insertion Loss | ≤2.0dB | ≤2.0dB |
| ● | VSWR | ≤1.30:1 | ≤1.30:1 |
| ● | Stop Band Rejection | ≥40dB@1455~1500MHz | ≥40dB@1400~1445MHz |
| ≥60dB@DC~1350MHz | ≥60dB@DC~1350MHz | ||
| ≥60dB@1550~3000MHz | ≥60dB@1550~3000MHz | ||
| ● | Average Power | 10W Max. | |
| ● | Impedance | 50 Ohms | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -20℃ ~ +65℃ | |

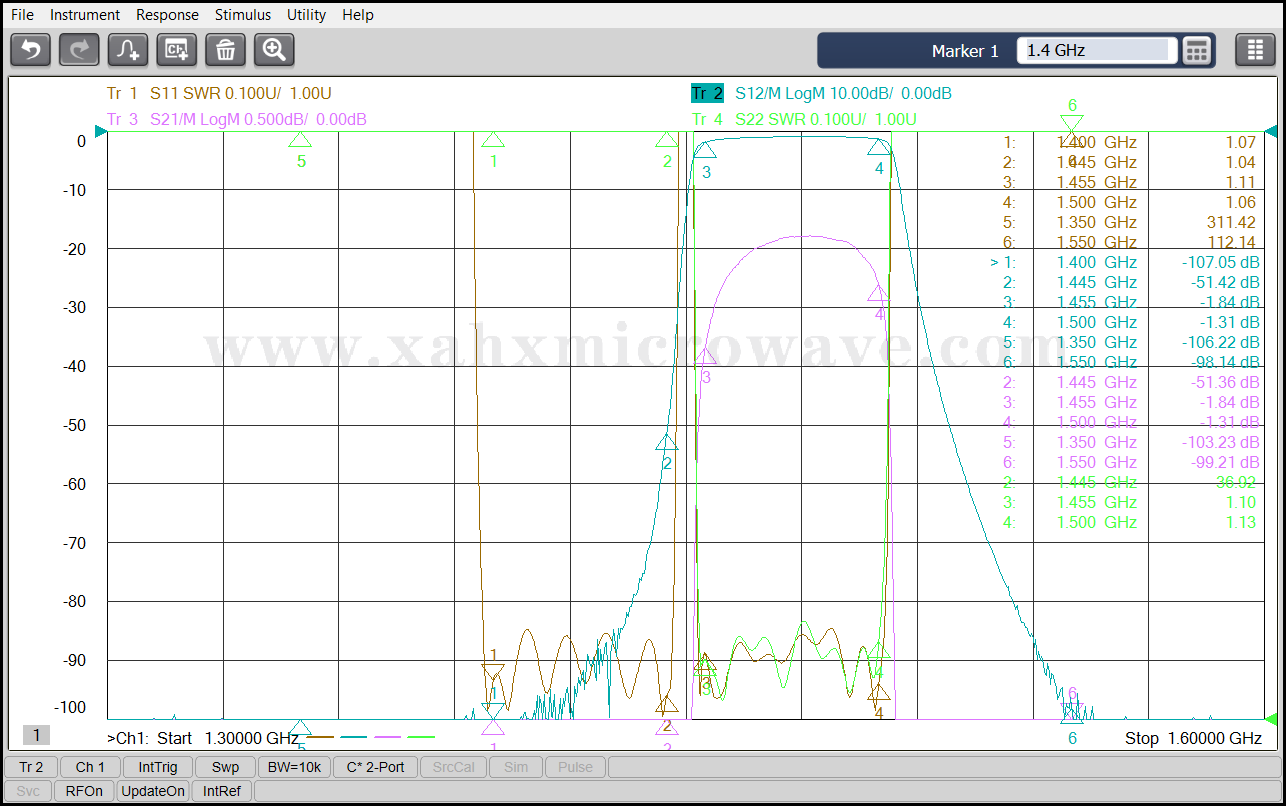

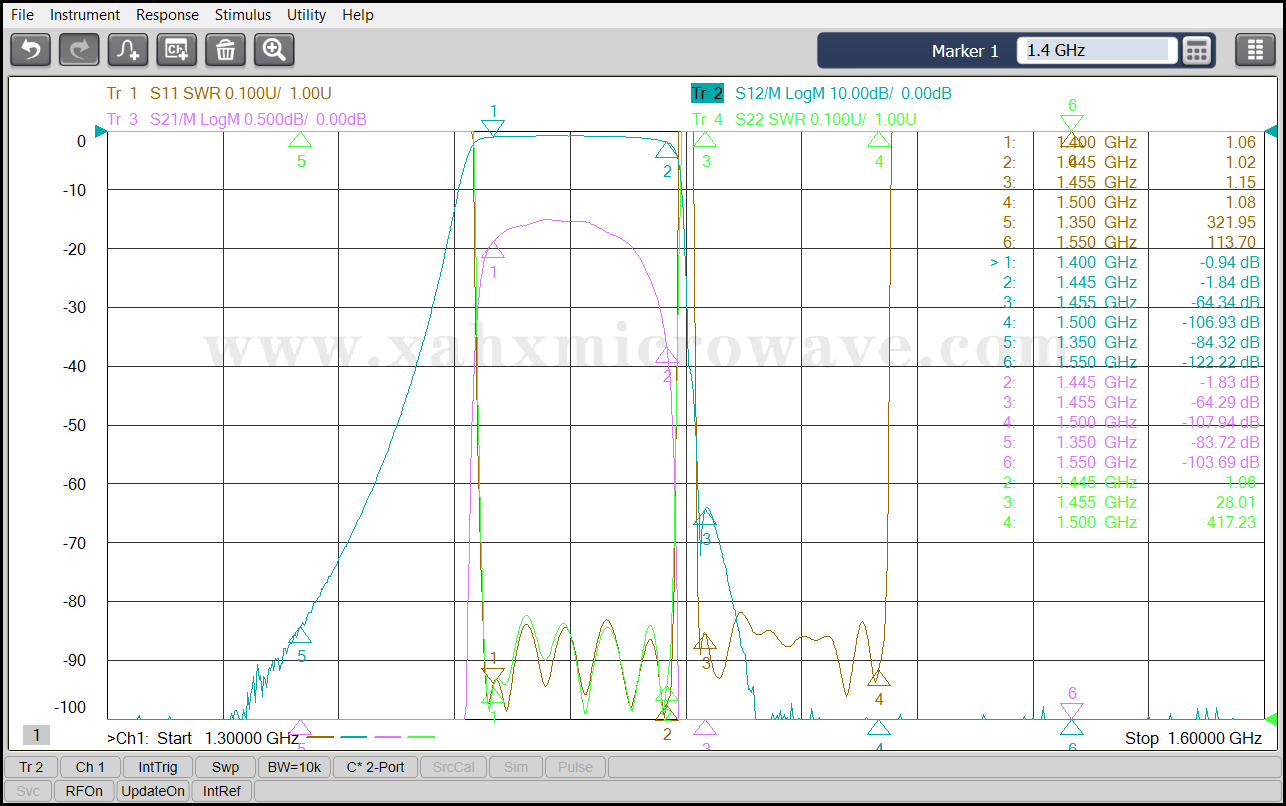

| Test Curve | |||
