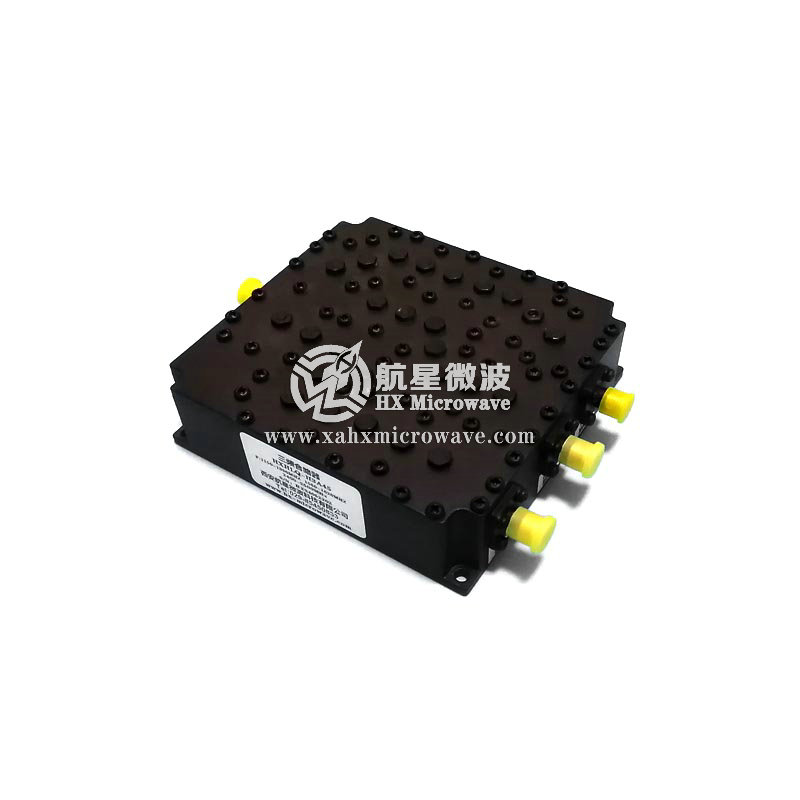

| Technical Data Sheet | ||||
| Serial | Parameters | P1 | P2 | P3 |
| 1 | Center Frequency(F0) | 1225MHz | 1610MHz | 2450MHz |
| 2 | Pass Band Frequency | 1150~ 1300MHz | 1560~ 1620MHz | 2400~ 2500MHz |
| 3 | Pass Band Insertion Loss | ≤1.5dB | ≤1.5dB | ≤1.5dB |
| 4 | Pass Band VSWR | ≤1.50:1 | ≤1.50:1 | ≤1.50:1 |
| 5 | Stop Band Rejection | ≥70dB@1560~1620MHz | ≥70dB@1150~1300MHz | ≥70dB@1150~1300MHz |
| ≥70dB@2400~ 2500MHz | ≥70dB@2400~ 2500MHz | ≥70dB@1560~1620MHz | ||
| 6 | Impedance | 50 Ohms | ||
| 7 | Power | 30W Max. | ||
| 8 | Connectors | SMA-Female | ||
| Test Curve | ||||
