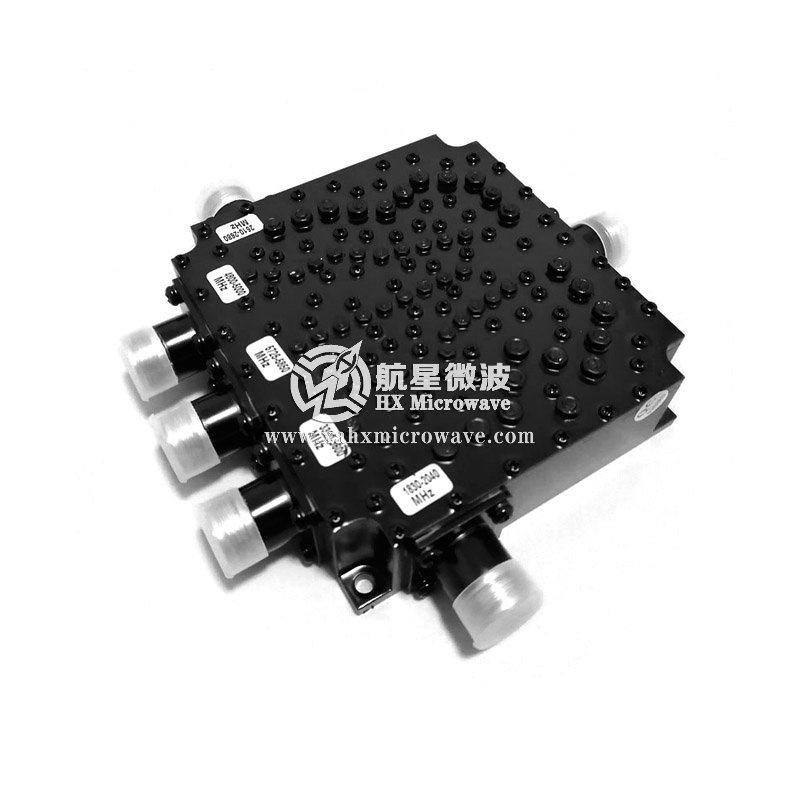

  • 1830-2040MHz/2510-2680MHz/3300-3600MHz/4800~5000MHz/5725-5850MHz Cavity five-frequency combiner
1830-2040MHz/2510-2680MHz/3300-3600MHz/4800~5000MHz/5725-5850MHz Cavity five-frequency combiner

1830-2040MHz/2510-2680MHz/3300-3600MHz/4800~5000MHz/5725-5850MHz Cavity five-frequency combiner

  • P/N:HXHLQ-H5A11
  • frequency:1830~2040MHz/2510~2680MHz/3300~3600MHz/4800~5000MHz/5725~5850MHz
  • isolation：≥70dB
  • Connectors：N-Female
  • Product description: ♦isolation of high，high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency Are available upon request all kin
  • PDF technical index download
Technical Data Sheet
P/N Parameters P1 P2 P3 P4 P5
1  Frequency Range 1830~2040MHz 2510~2680MHz 3300~3600MHz 4800~5000MHz 5725~5850MHz
2 Insertion Loss ≤0.8dB
3 Return Loss ≥12dB
4 Ports Isolation ≥70dB
5 Ports Impedance 50Ω
6 Power Handling 100W
7 Port Connectors N-Female
8 Temperature -20℃~+60℃
9 Surface Finish Painted Black
Test Curve
