Technical Data Sheet
●	Way	2
●	Frequency Range	DC～18.0GHz
●	Insertion Loss	≤6.0dB±1.5dB
●	VSWR	≤1.6:1
●	Amplitude Balance	≤±0.8dB
●	Phase Balance	≤8º
●	Power Handling	≤0.5W
●	Impedance	50 ohms
●	Connectors	SMA-Female
●	Surface Finish	Gush Arenaceous Guide Oxygen

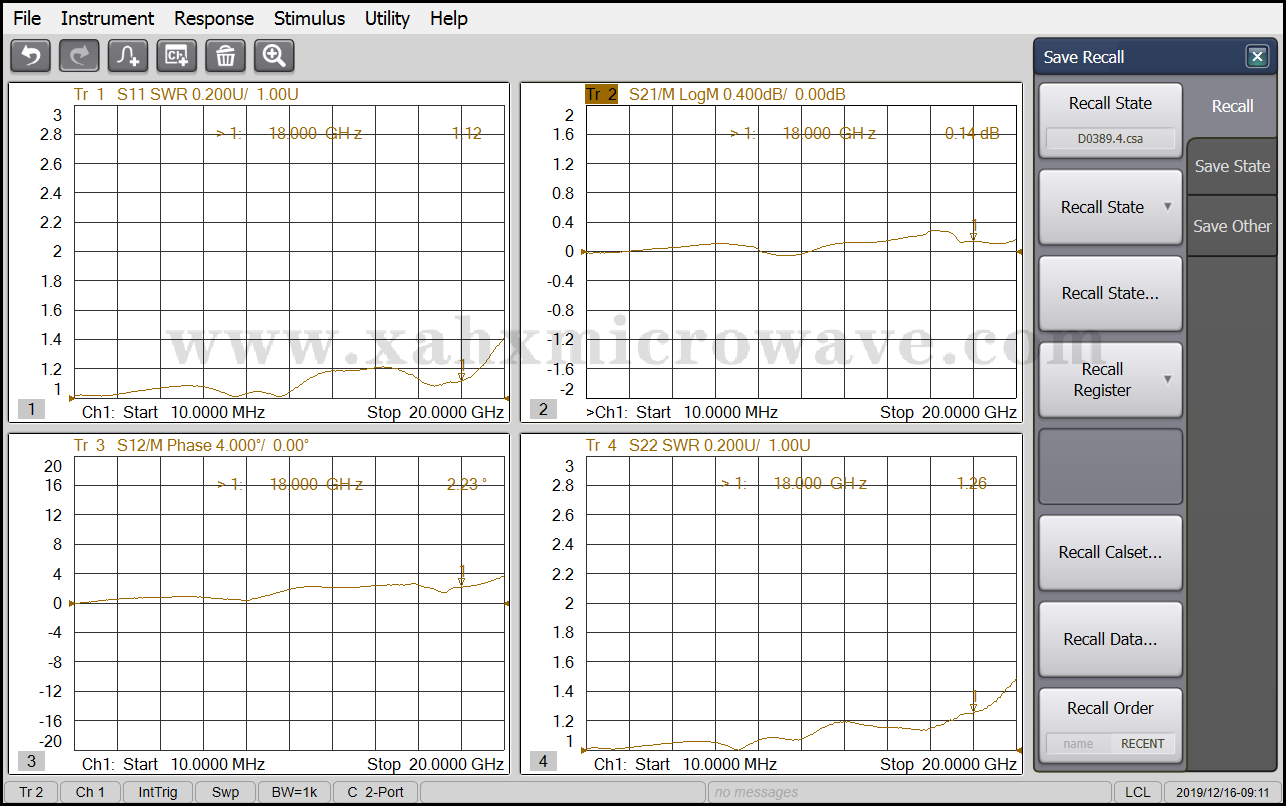

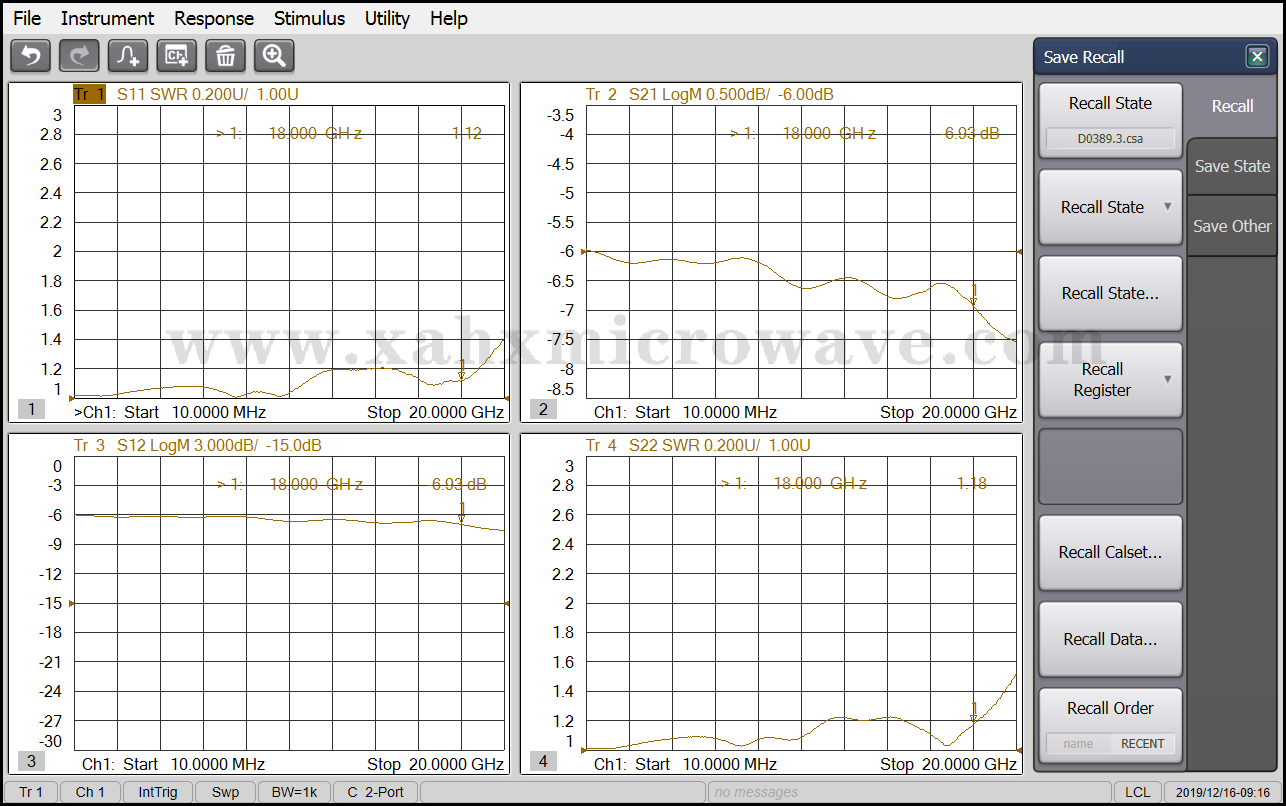

Test Curve
