Technical Data Sheet
●	Center Frequency(F0)	35GHz
●	Pass Band Frequency	25 ~ 45GHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.46dB
●	Pass Band Return Loss	≥15dB (Typical: ≥17dB)
●	Stop Band Rejection	≥80dB @ DC ~ 22.4GHz	≥50dB @ 47 ~ 48.67GHz
		≥50dB @ 22.4 ~ 23.52GHz	≥80dB @ 48.67 ~ 52GHz
			≥10dB @ 52 ~ 56GHz
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	2.4mm(Q)-Female
●	Surface Finish	Painted Black

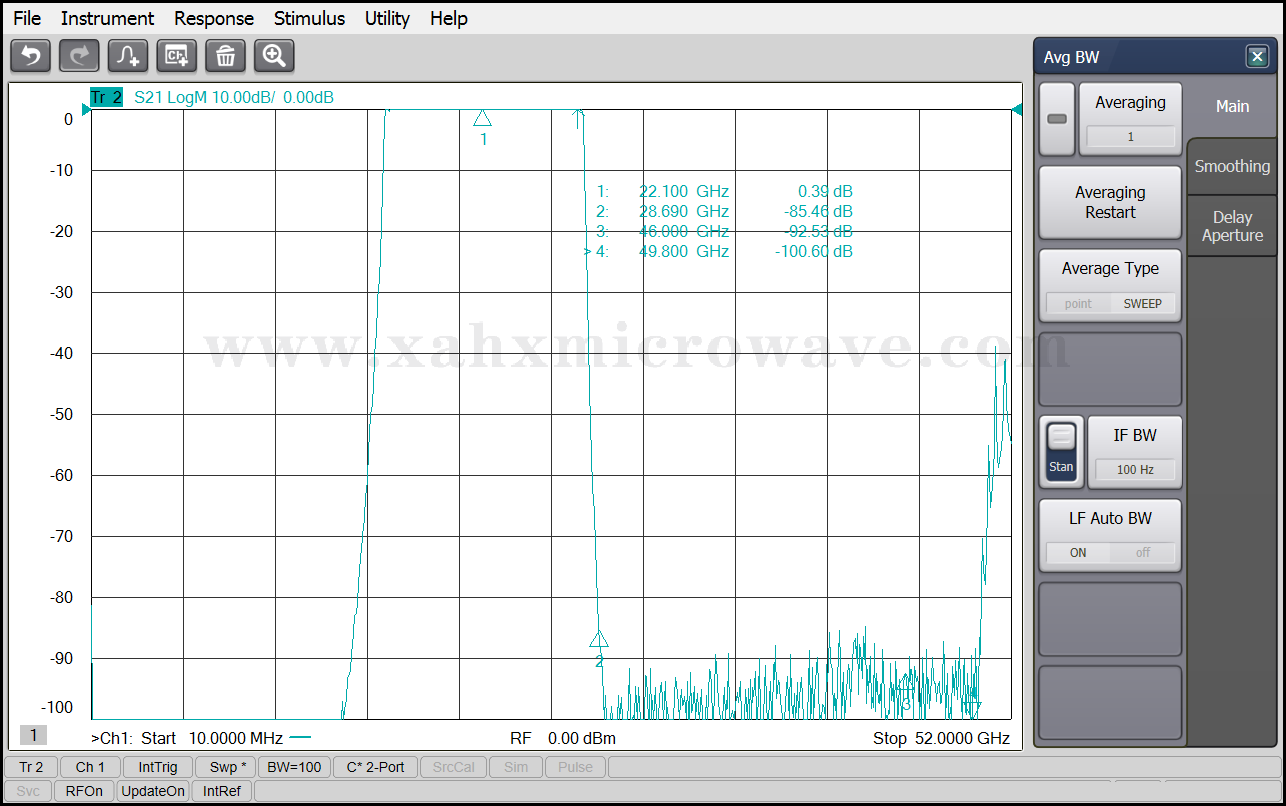

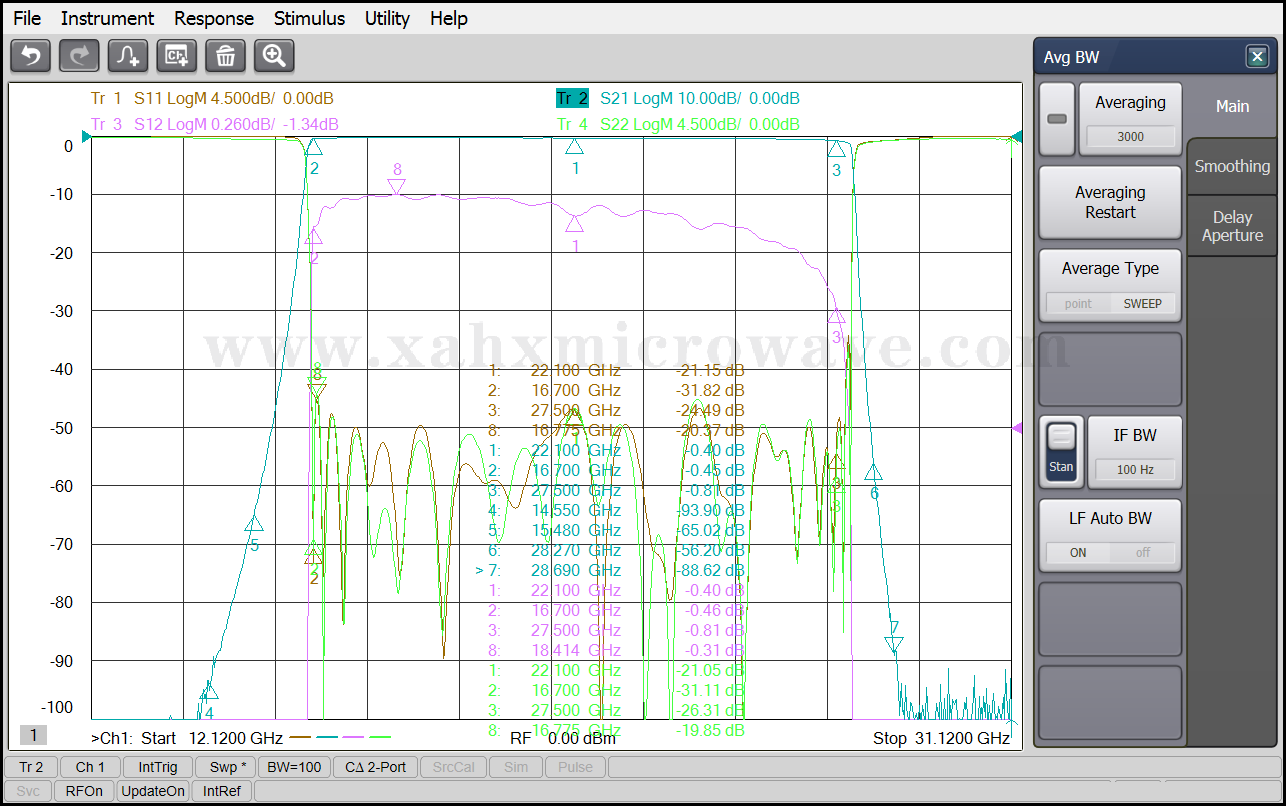

Test Curve
