| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 20GHz | |
| ● | Pass Band Frequency | 17 ~ 23GHz | |
| ● | Pass Band Insertion Loss | ≤1.45dB | |
| ● | Pass Band Ripple | ≤0.75dB | |
| ● | Pass Band Return Loss | ≥18dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 15.66GHz | ≥59dB @ 23.7 ~ 23.92GHz |
| ≥40dB @ 15.66 ~ 16.3GHz | ≥80dB @ 23.92 ~ 45GHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | 2.92mm(K)-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

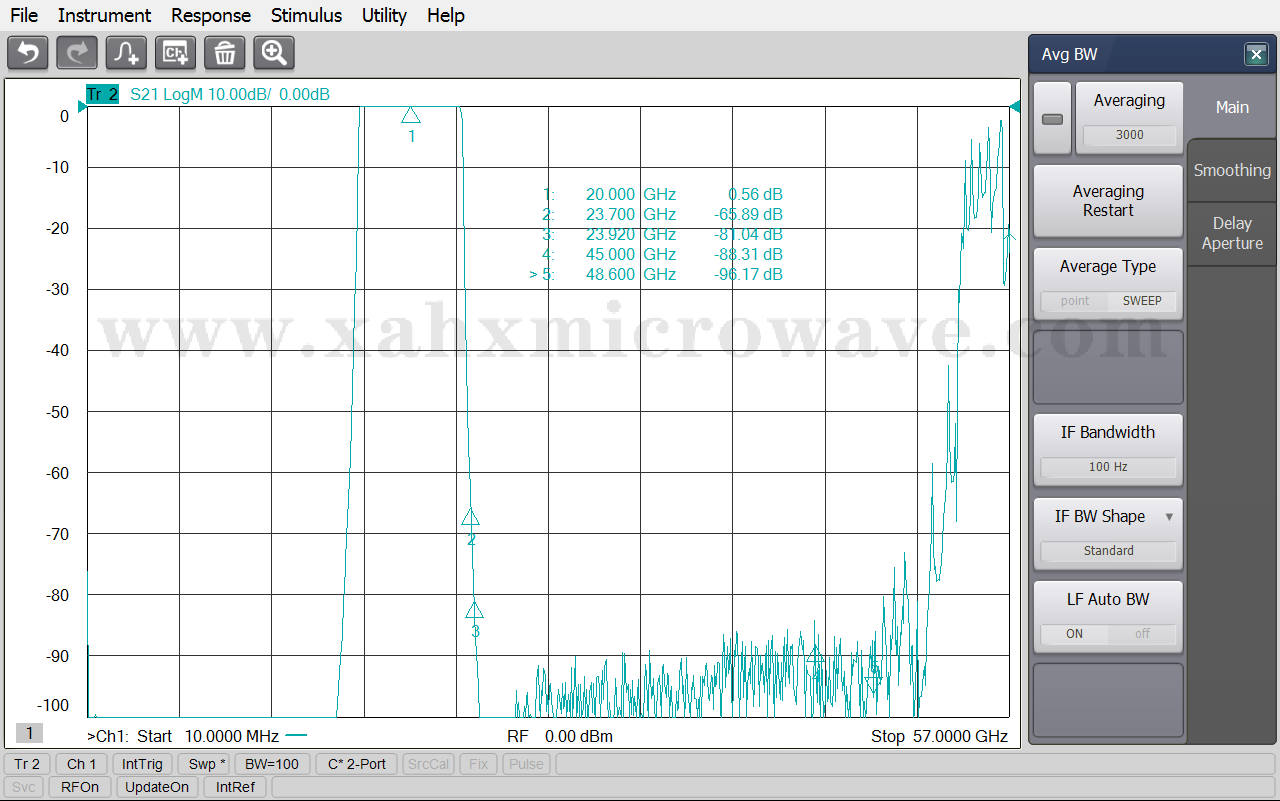

| Test Curve | |||
